Field wiring and signal termination

You can use the following MCC screw terminal boards and relay racks with the PCI-DIO24H board using the
C37FF-x or C37FFS-x cable:
! SCB-37 — 37-conductor, shielded signal connection/screw terminal box that provides two independent 37-
pin connections. Details on this product are available at
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=196&pf_id=1166.
! CIO-MINI37 — 4 x 4, 37-pin screw terminal board. Details on this product are available at
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=102&pf_id=255.
! CIO-MINI37-VERT — 37-pin screw terminal accessory with vertical 37-pin male D connector. Details on
this product are available on our web site at
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=102&pf_id=256.
! CIO-SPADE50 — 16" X 4" termination panel which mates with both 37-pin and 50-pin connectors.
Details on this product are available on our web site at www.mccdaq.com/pdfs/screw.pdf.
! SSR-RACK24 — 24-position solid state relay rack. Details on this product are available on our web site at
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=122&pf_id=1193.
! SSR-RACK08 — Eight-channel solid state relay rack. Details on this product are available on our web site
at www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=122&pf_id=620
! CIO-ERB08 — Eight-channel electromechanical relay accessory for digital I/O boards. Details on this
product are available on our web site at
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=123&pf_id=241.
! CIO-SERB08 — Eight Form C and ten socketed relay accessory for digital I/O boards. Details on this
product are available on our web site at
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=123&pf_id=680.
!
CIO-ERB24 — 24-channel electromechanical relay accessory for digital I/O boards. Details on this
product are available on our web site at
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=123&pf_id=241.
identifies pin # 1
20
37

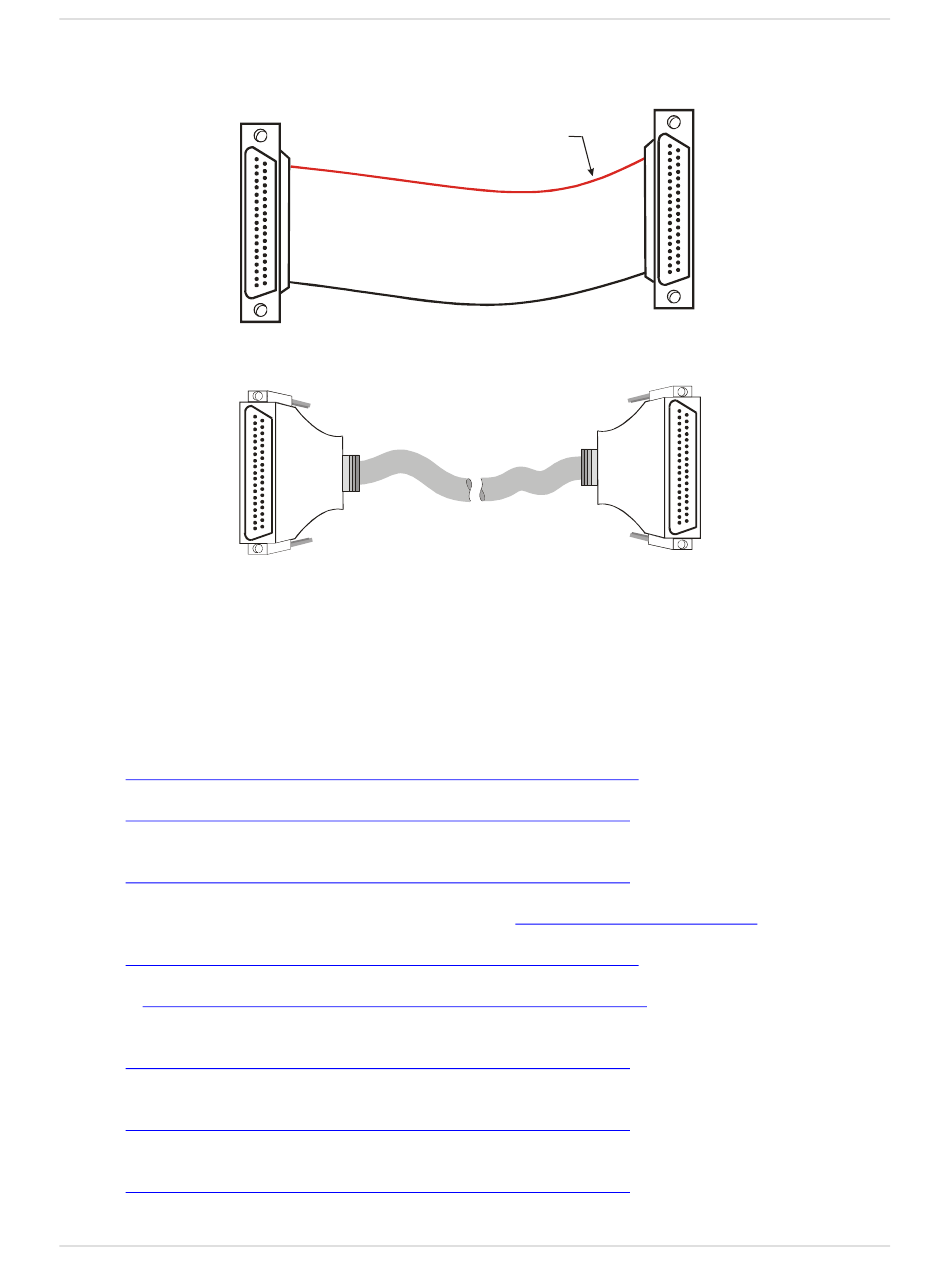

Figure 2-2. C37FF-x cable
20
37
Figure 2-3. C37FFS-x cable
The red stripe
1
19
2-4
