CIO-DDA06/Jr User's Guide
All the digital outputs inputs on the CIO-DDA06/Jr connector are TTL level. Before connecting external
devices, review the specifications in this manual to avoid damage to the CIO-DDA06/Jr.

Cabling

19
1
19
Field wiring, signal termination, and conditioning
You can use the following cabling, screw termination, and signal conditioning products with the CIO-
DDA06/Jr.
DFCON37 – Connector kit that includes a 37-pin female D-connector, D-shell, 37 crimp pins, and cable
termination kit to construct your own cable. Details on this product are available on our web site at
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=103&pf_id=304.
CIO-MINI37 – 37-pin screw terminal board. Details on this product are available at
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=102&pf_id=255.
CIO-TERMINAL – 37-pin screw terminal board with on-board prototyping area. Details on this product
are available on our web site at www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=102&pf_id=282.
CIO-SPADE50 — 16" X 4" termination panel which mates with both 37-pin and 50-pin connectors.
Details on this product are available on our web site at
SCB-37 – 37-conductor, shielded signal connection/screw terminal box. Details on this product are
available on our web site at www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=196&pf_id=1166.
SSR-RACK24 – 24-channel, solid-state relay mounting rack for digital signal conditioning. Details on this
product are available on our web site at
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=122&pf_id=1193.
ENC-MINI37– Enclosure for the MINI37. Details on this product are available at
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=98&pf_id=318.
1
20
37

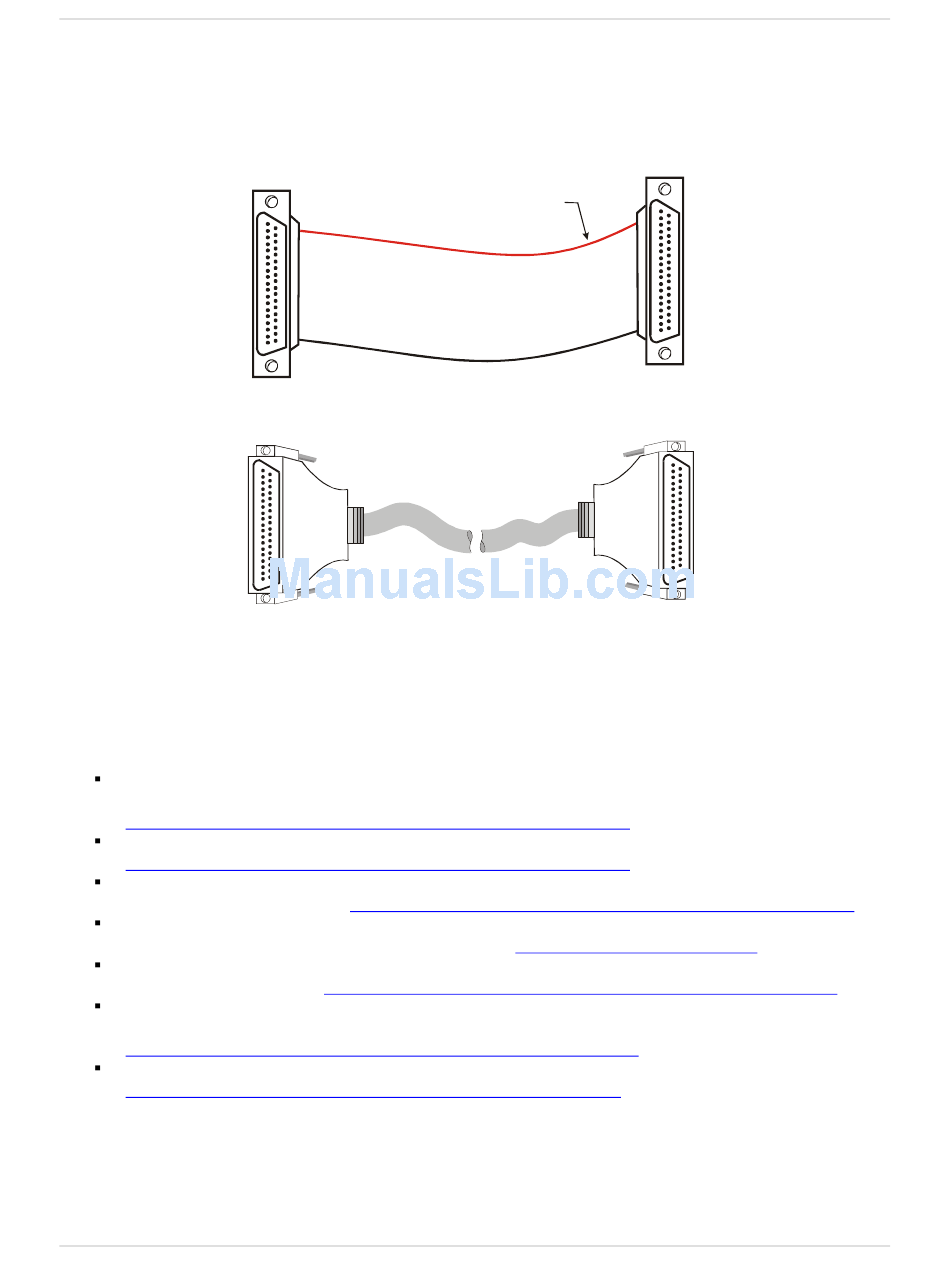

Figure 5. C37FF-x cable
20
37
Figure 6. C37FFS-x cable
The red stripe
1
identifies pin # 1
19
www.mccdaq.com/pdfs/screw.pdf
13
Installing the CIO-DDA06/Jr
20
37
1
20
37
19
