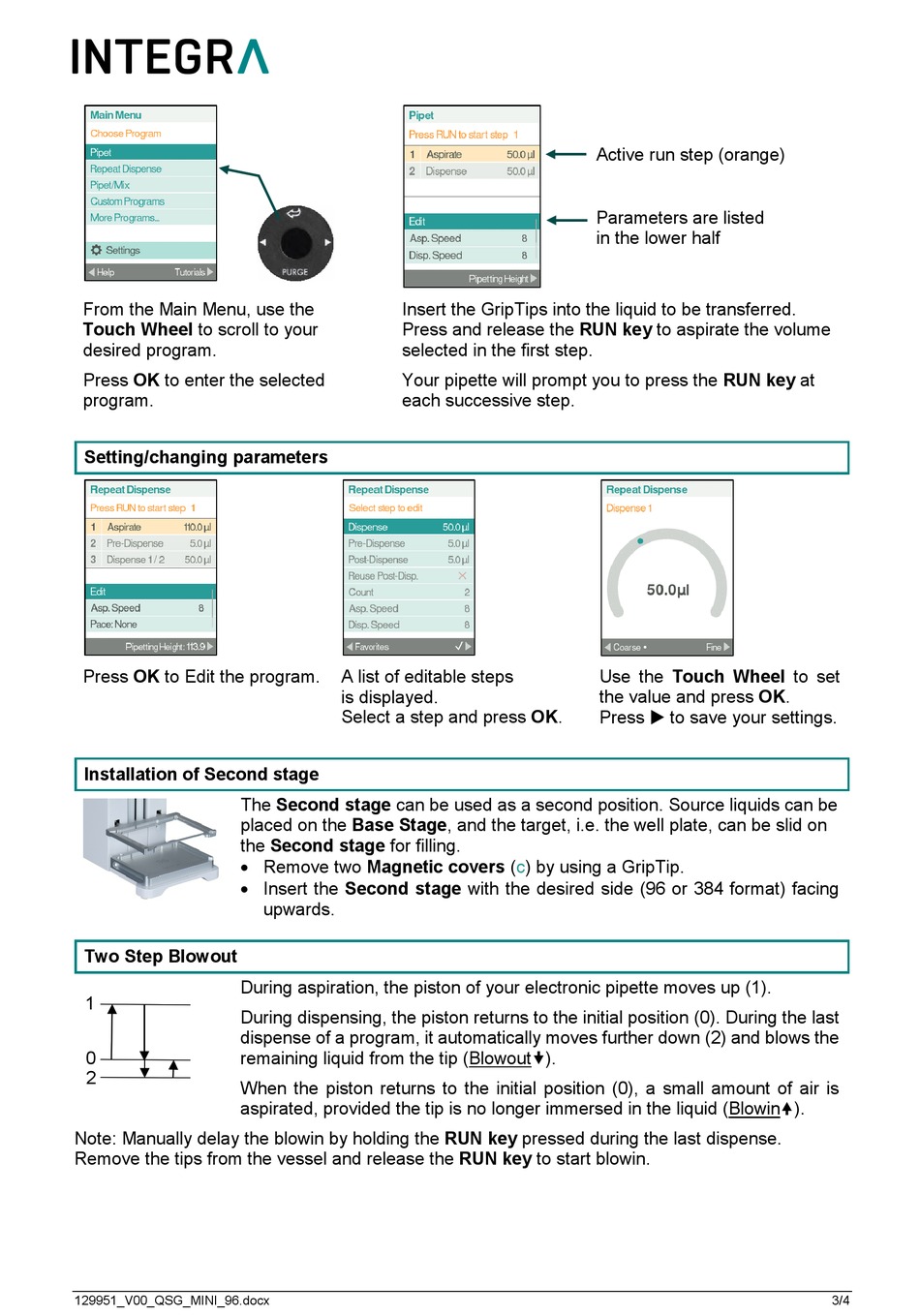

Setting/Changing Parameters; Installation Of Second Stage; Two Step Blowout - Integra MINI 96 Quick Start Manual

From the Main Menu, use the
Touch Wheel to scroll to your
desired program.
Press OK to enter the selected
program.

Setting/changing parameters

Press OK to Edit the program.

Installation of Second stage

The Second stage can be used as a second position. Source liquids can be
placed on the Base Stage, and the target, i.e. the well plate, can be slid on
the Second stage for filling.
• Remove two Magnetic covers (c) by using a GripTip.
• Insert the Second stage with the desired side (96 or 384 format) facing

Two Step Blowout

During aspiration, the piston of your electronic pipette moves up (1).
1
During dispensing, the piston returns to the initial position (0). During the last
dispense of a program, it automatically moves further down (2) and blows the
0 remaining liquid from the tip (Blowout).
2
When the piston returns to the initial position (0), a small amount of air is
aspirated, provided the tip is no longer immersed in the liquid (Blowin).
Note: Manually delay the blowin by holding the RUN key pressed during the last dispense.
Remove the tips from the vessel and release the RUN key to start blowin.
129951_V00_QSG_MINI_96.docx
Insert the GripTips into the liquid to be transferred.
Press and release the RUN key to aspirate the volume
selected in the first step.
Your pipette will prompt you to press the RUN key at
each successive step.
A list of editable steps
is displayed.
Select a step and press OK.
upwards.
Active run step (orange)
Parameters are listed
in the lower half
Use the Touch Wheel to set
the value and press OK.
Press  to save your settings.
3/4
