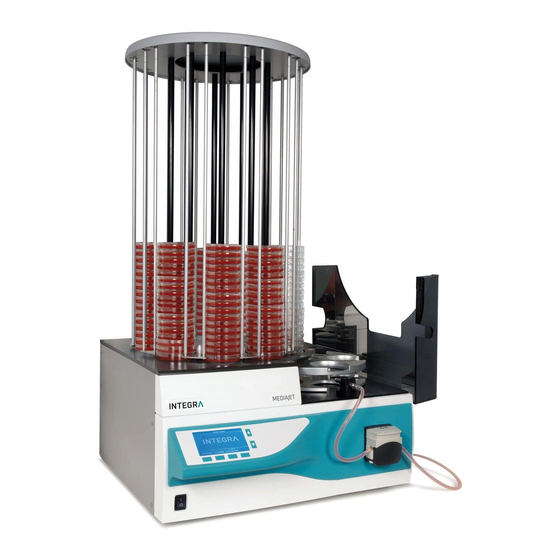

MEDIAJET – Connecton Kit for inkjet printer LINX
(sidewall print)
Instructions V04 for sidewall print installation
Document Change History
Vers.
Status:
V00
Released 28.02.2013 Document issued
V01
Released 11.02.2015 Addition of new printer type (LINX 5900)
V02
Released 02.06.2015 Picture exchange, compatibility
V03
Released 12.10.2018 LINX 89xx added, terms unified
V04
Released 10.05.2019 Adaptions for printhead MK11.
Table of Contents
1

Introduction ------------------------------------------------------------------------------------------------------ 1

2

Required Accessories and Documentation ----------------------------------------------------------- 1

3
Mount Printhead Onto Mediajet ------------------------------------------------------------------------- 2
4
Imprint ------------------------------------------------------------------------------------------------------------- 4
1
Introduction
This document describes installation and connection of the LINX inkjet printhead (sidewall print) to
the MEDIAJET (MJ) dish filler. The following LINX types are supported:
•
LINX 4900 (discontinued), printhead MK7
LINX 5900 (discontinued), printhead MK7
•
LINX CJ400 (discontinued), printhead MK11
•
LINX 89xx, printhead MK11
•
Before starting with the installation, please carefully read MJ and LINX operating instructions. Please
note that MJ units manufactured before March 2013 (serial numbers below 10313569/11313248)
are not compatible with LINX inkjet printers for sidewall print (MJ w/o base plate rotor cutout/recess).
2
Required Accessories and Documentation
The components listed below are required to connect the inkjet printer to MEDIAJET.
Components available from INTEGRA Biosciences:
103981_V04_OI_Connection_Kit_LINX_sidewall.docx
Date:
Change:
1
6
MEDIAJET Dish Filler (Part no.
103005/103006/113000/113001/113002)
MJ Operating Instructions
(Part no. 103950)

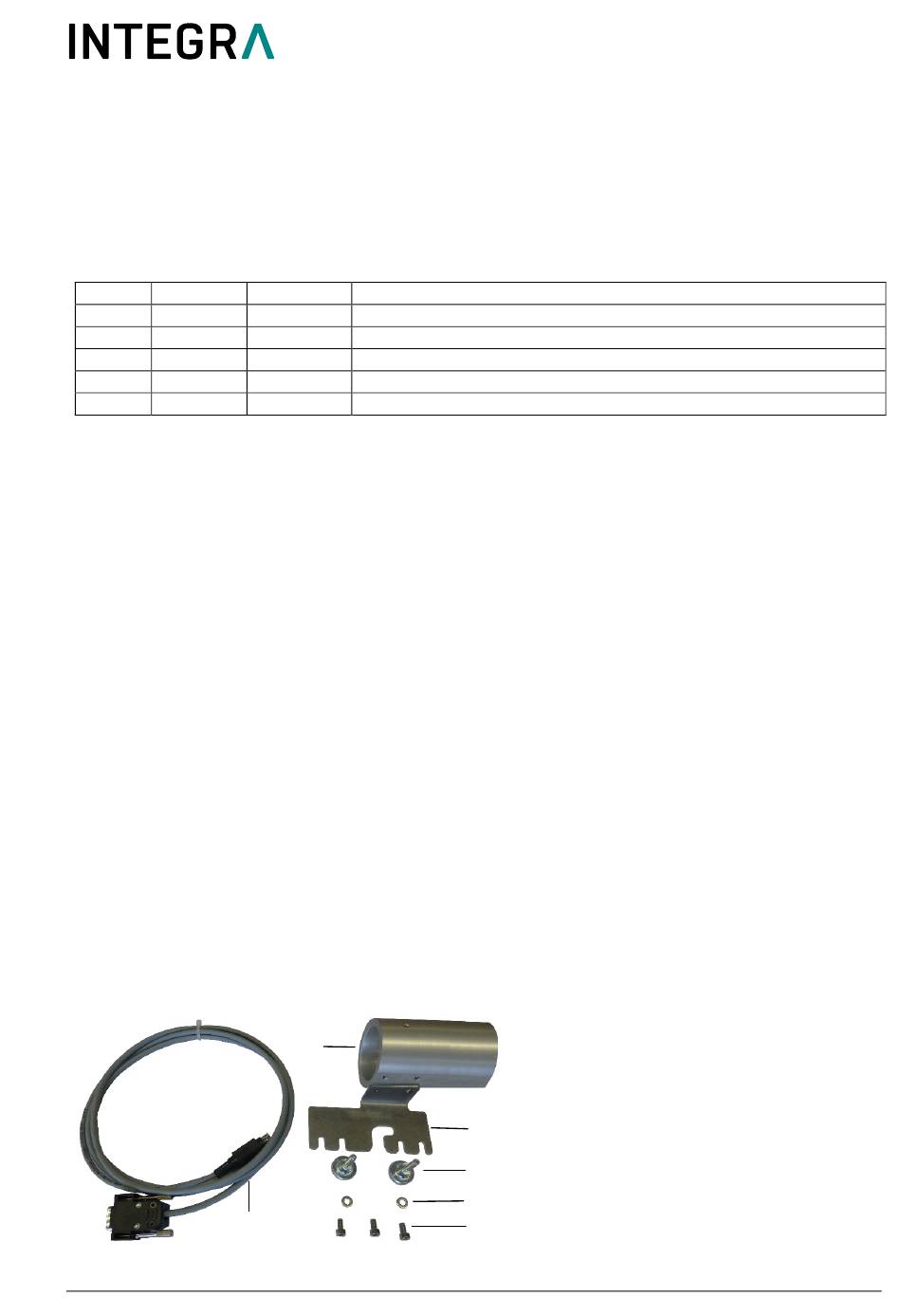

Connection kit (Part no. 113845) for LINX
(sidewall print), consisting of:
2
1 Printhead retainer
2 Mounting bracket (Mb)
3
3 Knurled head screw M5x16 (2x)
4 Washer M6 (2x)
4
5 Allen screw M4x8 (3x)
5
6 Interface cable MJ to LINX (113853)
This instructions for installation.
1/4
13. May 2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MEDIAJET and is the answer not in the manual?

Questions and answers

Related Manuals for Integra MEDIAJET

Summary of Contents for Integra MEDIAJET

  • Page 1 LINX inkjet printers for sidewall print (MJ w/o base plate rotor cutout/recess). Required Accessories and Documentation The components listed below are required to connect the inkjet printer to MEDIAJET. Components available from INTEGRA Biosciences: MEDIAJET Dish Filler (Part no.
  • Page 2 (1) and mount the Mounting bracket (2) on the Printhead retainer (1) with two Allen screws M4x8 (5). Fix the Mounting bracket (2) with the printhead retainer onto the MEDIAJET using the two knurled head screws (3). 103981_V04_OI_Connection_Kit_LINX_sidewall.docx 13. May 2019...
  • Page 3 90 mm Petri dishes or use the posterior slots (red arrows) when printing on 60 mm Petri dishes to fix the Mounting bracket (2) onto the MEDIAJET. LINX 4900/5900, printhead MK7: Insert the printhead into the Printhead retainer and align the screw (1) of the printhead with the furthest notch (2) of the retainer.
  • Page 4 Imprint © 2019 INTEGRA Biosciences AG All rights relating to this documentation reserved. INTEGRA Biosciences AG especially reserves the rights of duplication, processing, translation and display format. Any reproduction of parts or the entire documentation, or storage thereof on electronic media, or processing or dissemination thereof, requires the prior written consent of INTEGRA Biosciences AG.
