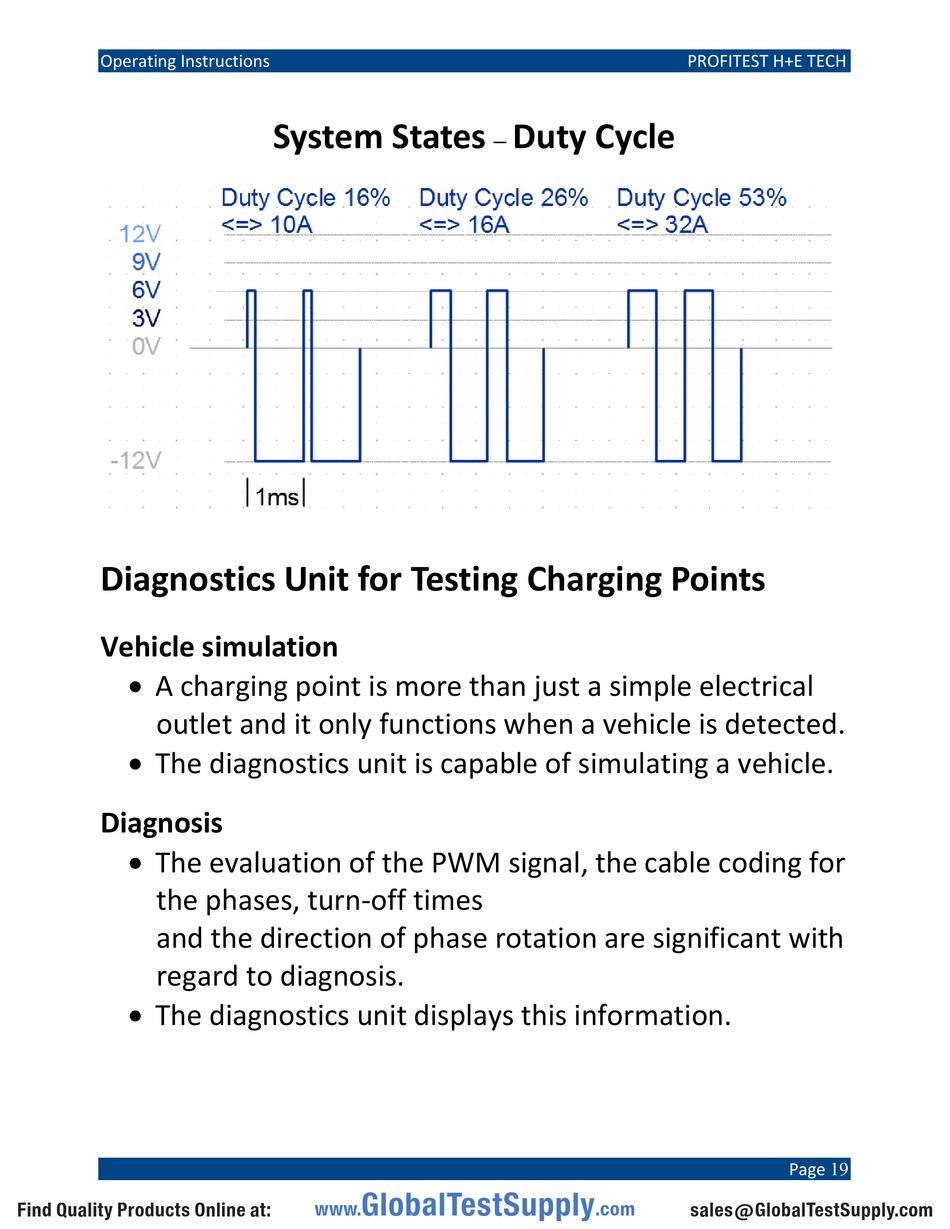

Operating Instructions
Diagnostics Unit for Testing Charging Points
Vehicle simulation
 A charging point is more than just a simple electrical
outlet and it only functions when a vehicle is detected.
 The diagnostics unit is capable of simulating a vehicle.
Diagnosis
 The evaluation of the PWM signal, the cable coding for
the phases, turn-off times
and the direction of phase rotation are significant with
regard to diagnosis.
 The diagnostics unit displays this information.
Find Quality Products Online at:
System States
GlobalTestSupply
www.
Duty Cycle
–
.com
PROFITEST H+E TECH
