Assembly Preparation; Assembly Instructions; Mounting The Support Legs To The Cabinet Base; Securing The Control Panel To Front Support Legs - Pit Boss BLUE BLAZING 3 Series Assembly And Operation Manual

Parts are located throughout the shipping carton, including underneath the smoker. Inspect the smoker, parts, and hardware
blister pack after removing from the protective shipping carton. Discard all packaging materials from inside and outside of the
smoker before assembly, then review and inspect all parts by referencing the parts list. If any part is missing or damaged, do
not attempt to assemble. Shipping damage is not covered under warranty. Contact your dealer or Pit Boss® Customer Service for
parts: Monday through Sunday, 4am - 8pm PST (EN/FR/ES).
service@pitboss-grills.com | Toll-Free: 1-877-303-3134 | Toll-Free Fax: 1-877-303-3135
IMPORTANT: To ease installation, using two people is helpful (but not necessary) when assembling this unit.
Tools required for assembly: screwdriver and level. Tools not included.
IMPORTANT: It is advised to read each step entirely before starting assembly on instructions. Do not tighten screws
completely until all screws for that step have been installed, or unless otherwise mentioned.

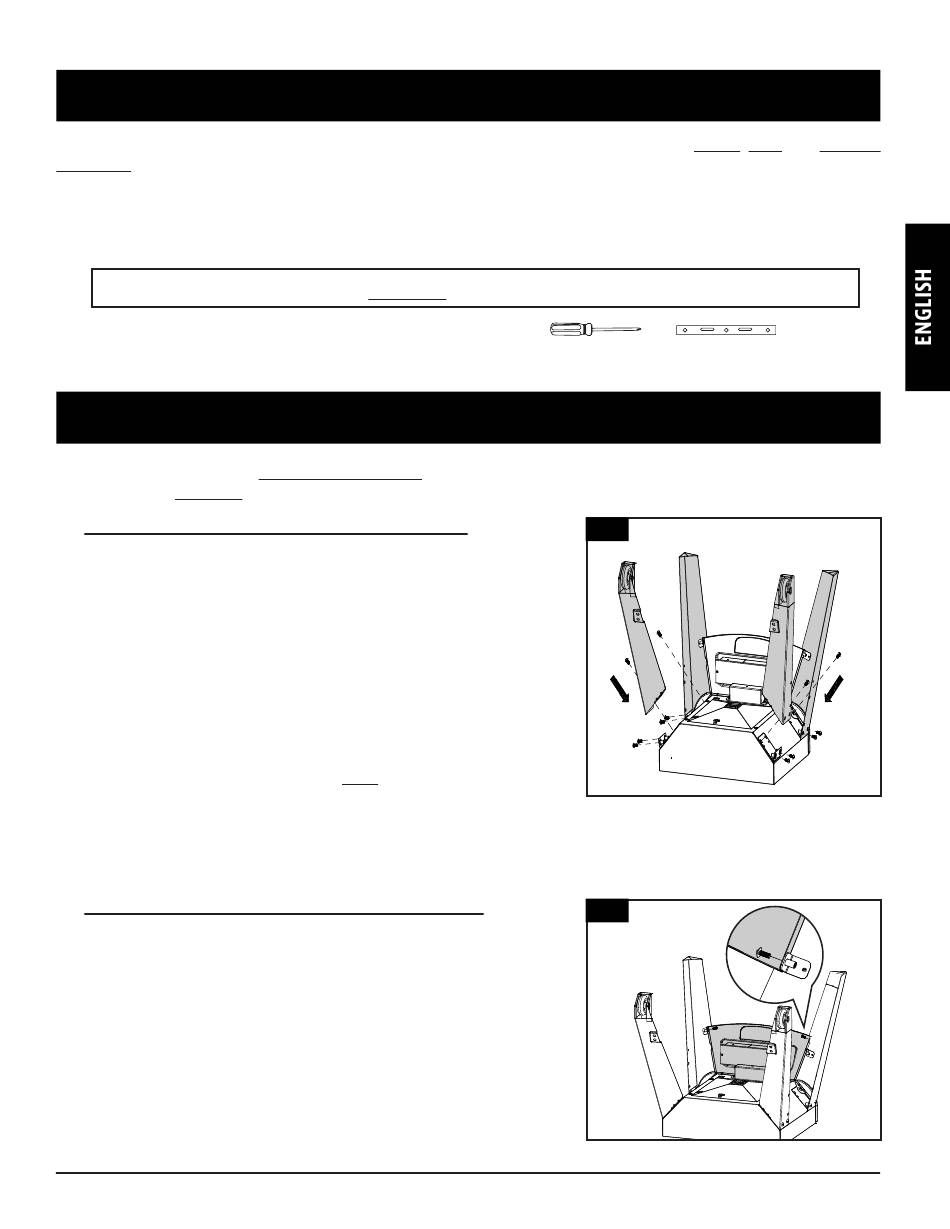

1. MOUNTING THE SUPPORT LEGS TO CABINET BASE
Parts Required:
1 x Cabinet Base (#14)
4 x Support Legs (#19)
12 x ¼–20x½" Screw (#B)
Installation:
• Place a piece of cardbord on the floow to prevent scratching the unit.
• Next, lay the cabinet base on the floor, upside down. Prepare the four
support legs for installation to the cabinet base, arranging the labelled
legs as shown in the illustration.
IMPORTANT: The four support legs must be arranged correctly to
properly install the support panels and support bar in later steps.
• Mount one support leg to the cabinet base using three screws. Repeat
installation for the other three support legs. Tighten inside screws
completely, but leave outside screws partly loosened.
2. SECURE CONTROL BOARD TO FRONT SUPPORT LEGS
Parts Required:
#10–24x½" Screw ( #C)
2 x
Installation:
• Near the Control Board, loosen the two screws connecting the front
panel to the main cabinet.
• Using another two screws, secure the front panel sides to the front-
facing support legs. Once these screws are tight, re-tighten the two
screws that were previously loosened.

ASSEMBLY PREPARATION

ASSEMBLY INSTRUCTIONS

1
19-1
19-2
14
2
8
19-3
19-4
7
