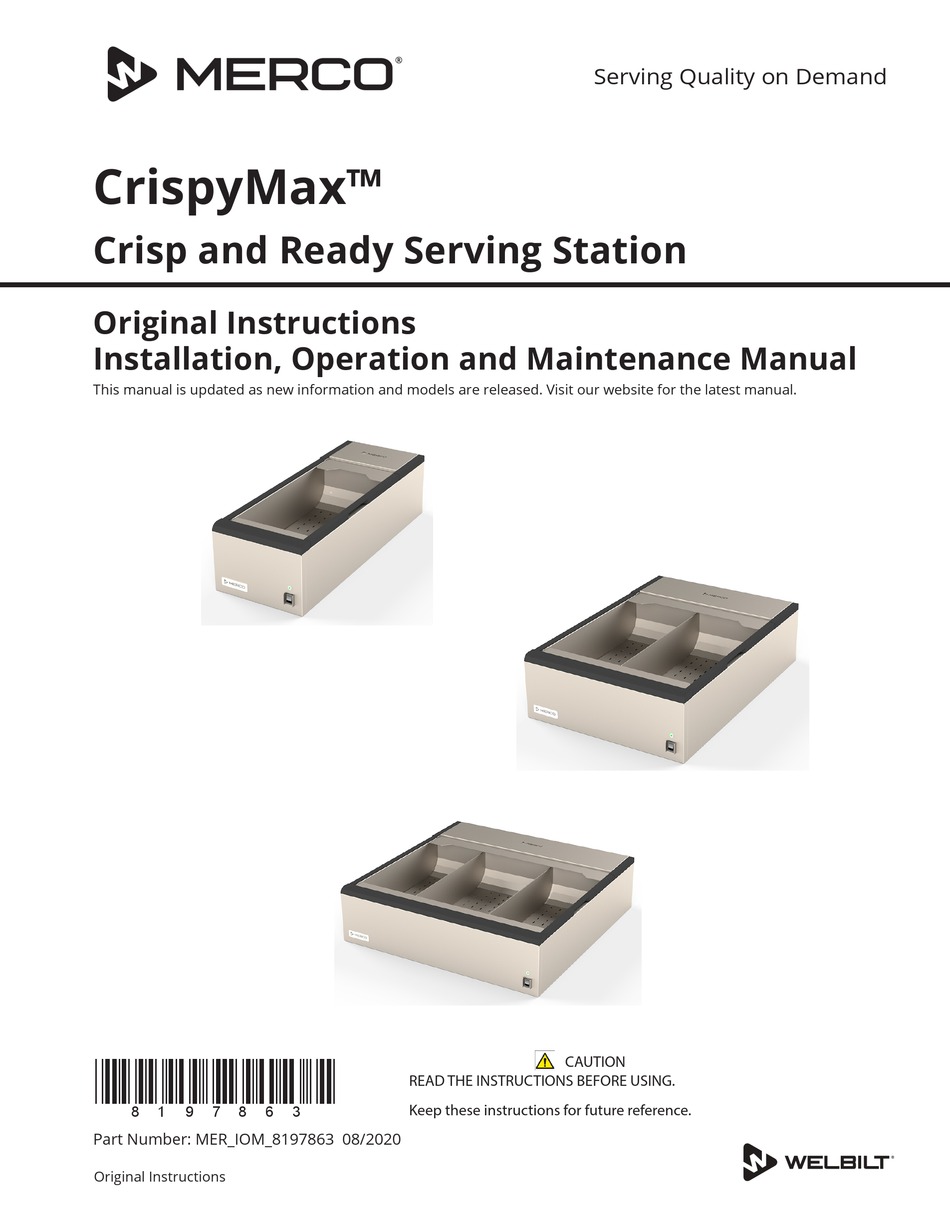

Serving Quality on Demand CrispyMax™ Crisp and Ready Serving Station Original Instructions Installation, Operation and Maintenance Manual This manual is updated as new information and models are released. Visit our website for the latest manual. CAUTION *8197863* READ THE INSTRUCTIONS BEFORE USING. Keep these instructions for future reference.
Page 2
Safety Notices Warning This appliance is not intended for use by children Warning under the age of 16 or persons with reduced physical, Read this manual thoroughly before operating, installing sensory or mental capabilities, or lack of experience and or performing maintenance on the equipment. Failure knowledge, unless they have been given supervision to follow instructions in this manual can cause property concerning use of the appliance by a person responsible...
Table of Contents Section 1 General Information Model Numbers ....................1-1 Serial Number Location ..................1-1 Service Personnel ....................1-1 Warranty Information ..................1-1 Regulatory Certifications .................. 1-1 Section 2 Installation Location ......................2-1 Weight of Equipment ..................2-1 Clearance Requirements .................. 2-2 Dimensions ......................
Section 1 General Information Model Numbers Regulatory Certifications NOTE: This manual covers standard units only. If Models are certified by: you have a custom unit, consult the technical service department. • UL, LLC (Sanitation) • UL, LLC (U.S and Canada) Model Model Description MCG1027NNN...
Section 2 Installation The location selected for the equipment must meet DANGER the following criteria. If any of these criteria are not Installation must comply with all applicable fire met, select another location. and health codes in your jurisdiction. • Holding cabinets are intended for indoor use only.
Installation Section 2 Clearance Requirements Electrical Service DANGER DANGER Minimum clearance requirements are the same Check all wiring connections, including factory for noncombustible locations as for combustible terminals, before operation. Connections can locations. The flooring under the appliance must become loose during shipment and installation. be made of a noncombustible material.
Page 7
Section 2 Installation RATED AMPERAGES, VOLTAGE & POWER CORD CHART Units with plugs are supplied with approximately 6ft (183cm) cords. Model V, Hz, Ph Amps Watts Plug Type MCG1027NNN 120, 60, 1 NEMA 5-15P XMCG1027NNN 200-240, 50/60, 1 4.4-5.4 890-1275 CEE 7/7 MCG1827NNN 120, 60, 1...
Section 3 Operation Caution DANGER The on-site supervisor is responsible for ensuring Do not block the supply and return air grills or that operators are made aware of the inherent the air space around the air grills. Keep plastic wrappings, paper, labels, etc. from being airborne dangers of operating this equipment.
Section 4 Maintenance Warning DANGER All utility connections and fixtures must be When cleaning interior and exterior of unit, care maintained in accordance with local and national should be taken to avoid the front power switch and the rear power cord. Keep water and/or codes.
Maintenance Section 4 DAILY CLEANING INSTRUCTIONS 8. Airflow openings should be inspected and any blockage should be removed. 1. Upon completion of the last holding cycle of the day, allow the unit to cool approximately 30 9. Rinse using a cloth dampened with clear water, minutes.
Section 4 Maintenance avoid marring the finish. Never use steel wool or abrasive pads for cleaning. Never use chlorinated, citrus based or abrasive cleaners. Stainless steel has a clear coating that is stain resistant and easy to clean. Products containing abrasives will damage the coating and scratch it.
Section 5 Troubleshooting Troubleshooting Chart Problem Probable Cause Corrective Action Machine doesn’t operate. No power. Check power source. Verify voltage. Call for service. Excessive time to reach Improper food tray installation / Install food tray properly / Remove temperature. Blocked airflow at rear of unit / any airflow blockages / Clean and Dirty or plugged air filter dry air filter then reinstall.
