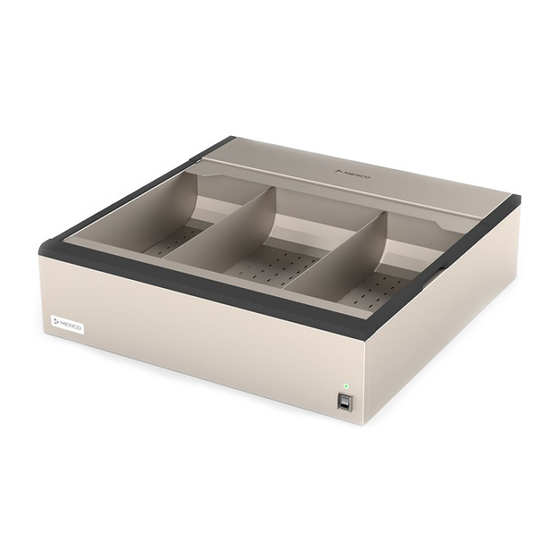

Page 1 Serving Quality on Demand ® CrispyMax ™ Crisp and Ready Serving Station Counter Top and Drop-In Original Instructions Installation, Operation and Maintenance Manual This manual is updated as new information and models are released. Visit our website for the latest manual. CAUTION *8197863* READ THE INSTRUCTIONS BEFORE USING.
Page 2 Safety Notices Before attempting to operate your unit, read the instructions in this manual thoroughly. Throughout this manual, you will find notations enclosed in double-bordered boxes or symbols similar to the ones below. CAUTION CAUTION boxes contain information about actions or conditions that may indicate a potentially hazardous situation which, if not avoided, may result in minor to moderate injury which may result in a malfunction or damage to your system.
Page 3 WARNING This appliance is not intended for use by children under the age of 16 or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision concerning use of the appliance by a person responsible for their safety.
Page 4 Table of Contents Section 1 General Information Model Numbers ....................1-1 Serial Number Location ................... 1-1 Service Personnel ....................1-1 Warranty Information ..................1-1 Regulatory Certifications ................. 1-2 Shipping Damage Claim Procedure ..............1-2 Section 2 Installation Location for Countertop Units ................ 2-1 Weight of Equipment Counter Top ..............
Page 5 Section 1 General Information MODEL NUMBERS This manual covers standard units only. If you have a custom unit, consult the technical service department. COUNTER TOP DROP-IN Model Model Description Model Model Description MCG1027NNN Counter Top (Single Lane) MCD1228NNN Drop-In (Single Lane) XMCG1027NNN Counter Top (Single Lane)(Export) XMCD1228NNN...
Page 6 REGULATORY CERTIFICATIONS Models are certified by: UL, LLC (Sanitation) UL, LLC (U.S and Canada) CE (Europe) SHIPPING DAMAGE CLAIM PROCEDURE Your Merco equipment was carefully inspected and packed before leaving the factory. The transportation company assumes full responsibility for safe delivery upon its acceptance of the equipment for transport.
Page 7 Section 2 Installation DANGER Installation must comply with all applicable fire and health codes in your jurisdiction. DANGER Use appropriate safety equipment during installation and servicing. WARNING This equipment must be positioned so that the plug is accessible unless other means for disconnection from the power supply (e.g., circuit breaker or disconnect switch) is provided.
Page 8 COUNTERTOP UNIT The location selected for the equipment must meet the following criteria. If any of these criteria are not met, select another location. Serving stations are intended for indoor use only. • The location MUST be level, stable and capable of supporting the weight of the equipment. •...
Page 9 ELECTRICAL SERVICE GROUND FAULT CIRCUIT INTERRUPTER Ground Fault Circuit Interrupter (GFCI/GFI) protection is a system that shuts down the electric circuit (opens it) when it senses an unexpected loss of power, presumably to ground. Merco does not recommend the use of GFCI/GFI circuit protection to energize our equipment.
Page 10 RATED AMPERAGES, VOLTAGE & POWER CORD CHART - DROP-IN Units with plugs are supplied with approximately 6ft (183cm) cords. Model V, Hz, Ph Amps Watts Plug Type MCD1228NNN 120, 60, 1 NEMA 5-15P XMCD1228NNN 200-240, 50/60, 1 4.4-5.4 890-1275 CEE 7/7 MCD2028NNN 120, 60, 1 15.9...
Page 11 Failure to maintain the specified clearances will adversely affect the operation and performance of the unit, may result in electrical shock and a risk of fire and will void the manufacturer’s warranty. The countertop must be smooth and flat. The gasket included with the unit must be installed properly to provide an adequate seal and is intended to establish proper sanitary operation.
Page 12 UNIT INSTALLATION Carefully lift the unit and slightly tip the corner where the power cord enters the unit down to facilitate lowering the unit through the countertop opening. Once the power cord has cleared the countertop, right the unit with the gas- ket parallel to the countertop.
Page 13 Section 3 Operation DANGER The on-site supervisor is responsible for ensuring that operators are made aware of the inherent dangers of operating this equipment. DANGER Do not operate any appliance with a damaged cord or plug. All repairs must be performed by a qualified service company.
Page 14 NOTE The airflow and temperature are factory pre-set for optimum staging time for all fried foods. No adjustment of airflow or temperature is required. START UP INSTRUCTIONS 1. Verify that both the crumb tray and food tray are installed properly (see Section 4 for proper installation).
Page 15 Section 4 Maintenance DANGER All utility connections and fixtures must be maintained in accordance with local and national codes. DANGER It is the responsibility of the equipment owner to perform a personal protective equipment haz- ard assessment to ensure adequate protection during maintenance procedures. DANGER Failure to disconnect the power at the main power supply disconnect could result in serious inju- ry or death.
Page 16 CAUTION Non-authorized personnel can operate and perform daily cleaning operations. Only authorized personnel should perform any maintenance and service work that requires opening up the cabinet or replacing parts. WARNING Certain internal parts are intentionally not grounded and may present a risk of electric shock only during servicing.
Page 17 3. Remove divider(s) if present. 4. Remove Food Tray 5. Remove Crumb Tray 6. Wash components with soapy water. 7. Use a soft cloth or sponge, dampened with warm soapy water, to wash the interior and exterior of the appliance. NOTE: Do not flood the appliance with cleaning fluid! 8.
Page 18 Section 5 Troubleshooting TROUBLESHOOTING CHART Problem Probable Cause Corrective Action Machine doesn’t operate. No power. Check power source. Verify voltage. Call for service. Excessive time to reach Improper food tray installation / Install food tray properly / Remove temperature. Blocked airflow at rear of unit any airflow blockages Low airflow volume.
Page 19 THIS PAGE INTENTIONALLY LEFT BLANK...
