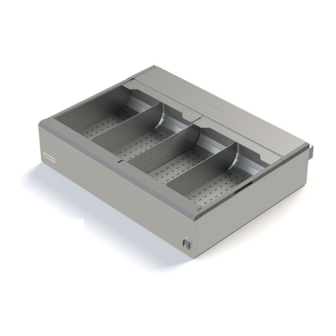

- Page 1 Serving Quality on Demand CrispyMax ™ Crisp and Ready Serving Station Counter Top and Drop-In Original Instructions Installation, Operation and Maintenance Manual This manual is updated as new information and models are released. Visit our website for the latest manual. CAUTION *8197863* READ THE INSTRUCTIONS BEFORE USING.
- Page 2 Safety Notices WARNING Read this manual thoroughly before operating, installing or performing maintenance on the equipment. Failure to follow instructions in this manual can cause property damage, injury or death. DANGER DO not install or operate equipment that has been misused, abused, neglected, damaged, or altered/modified from that of original manufactured specifications.
- Page 3 WARNING DO NOT line the unit with any material like foil, etc. as it will void the warranty. WARNING Use caution when setting up, operating, or cleaning the holding station to avoid contact with heated surfaces. WARNING DO NOT attempt to repair or replace any component unless all power to the unit has been disconnected. CAUTION The CrispyMax is not suitable for outdoor use.
-
Page 4: Table Of Contents
Table of Contents Section 1 General Information Model Numbers ....................1-1 Serial Number Location ................... 1-1 Service Personnel ....................1-1 Warranty Information ..................1-1 Regulatory Certifications ................. 1-1 Section 2 Installation Location ......................2-1 Weight of Equipment ..................2-1 Clearance Requirements .................. 2-2 Dimensions ...................... -
Page 5: General Information
Section 1 General Information Model Numbers This manual covers standard units only. If you have a custom unit, consult the technical service department. Counter Top Drop-In Model Model Description Model Model Description MCG1027NNN Counter Top (Single Lane) MCD1228NNN Drop-In (Single Lane) XMCG1027NNN Counter Top (Single Lane)(Export) XMCD1228NNN... -
Page 6: Regulatory Certifications
Regulatory Certifications Models are certified by: UL, LLC (Sanitation) UL, LLC (U.S and Canada) TUV (U.S and Canada) CE (Europe) United Kingdom Conformity Assessed Shipping Damage Claim Procedure Your Merco equipment was carefully inspected and packed before leaving the factory. The transportation company assumes full responsibility for safe delivery upon its acceptance of the equipment for transport. -
Page 7: Installation
Section 2 Installation DANGER Installation must comply with all applicable fire and health codes in your jurisdiction. DANGER Use appropriate safety equipment during installation and servicing. LOCATION WARNING This equipment must be positioned so that the plug is accessible unless other means for disconnection from the power supply (e.g., circuit breaker or disconnect switch) is provided. -
Page 8: Weight Of Equipment
Weight of Equipment Counter Top Weight of Equipment Drop-In Shipping Equipment Shipping Equipment Model Model Weight Weight MCG1027NNN 40lb/18kg MCD1228NNN 50lb/23kg XMCG1027NNN 40lb/18kg XMCD1228NNN 50lb/23kg MCG1827NNN 60lb/27kg MCD2028NNN 70lb/32kg XMCG1827NNN 60lb/27kg XMCD2028NNN 70lb/32kg MCG2727NNN 80lb/36kg MCD2928NNN 90lb/41kg XMCG2727NNN 80lb/36kg XMCD2928NNN 90lb/41kg MCG3527NNN 100lb/45kg... -
Page 9: Electrical Service
Electrical Service DANGER Check all wiring connections, including factory terminals, before operation. Connections can be- come loose during shipment and installation. WARNING This appliance must be grounded and all field wiring must conform to all applicable local and na- tional codes. Refer to rating plate for proper voltage. It is the responsibility of the end user to provide the disconnect means to satisfy the authority having jurisdiction. -
Page 10: Drop-In Installation
RATED AMPERAGES, VOLTAGE & POWER CORD CHART - DROP-IN Units with plugs are supplied with approximately 6ft (183cm) cords. Model V, Hz, Ph Amps Watts Plug Type MCD1228NNN 120, 60, 1 NEMA 5-15P XMCD1228NNN 200-240, 50/60, 1 4.4-5.4 890-1275 CEE 7/7 MCD2028NNN 120, 60, 1 15.9... - Page 11 If the counter is fully enclosed, the provided louver panel(s) MUST be installed behind the CrispyMax unit adjacent to the louvered back panel on the unit. Failure to do so will void the man- ufacturer’s warranty. The attached standoffs may ONLY be removed if the supplemental louver(s) are installed behind the CrispyMax unit.
-
Page 12: Operation
Section 3 Operation DANGER The on-site supervisor is responsible for ensuring that operators are made aware of the inherent dangers of operating this equipment. DANGER Do not operate any appliance with a damaged cord or plug. All repairs must be performed by a qualified service company. -
Page 13: Start Up Instructions
NOTE The airflow and temperature are factory pre-set for optimum holding time for all fried foods. No adjustment of airflow or temperature is required. Start Up Instructions 1. Verify that both the crumb tray and food tray are installed properly (see Section 4 for proper installation). -
Page 14: Maintenance
Section 4 Maintenance DANGER All utility connections and fixtures must be maintained in accordance with local and national codes. DANGER It is the responsibility of the equipment owner to perform a personal protective equipment haz- ard assessment to ensure adequate protection during maintenance procedures. DANGER Failure to disconnect the power at the main power supply disconnect could result in serious inju- ry or death. -
Page 15: Cleaning And Sanitizing Procedures
CAUTION Never use an acid based cleaning solution on stainless steel! Many food products have an acidic content, which can deteriorate the finish. Be sure to clean the stainless steel surfaces of ALL food products. Cleaning and Sanitizing Procedures GENERAL You are responsible for maintaining the equipment in accordance with the instructions in this manual to ensure satisfactory performance of your CrispyMax Crisp &... -
Page 16: Stainless Steel Cleaning
8. Airflow openings should be inspected and any blockage should be removed. 9. Rinse using a cloth dampened with clear water, then dry. 10. Reinstall crumb tray, food tray and divider(s). 11. Ensure the food tray is inserted correctly. The front edge should be flush with the cabinet. Correct placement of the food tray. -
Page 17: Troubleshooting
Section 5 Troubleshooting Troubleshooting Chart Problem Probable Cause Corrective Action Machine doesn’t operate. No power. Check power source. Verify voltage. Call for service. Excessive time to reach Improper food tray installation / Install food tray properly / Remove temperature. Blocked airflow at rear of unit any airflow blockages Low airflow volume. -
Page 18: Led Troubleshooting
LED Troubleshooting There is a small round LED above the power switch on the front of the unit that changes color and/or flashes to alert the user of any performance or service issues. - Page 19 , kitchen systems; and KitchenConnect , cloud-based open ® ® platform. Bringing innovation to the table · welbilt.com ©2023 Welbilt Inc. except where explicitly stated otherwise. All rights reserved. Continuing product improvement may necessitate change of specifications without notice. Part Number: MER_IO_8197863 11/2023...
