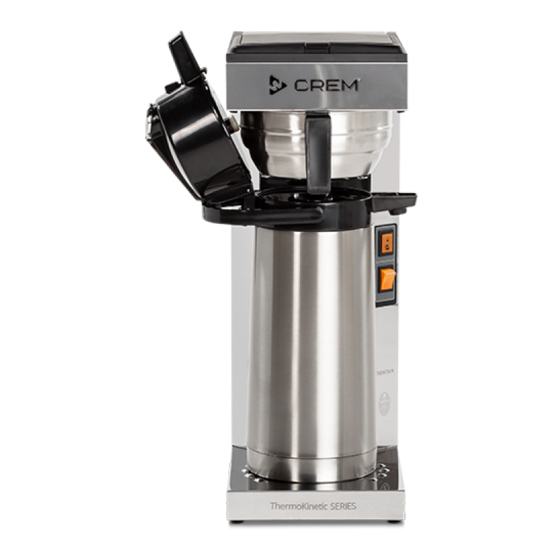

- Page 1 Crafted for every taste FILTER COFFE BREWERS THERMOKINETIC SERIES User Manual 1.8 l. | Original Line 2.2 l. | Thermos 2.5 l. | Mega Gold UM_EN Part No.: 1964230 Rev.:...
-
Page 2: Table Of Contents
Filter Coffee Thermokinetic Series CONTENTS CONTENTS MANUAL REVISIONS NOTIFICATIONS · Explanation of descriptions GENERAL INFORMATION · Introduction · General instructions · Intended use · Warnings and Precautions TRANSPORT · Packaging · Delivery inspection STORAGE AND DISPOSAL · Long-term storage requirements ·... - Page 3 Filter Coffee Thermokinetic Series CONTENTS · First time start-up M-series OPERATION · Brewing with coffee with A-series · Brewing with coffee with M-series · To keep temperature and aroma · Adjusting the Thermokinetic(TK)-Series extraction ratio CLEANING AND CARE · Rinse thermos, decanter and serving station ·...
-
Page 4: Manual Revisions
Filter Coffee Thermokinetic Series MANUAL REVISIONS Rev. #: Date: TSB#: Change Description First draft released for technical review and validation Feb. 24, 2020 None testing. Update descaling instructions. Add notifications, Apr. 28, 2021 transport, storage and disposal sections. Update the layout. -
Page 5: Notifications
Filter Coffee Thermokinetic Series NOTIFICATIONS · Explanation of descriptions There are five different levels of notification intensity within this manual, as identified by the signal terms: DANGER, WARNING, IMPORTANT, NOTE and PRO TIP. The level of risk and importance of the notification is determined by the following definitions. -
Page 6: General Information
Filter Coffee Thermokinetic Series GENERAL INFORMATION · Introduction Thank you for choosing an Crem Filter Coffee Brewer machine. We hope you enjoy it ! Please read this user manual carefully before using the machine. This manual contains important instructions regarding safe intended use of the machine. -
Page 7: Intended Use
Filter Coffee Thermokinetic Series GENERAL INFORMATION · Intended use The coffee machine has been designed and manufactured to make espresso coffee and other hot drinks (e.g., steaming and frothing milk). Do not use it for any other purpose. The machine is intended to be used by trained personnel for preparing foodstuffs. - Page 8 Filter Coffee Thermokinetic Series GENERAL INFORMATION Warnings and Precautions · The appliance is not suitable for installation in an area where a water jet could be used. This appliance must not be cleaned with a water jet or a pressure washer.
- Page 9 Filter Coffee Thermokinetic Series GENERAL INFORMATION · Warnings and Precautions When packed for storage, store the machine in a dry place with an ambient temperature above 5ºC. Boxes may be stacked up to three units high of the same model. Do not place other heavy items on top of the box.
-
Page 10: Transport
Filter Coffee Thermokinetic Series TRANSPORT · Packaging The machine is shipped in a custom-designed carton which utilizes model-specific polystyrene cushions to protect it from damage. The machine’s carton features standardized handling symbols to explain proper shipping and storage methods. The machine must remain in a horizontal position during the transport. Do not store or handle the machine except on its feet. -
Page 11: Storage And Disposal
Filter Coffee Thermokinetic Series STORAGE AND DISPOSAL · Long-term storage requirements Before storage for a month or more be sure to: • Perform all weekly and periodic cleaning procedures described in this manual. • Disconnect and roll up the power cord (this should be performed by a qualified person). -
Page 12: Facts & Weight A-Tk Series
Filter Coffee Thermokinetic Series TECHNICAL SPECIFICATIONS · Facts & weight A-TK Series FACTS A-2 TK DA-4 TK Thermos A TK Mega Gold A TK 428, 410, 410 mm 557, 205, 410 mm 655, 205, 445 mm Height, Width, Depth 428, 205, 410 mm Weight 9.6 kg... -
Page 13: Facts & Weight M-Tk Series
Filter Coffee Thermokinetic Series TECHNICAL SPECIFICATIONS · Facts & weight M-TK Series FACTS M-1 TK M-2 TK Thermos M TK Mega Gold M TK 557, 205, 410 mm 655, 205, 445 mm Height, Width, Depth 428, 205, 410 mm Weight 7.6 kg... -
Page 14: Front View - M-1 Tk
Filter Coffee Thermokinetic Series TECHNICAL SPECIFICATIONS · Front view - M-1 TK Tank lid Filter holder Brewing lamp Power switch Glass decanter Hot plate Original instructions. -
Page 15: Front View - A-2 Tk & M-2 Tk
Filter Coffee Thermokinetic Series TECHNICAL SPECIFICATIONS · Front view - A-2 TK & M-2 TK Glass decanter Upper hot plate Tank lid Filter holder Power switch Display Only for A-versions Glass decanter Lower hot plate Brewing lamp Power switch M-versions... -
Page 16: Front View - Da-4 Tk
Filter Coffee Thermokinetic Series TECHNICAL SPECIFICATIONS · Front view - DA-4 TK Glass decanter Upper hot plate Tank lid Filter holder Power switch Display Only for Glass decanter A-versions Lower Hot plate Brewing lamp Power switch M-versions Original instructions. -
Page 17: Front View - Thermos M / A Tk
Filter Coffee Thermokinetic Series TECHNICAL SPECIFICATIONS · Front view - Thermos M / A TK Tank lid Filter holder Power switch Display Carry Handle Only for A-versions Thermos Brewing lamp Power switch M-versions Original instructions. -
Page 18: Front View - Mega Gold M / A Tk
Filter Coffee Thermokinetic Series TECHNICAL SPECIFICATIONS · Front view - Mega Gold M / A TK Tank lid Filter holder Power switch Display Carry Handle Only for A-versions Serving Station Tap for Coffee Drip Tray Insert Drip Tray Brewing lamp... -
Page 19: Function - A-2 Tk & Da-4 Tk
Filter Coffee Thermokinetic Series TECHNICAL SPECIFICATIONS · Function - A-2 TK & DA-4 TK ON-OFF button for display and lower hot plate. ON-OFF button For upper hot plate. Shows the number of cups. Display is blinking when brewing. Increase the number of cups. -
Page 20: Installation And Start Up
Filter Coffee Thermokinetic Series INSTALLATION AND START UP · Machine positioning MIN. 10 cm MIN. 10 cm Place the machine on a flat horizontal surface that will support the weight of the machine. Note: Make sure air is able to circulate behind the machine (minimum 10cm). -
Page 21: Electrical Connection
Filter Coffee Thermokinetic Series INSTALLATION AND START UP · Electrical connection M-1 TK, M-2 TK, Thermos M TK, Mega Gold M TK / A-2 TK, Thermos A TK, Mega Gold A TK Important: Connect the plug to a separate earthed wall socket. -
Page 22: First Time Start-Up A-Series
Filter Coffee Thermokinetic Series INSTALLATION AND START UP · First time start-up A-series Important: First time you use the machine do the first brewing with water only. Slide the filter holder into position without filter and coffee. Turn on the power switch(A). -
Page 23: First Time Start-Up M-Series
Filter Coffee Thermokinetic Series INSTALLATION AND START UP · First time start-up M-series Important: First time you use the machine do the first brewing with water only. Slide the filter holder into position without filter and coffee. Lift up the tank lid and fill the machine with 1.8L fresh tap... -
Page 24: Operation
Filter Coffee Thermokinetic Series OPERATION · Brewing with coffee with A-series Recommended powder amount is 60g/L 1. Place 110mm (TK models) filter in the filter 2. Add coffee (restaurant / catering ground holder. coffee). Make sure that the coffee is evenly spread. - Page 25 Filter Coffee Thermokinetic Series OPERATION 5. Place the thermos or decanter under the filterholder. Choose number of cups for your brewing by using the buttons described below. - Press the button to increase number of cups - Press the button to decrease number of cups When you have selected your desired number of cups press button to start brewing.
-
Page 26: Brewing With Coffee With M-Series
Filter Coffee Thermokinetic Series OPERATION · Brewing with coffee with M-series Recommended powder amount is 60g/L 1. Place 110mm (TK models) filter in the filter 2. Add coffee (restaurant / catering ground holder. coffee). Make sure that the coffee is evenly spread. - Page 27 Filter Coffee Thermokinetic Series OPERATION 5. Place the thermos or decanter under the filterholder. 6. Turn on power switch for brewing. (A). Turn on power switch for brewing. WARNING! Under no circumstances fill brewed coffee or coffee powder into the water tank.
-
Page 28: To Keep Temperature And Aroma
Filter Coffee Thermokinetic Series OPERATION · To keep temperature and aroma Tips for keeping coffee hot： Pre-heat the serving station, start a brewing with only water into the serving station. When brewing is complete let it stand for about 1 hour. Pour out the water. Then start a brew with coffee. -
Page 29: Adjusting The Thermokinetic(Tk)-Series Extraction Ratio
Filter Coffee Thermokinetic Series OPERATION · Adjusting the Thermokinetic(TK)-Series extraction ratio To adjust the brewing extraction of the TK-Series machine for optimal quality and taste, refer to the chart and the steps provided below: Check the temperature of the water with a thermometer to be used for brewing. Optimal inlet water temperature range is 10-20ºC. -
Page 30: Cleaning And Care
Filter Coffee Thermokinetic Series CLEANING AND CARE · Rinse thermos, decanter and serving station Before each brewing, rinse the thermos, decanter or serving station with fresh tap water. When cleaning the outside, use a soft rag with liquid cleaning agent to prevent scratches. -
Page 31: Daily Cleaning
Filter Coffee Thermokinetic Series CLEANING AND CARE · Daily cleaning 1. Wash the thermos, decanter(B) and the filter holder with liquid solution for coffee machines. Always remove the filter immediately and clean the filter holder daily, coffee will get moldy. -
Page 32: Cleaning Serving Station
Filter Coffee Thermokinetic Series CLEANING AND CARE · Cleaning serving station 1. Disassemble the level tube and clean it every week with the enclosed brush. 2. Take off the main lid and clean the mixer tube(A). Cleaning of serving station 2.5 L: Fill the serving station with hot water. -
Page 33: User Programming
Filter Coffee Thermokinetic Series USER PROGRAMMING · Adjust water amount Adjust amount of brew water. Press the buttons at same time in 5 seconds The buzzer beeps twice. Display shows 0. - Press the button to increase amount of water. -
Page 34: Troubleshooting
Filter Coffee Thermokinetic Series TROUBLESHOOTING · Fault and solution FAULT POSSIBLE SOLUTION Important: Check plug connection to wall socket. All maintenance Power switch does Check fuse in plug. and installations not lit. Check if hot plate becomes warm, if so replace must be done of power switch. -
Page 35: Dimension
Filter Coffee Thermokinetic Series DIMENSION · M-1 TK, M-2 TK, A-2 TK Model A-2 TK 595mm 205mm 410mm 428mm 578mm 360mm M-2 TK 595mm 205mm 410mm 428mm 578mm 360mm M-1 TK 428mm 205mm 410mm 428mm 578mm 360mm Original instructions. - Page 36 Filter Coffee Thermokinetic Series DIMENSION · DA-4 TK Model DA-4 TK 410mm 410mm 428mm 595mm 578mm 360mm Original instructions.
-
Page 37: Thermos A Tk, Thermos M Tk
Filter Coffee Thermokinetic Series DIMENSION · Thermos A TK, Thermos M TK Model Thermos A TK 557mm 205mm 410mm 708mm 360mm Thermos M TK 557mm 205mm 410mm 708mm 360mm Original instructions. -
Page 38: Mega Gold A Tk, Mega Gold M Tk
Filter Coffee Thermokinetic Series DIMENSION · Mega Gold A TK, Mega Gold M TK Model Mega Gold A TK 655mm 205mm 445mm 390mm 806mm Mega Gold M TK 655mm 205mm 445mm 390mm 806mm Original instructions. -
Page 39: Serving Station 2.5L
Filter Coffee Thermokinetic Series DIMENSION · Serving Station 2.5L Model Serving Station 2.5L 205mm 273mm 436mm 400mm 105mm Original instructions. - Page 40 The warranty will not cover damages of defects caused by incorrect handling and operation of the appliance. For service Please contact your dealer Your Dealer Welbilt (China) Foodservice Co., Ltd Bin Jiang District, Hangzhou, Zhejiang, China 310052 ChuangYe Road, SongGang China crem.coffee...
