Introduction
Instruction describes how to correctly install a Manitowoc Indigo Ice Maker
Objective
To Install and Commission the Indigo Ice Maker meeting all Health and Safety
requirements
Health and Safety
Hand Protection
Note: Ensure area is well ventilated when using Solvent
Cement. Use protective gloves and keep exposure to a
minimum. Refer to directions on container.
Refrigeration units can be in excess of 70 kg and should be
handled / lifted into position with extreme care.
This is a 2 (two) man lift
Parts Required
These parts would need to be supplied by the installer
QTY
Description
1
Bent Tank Connector ¾ BSP
1
21.5mm tee piece
¾ BSP Straight nut with loose cou-
1
pling.
5
21.5mm elbows.
2
45 Degree Elbow.
?
PVC Straight Connector
?
Pipe Clips for 21.5mm Pipe
Armaflex 22mmX 12mm wall thick-
1
ness
Eye Protection
QTY
3
1
1.5
1
1
2
1
1

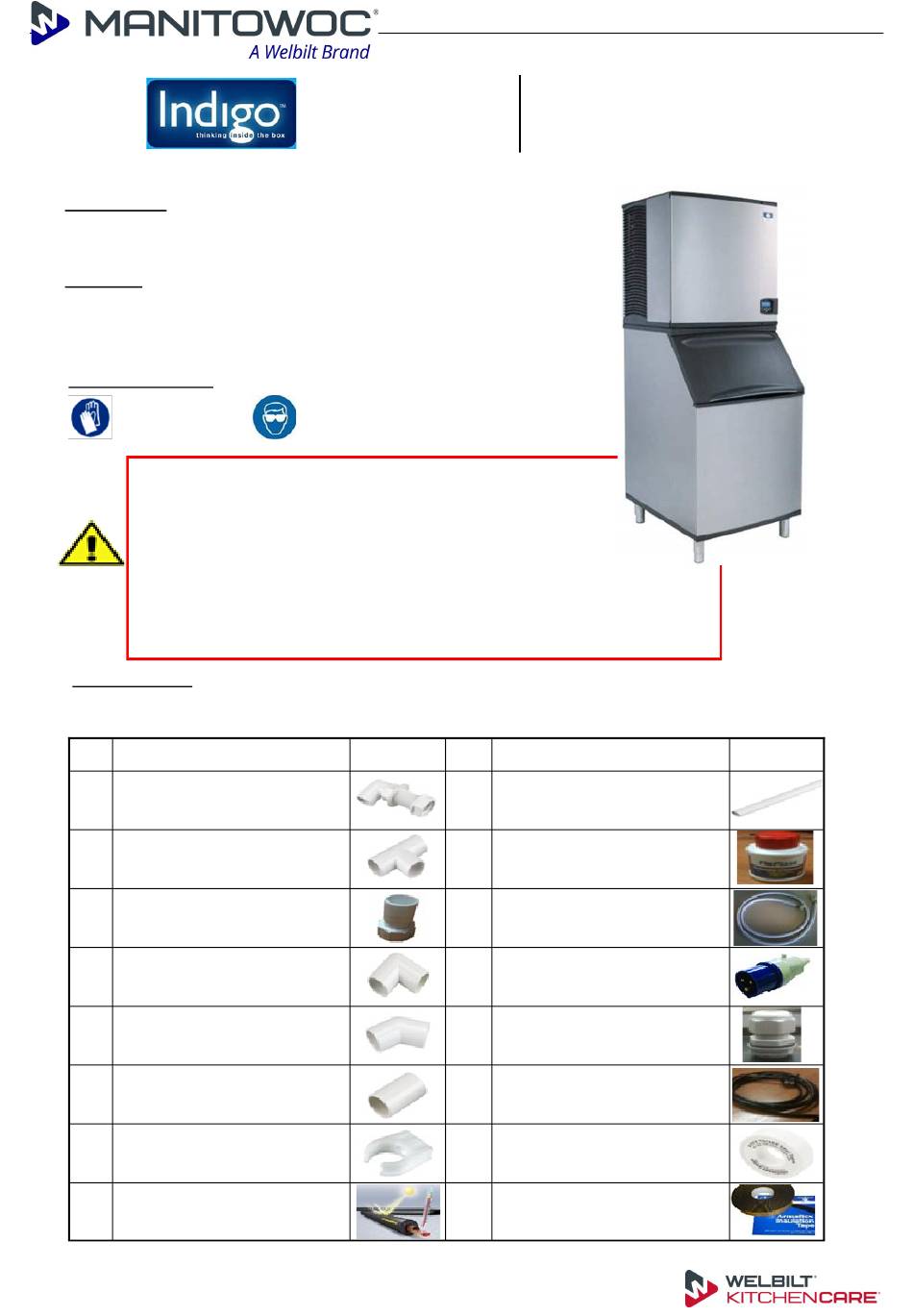

Subject: Indigo Ice Installation Guide
SCOPE : ALL Indigo Ice Models
Description
21.5mm x 1.5mtr overflow pipe.
Solvent Cement. (PVC Glue)
Potable water hose
16amp Commando plug.
Cable Restraint.
Mains cable 1.5mm.
PTFE Tape.
Armaflex Tape

Advertisement

loading
Need help?

Need help?

Do you have a question about the Manitowoc Indigo and is the answer not in the manual?

Questions and answers

Summary of Contents for Welbilt Manitowoc Indigo

  • Page 1 Subject: Indigo Ice Installation Guide SCOPE : ALL Indigo Ice Models Introduction Instruction describes how to correctly install a Manitowoc Indigo Ice Maker Objective To Install and Commission the Indigo Ice Maker meeting all Health and Safety requirements Health and Safety...
  • Page 2 Pre-Install Check Make sure you have the correct unit, verify you have the correct Model and Serial Numbers. Make sure power and water are ready at the machine location and verify it is not water. Make sure the drainage is in correct position for you to install the new unit, it must be lower than the underside of the ice bin if not you will not be able to carry out the installation and a drain pump will be required.
  • Page 3 Installation - Drain Remove the front door / Panel by loosening the screws on the front panel Locate the User Care Manual, you find 2 (two) brass fittings are enclosed in the bag The brass fittings are for the Water Inlet and Drainage outlet on the rear of the unit.
  • Page 4 Installation - Component Sanitation Remove internal parts and attend to 4 step cleaning process (Wash, Rinse, Sanitise, Rinse) Water Curtain - Gently flex the curtain in the centre and remove it from the right side, Do not bend the tab out it will snap Ice Thickness Probe - Compress the hinge pin on the top of the ITP, the ITP can be cleaned at this point without complete removal.
