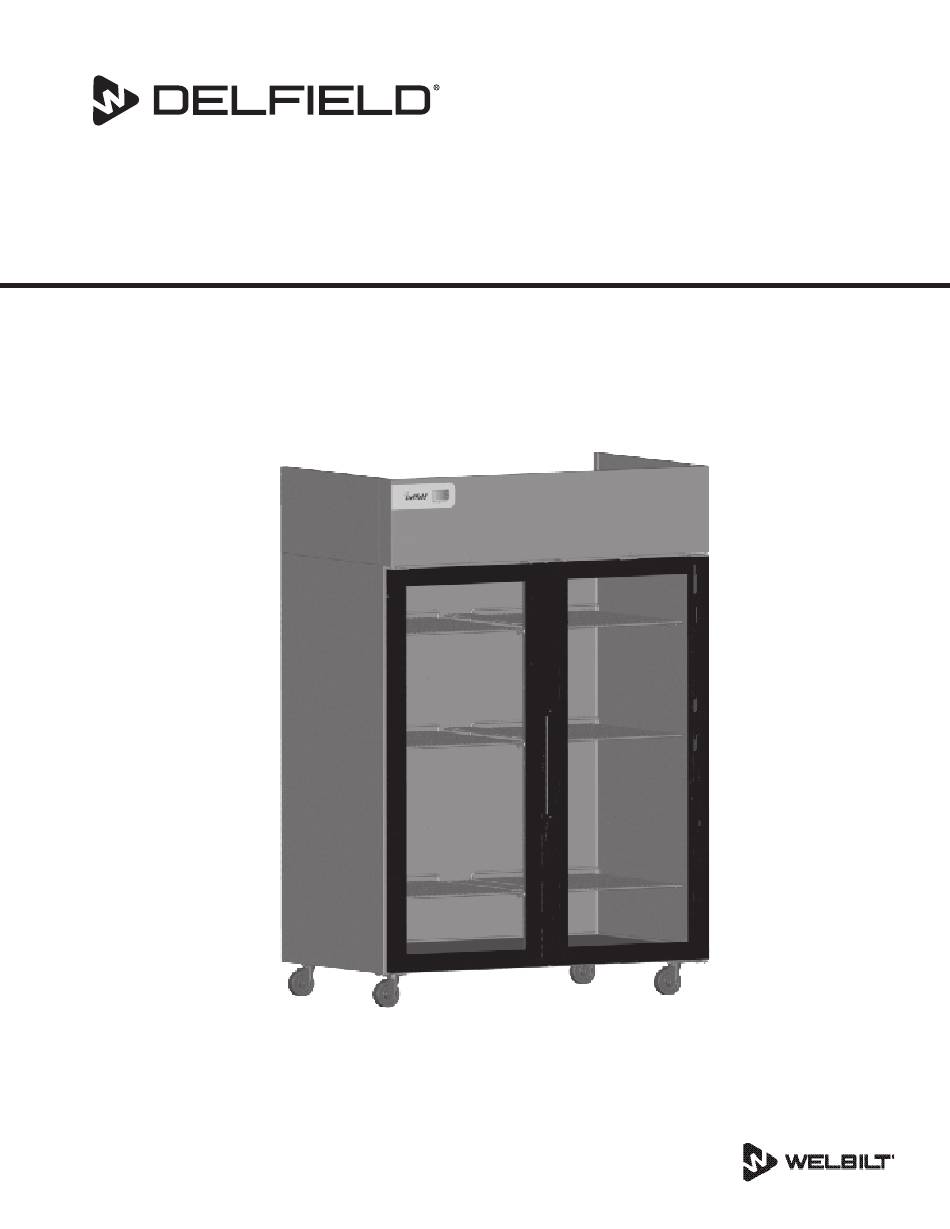

- Page 1 Fresh Solutions, Fit For You Series CS Reach-Ins CoolScapes™ Original Instructions Installation, Operation and Maintenance Manual This manual is updated as new information and models are released. Visit our website for the latest manual. Part Number: 9295040 10/19...
-
Page 2: Safety Notices
Safety Notices Warning Do not use electrical appliances or accessories other than Warning those supplied by the manufacturer. Read this manual thoroughly before operating, installing or performing maintenance on the equipment. Failure Warning to follow instructions in this manual can cause property Use caution when handling metal surface edges of all damage, injury or death. -
Page 3: Table Of Contents
Table of Contents Section 1 Section 4 General Information Maintenance Model Numbers ............4 Responsibility ............. 22 Serial Number Information ........4 Interior Cleaning ..........23 Warranty Information ...........4 Gaskets ............23 Regulatory Certifications ........4 Preventing Blower Coil Corrosion ....23 Exterior Cleaning ..........23 Section 2 Drain.............. -
Page 4: Section 1 General Information
Section 1 General Information Model Numbers Serial Number Information This manual covers the following models: The model number and serial number are on the identification plate. The identification plate is located near One Section Two Section Three Section the top front corner of the left interior wall. Reach-In Dual Temperature CSDBR1P-SH Always have the serial number of your unit available... -
Page 5: Section 2 Installation
Section 2 Installation • Recommended air temperature is 60° - 100°F DANGER (16° - 38°C). Installation must comply with all applicable fire and • Proper air supply for ventilation is REQUIRED AND health codes in your jurisdiction. CRITICAL for safe and efficient operation. Refer to Clearance Requirements chart on page 5. -
Page 6: Weight, Capacity & Dimensions Of Equipment
Installation Section 2 Weight, Capacity & Dimensions of Equipment Model Weight Shelf Qty Shelf Area Volume Length Depth Height Reach-In Dual Temperature CSDBR1P-SH (2X)8.6ft 398lbs (181kg) (2X)2 (2X)8ft (7432cm 27.40” (70cm) 32.44” (82cm) 79.50” (202cm) CSDTR1P-SH (244L) Reach-In Freezers CSF1P-S (H) 354lbs (161kg) 11.5ft (10684cm... -
Page 7: Electrical Service
CSR2NP-G (H) 115, 60, 1 0.35 5-15P Welbilt does not recommend the use of GFCI/GFI circuit CSR2NP-S (H) Reach-In Refrigerators protection to energize our equipment. If code requires the CSR1P-G (H) use of a GFCI/GFI then you must follow the local code. -
Page 8: Energy Use For Energy Star® Certified Units
Installation Section 2 Refrigeration ENERGY USE FOR ENERGY STAR® CERTIFIED UNITS Model Energy Use in Heat of BTU/Hour R290 Model Energy Use in Model Rejection (BTU) Capacity Charge CSR2P-SH 2.49 Reach-In Dual Temperature Reach-In Dual Temperature CSR3P-G 4.92 CSDBR1P-SH Ref. 232 Ref. -
Page 9: Leg & Caster Installation
Section 2 Installation Leg & Caster Installation Level & Stable After the cabinet has been placed in the desired location, Warning cabinets must be leveled. Level units from front to back and The unit must be installed in a stable condition with from side to side. -
Page 10: Reversible Door Instructions
Installation Section 2 Reversible Door Instructions 10. Locate the provided alternate top hinge bracket. 11. Place the hinge bracket over the top hinge pin. APPLICABLE TO FULL DOOR MODELS 12. Open the door. 1. Open the door. 13. Using the original screws install the hinge bracket on the 2. -
Page 11: Roll-In & Roll-Thru Installation
Section 2 Installation Roll-In & Roll-Thru Installation New Bottom Hinge Cartridge Installation NOTE: Local area codes may dictate other installation 1. Install the new cartridge into the door as received. The requirements not mentioned. new cartridge will be in the CLOSED position. 1. -
Page 12: T-1 Tray Slide Installation
Installation Section 2 T-1 Tray Slide Installation T-1 Installation Instructions 1. For each pan, mount a pair of tray slides; one on each Edge Support for 18” x 26” pans side of the door section at the same height. Mount the tray slides onto the pilasters by sliding the tray slide tabs down into the cutouts. -
Page 13: Tray Slide Installation
Section 2 Installation T-2 Tray Slide Installation Universal Bottom Support for 12” x 20” and 18” x 26” pans T-2 Tray Slide System T-2 Installation Instructions 1. For each pan, two (2) tray slides will be used. Each tray slide must have another tray slide at the same height, Installed T-2 tray slide with both size pans on the opposite side of the door section. -
Page 14: T-3 Tray Slide Installation
Installation Section 2 T-3 Tray Slide Installation T-3 Installation Instructions 1. For each pan, two (2) tray slides will be used. Each tray Edge Support for 12” x 20” pans slide must have another tray slide at the same height, on the opposite side of the door section. -
Page 15: T-4 Rack Slide Installation
Section 2 Installation T-4 Rack Slide Installation 3. Repeat steps 1-2 on the opposite side. Verify that all mounting plates are lined up across the door section. Edge Support for 18” x 26” pans 4. For a full section installation, repeat steps 1-3 for the upper half. -
Page 16: Optional Foot Pedal Installation Instructions
Installation Section 2 Optional Foot Pedal Installation Instructions 8. Mount foot pedal door assist with (2) 5/16-18 bolts that are provided, use ½” socket or wrench. Foot pedal plate • If the optional foot pedal is ordered for a right hinged should be facing forward and parallel to the floor when door, ensure part # 000-D10-0031 is received. -
Page 17: Section 3 Operation
Section 3 Operation Caution DANGER Do not throw items into the storage area. Failure to The on-site supervisor is responsible for ensuring that heed this recommendation could result in damage to the operators are made aware of the inherent dangers of interior of the cabinet or to the blower coil. -
Page 18: Heated Temperature Control & Display Operation
Operation Section 3 Refrigerator & Freezer Operation HEATED TEMPERATURE CONTROL & DISPLAY OPERATION • Delfield refrigerators are designed to maintain an 1. Press upper or lower right button to display current operational temperature of 36°F to 40°F (2°C to 4°C). set-point (blinking). -
Page 19: At Start Up
Section 3 Operation AT START UP TEMPERATURE CONTROL & DISPLAY 1. At initial start-up or anytime power is disconnected, then reconnected to the unit, the control will go into defrost mode. 2. The control will enter a DEFROST mode and the display will read dEF. -
Page 20: Evaporator Fan Operation
Operation Section 3 Temperature Control & Display Operation EVAPORATOR FAN OPERATION During normal operation the evaporator fan may cycle and/ Press upper or lower right button. or pulse independently of the compressor. Consult Technical • Display show actual set-point (blinking). Support at 1-844-724-CARE if you are unsure of the proper ₋... -
Page 21: Changing Display From Fahrenheit To Celsius
Section 3 Operation Changing Display from Fahrenheit to Celsius 6. -F should be displayed indicating Fahrenheit. Use the down arrow to change it to -C for Celsius and hit the 1. Simultaneously hold the up and down arrows for stand-by button (lower left button) to enter the change. 5 seconds to access menu for password protected parameters. -
Page 22: Section 4 Maintenance
Section 4 Maintenance Warning DANGER When using cleaning fluids or chemicals, rubber gloves It is the responsibility of the equipment owner to perform and eye protection (and/or face shield) must be worn. a Personal Protective Equipment Hazard Assessment to ensure adequate protection during maintenance Caution procedures. -
Page 23: Interior Cleaning
Section 4 Maintenance Interior Cleaning DRAIN Each refrigerated unit has a drain located inside the unit The interior can be cleaned using soap and warm water. If that removes the condensation from the evaporator coil and this isn’t sufficient, try ammonia and water or a nonabrasive routes it to an external condensate evaporator pan. - Page 24 DELFIELD 980 SOUTH ISABELLA ROAD, MOUNT PLEASANT, MI 48858 800-733-8821 WWW.DELFIELD.COM ©2019 Welbilt Inc. except where explicitly stated otherwise. All rights reserved. “Part Number 9295040 10/19...
