Welbilt Merco MHC Series Instruction Sheet

Usb process sd card replacement instructions

Instruction

Sheet

BEFORE STARTING!

If the touch screen is FROZEN or BLANK, DO NOT USE THESE INSTRUCTIONS! Use

instructions 8197780 in the SD card kit.

properly, set instructions 8197780 included with the SD card kit aside. They may be

required later if these instructions don't work.

Follow these instructions to remove the essential memory

and menus from the old Kingston SD card and reinstall it on

the new Swissbit SD card on the Merco Visual Holding

Cabinets in Chick-fil-A.

1. Remove power from the unit.

2. Remove the four (4) screws that secure the top of the cabinet

(see Figure 1).

Subject: USB Process SD Card Replacement

Instructions

Models affected: Merco MHC Models at

Chick-fil-A

10/30/2019

READ THIS

8700 LINE AVENUE, SHREVEPORT, LA 71106

If the touch screen(s) are functioning

Figure 1

*8197786*

Document Number: MER_IS_0016 8197786 10/2019

MERCO

844-724-CARE

WWW.MERCOPRODUCTS.COM

1 of 4

Table of Contents

Need help?

Do you have a question about the Merco MHC Series and is the answer not in the manual?

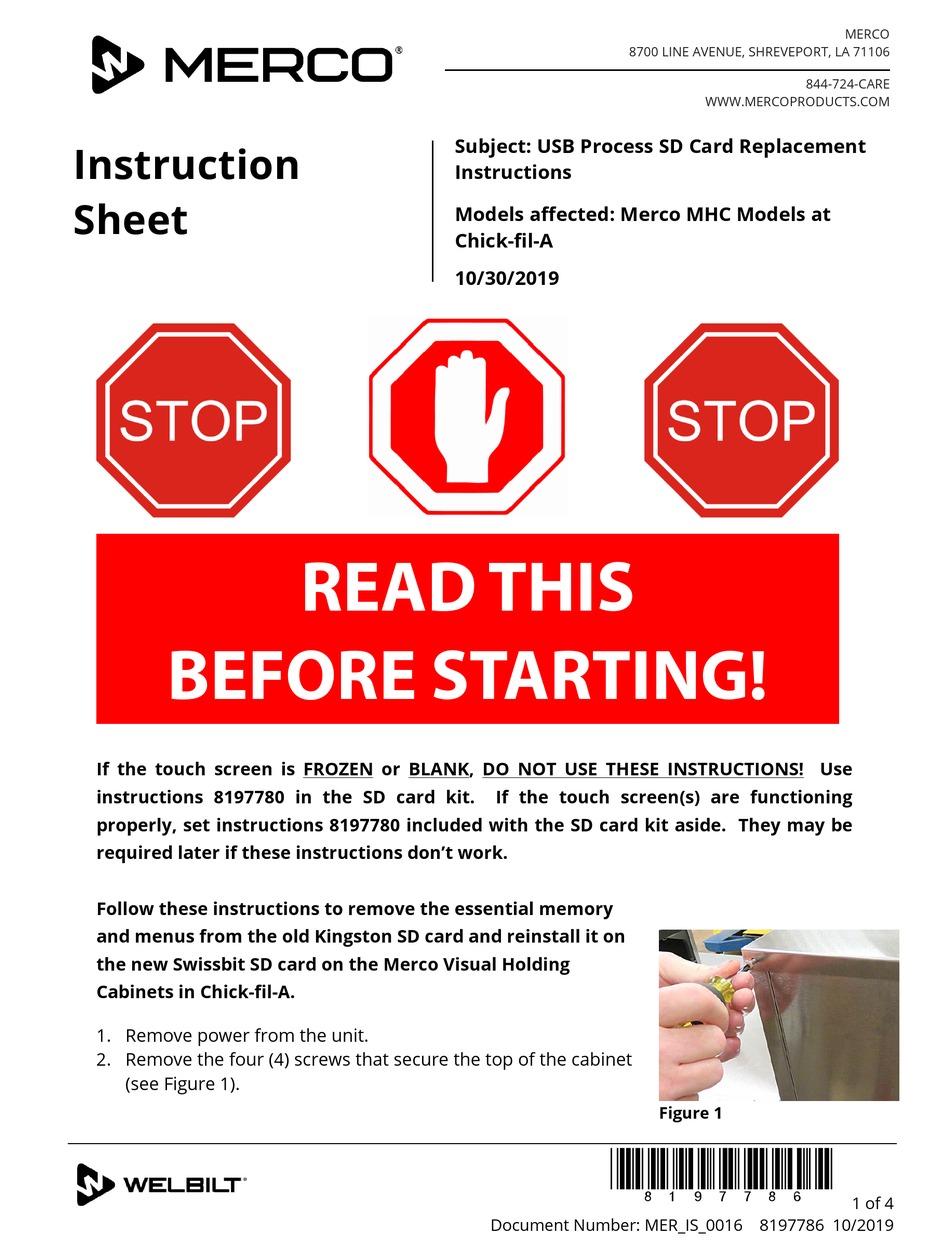

Page 1 MERCO 8700 LINE AVENUE, SHREVEPORT, LA 71106 844-724-CARE WWW.MERCOPRODUCTS.COM Subject: USB Process SD Card Replacement Instruction Instructions Sheet Models affected: Merco MHC Models at Chick-fil-A 10/30/2019 READ THIS BEFORE STARTING! If the touch screen is FROZEN or BLANK, DO NOT USE THESE INSTRUCTIONS! Use instructions 8197780 in the SD card kit.
