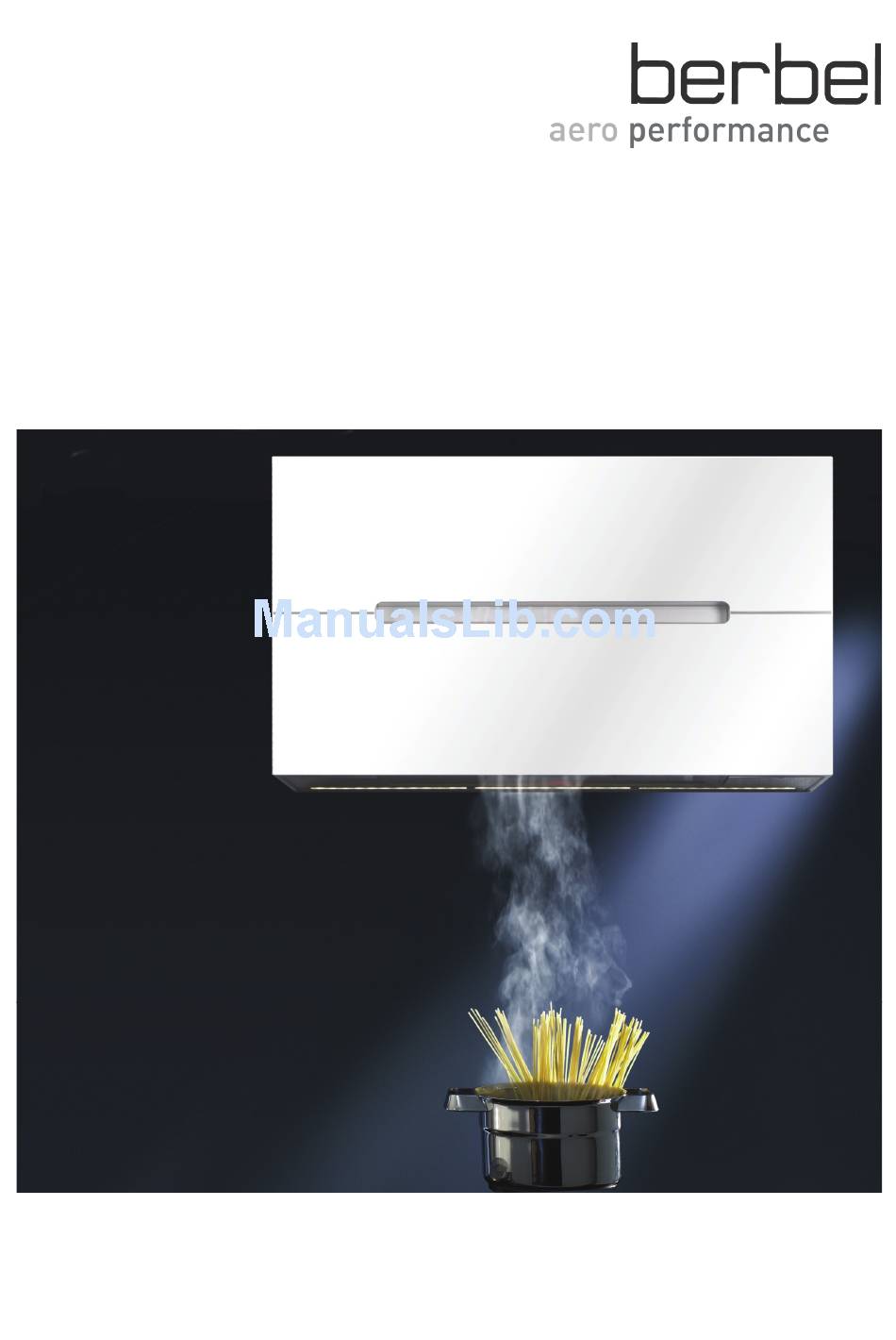

Page 1: Installation Instructions
BKH 90/120 CB Air extraction and recirculated air mode Installation instructions 12/2009 English version of original German instructions... -
Page 2: Numbers (1.
In The illustrations contain portrayals in various grey the following text, our berbel headroom hood BKH scales. Movements which are to be carried out are 90/120 CB product is briefly referred to as device. -
Page 3: Table Of Contents
Table of contents Safety ................................5 Proper use ................................5 Ban on independent conversions and modifications ..................5 Basic safety instructions .............................5 Structural features of the information on dangers ....................7 Structural features of notices regarding material or environmental damage............7 Description...............................8 Recirculated air mode............................8 Air extraction mode............................10 Air extraction mode............................14 Outgoing air in the separate outgoing air duct ....................15... - Page 4 Inserting the recirculating air filters (recirculated air device only) ..............43 Installing the removed parts ..........................43 Cleaning surfaces ............................47 Dismantling the device...........................48 Disposal.................................49 Disposing of packaging.............................49 deviceDisposal..............................49 Technical data ...............................50 Model plate ...............................50 BKH 90 CB ...............................50 BKH 120 CB ..............................50 Contacting the manufacturer..........................51...
-
Page 5: Safety
• Check the device and all parts for visible damage. In the event of damage, contact your specialist Proper use dealer or the berbel customer service. The device must only be used in flawless condition. The device can be used to extract cooking vapours during cooking. - Page 6 Safety • Only use the device if it is connected and fused Avoiding fire hazard according to the technical data. In air extraction and recirculated air mode: • Do not kink or crush the mains cable. • Make sure that the cooker top has cooled down •...
-
Page 7: Structural Features Of The Information On Dangers
Safety Avoiding risks of injury DANGER • In order to prevent the risk of falling, use a stable stepladder for all work on the device, such as e.g. Notices containing the word DANGER replacing the filter, installing and cleaning the warn of a hazardous situation which device. -
Page 8: Description
Description Description berbel extractor hoods are developed according to the state-of-the-art. They meet the prescribed safety regulations and are intended for domestic use. Recirculated air mode The device intakes room air, filters the room air and The filter filling must be replaced at regular returns the cleaned room air into the room. - Page 9 Description Rear side of recirculated air device Ventilation cover Lower mounting holes Cable passage Fine adjustment plates (optional, spacing +2-5 Mounting with installation rails ...
-
Page 10: Air Extraction Mode
Description Recirculated air device connection dimensions 450 (BKH 90) 750 (BKH 120) 480 (BKH 90) 780 (BKH 120) Opening for cable passage Air extraction mode The device intakes room air, filters the room air and conducts the cleaned room air outside. Cleaning is carried out in several cleaning stages. - Page 11 Description Front side of air extraction device Ventilation cover Lower front flap with grease tray Device Rotary knob (switching on and off) Dirt strips LED light strip Fluff screen ...
- Page 12 Description Rear side of air extraction device Ventilation cover Mounting with installation rails Connection for outgoing air pipe Lower mounting holes Cable passage Fine adjustment plates (optional, spacing +2-5 ...
- Page 13 Description Air extraction device connection dimensions 450 (BKH 90) 750 (BKH 120) 480 (BKH 90) 780 (BKH 120) Opening for cable passage Opening for outgoing air pipe ...
-
Page 14: Air Extraction Mode
Installation must be carried out under adherence • Open the doors. to the official and legal regulations (e.g. state • Install a berbel wall box BMK. building ordinances). • Make sure that the open fireplace's prescribed In air extraction mode, the device intakes room air forced ventilation functions. -
Page 15: Outgoing Air In The Separate Outgoing Air Duct
Air extraction mode The device's optimal output is obtained if, when DANGER installing the outgoing air line, you ensure that: Fire hazard due to combustible • the outgoing air line is as short and direct as outgoing air line. possible If combustible outgoing air lines are •... - Page 16 BEH 60 O) and 150 mm in the case of 150 mm in accordance with systems (all other berbel extractor hoods). DIN 4102 Class A1. Each reduction of the outgoing air line generates If you use a chimney as an outgoing air line,...
- Page 17 Air extraction mode Make sure that the connection in the chimney is If the outgoing air line is routed through the roof, carried out using a bend which is bent upwards at you must ensure that: an angle of 90°. •...
- Page 18 Air extraction mode Make sure that • the slats of the louvered cover of the wall box are not narrow and thick • the slats of the louvered cover of the wall box are not positioned sharply downwards. • no insect screen is installed in the wall box. Insect screens impair the cross-section of the outgoing air line completely.
-
Page 19: Preparing For Installation
In the case of These installation engineers must have adequate other installation conditions, contact specialist trade knowledge. berbel Ablufttechnik GmbH and ask about alternative mounting options Necessary specialist trade knowledge includes: prior to installation. • Knowledge of the industrial safety regulations. -
Page 20: Required Tools And Material
Preparing for installation Required tools and material ATTENTION The following tools are required for installation: Damage to surfaces due to improper unpacking. Cut through the packing tape and retaining straps with a pair of scissors. Do not cut into the protective cardboard box. -
Page 21: Checking The Scope Of Delivery
Washers Check the supplied parts for damage. Recirculating air filters BUF 150 K If parts are damaged or missing, contact your specialist berbel dealer or the customer service. Air extraction device scope of delivery Number Designation Extractor hood... -
Page 22: Removing The Rotary Knob
Preparing for installation The sound signal is switched off in the factory Removing the rotary knob settings. The rotary knob must be removed prior to If you do not wish to change this setting, continue installation. reading the next chapter. A DIP switch has to be set on the device. - Page 23 Preparing for installation Loosen the lower cover's two screws (1) using a Pull the connector, together with the connection standard screwdriver. cable, to the right from the control electronics. Carefully fold the cover open approx. 45°. The connector for the lighting is located above this connector.
-
Page 24: Removing The Fluff Screen
Preparing for installation The following illustration shows how the sound is Make sure that the rotary knob is removed. switched off. Lay the device, with the front panels facing up, on a flat, protective surface. Pull on the rounded upper edge of the lower front flap until the front flap is completely open. - Page 25 Preparing for installation hooked into the extractor hood's frame and is Remove the four screws using the Allen key. secured with four screws. The two upper screws are located behind the dirt strips. The dirt strips must be removed. The dirt strips are held by magnets.
-
Page 26: Removing The Ventilation Cover
Preparing for installation Remove the five screws (1) for the ventilation Removing the ventilation cover cover (2). A Phillips screwdriver is required for this step. Turn the screws counter-clockwise to loosen them. ATTENTION Damage to the electronics when laying the device down on the rotary knob. Never lay the device down on the rotary knob. -
Page 27: Removing The Upper Front Panel
Preparing for installation Removing the upper front panel The upper front panel is hooked into the frame from above and is locked by two springs. Press the springs together (1.) and pull the front panel off upwards (2.). -
Page 28: Removing The Outgoing Air Line Cover (Air Extraction Device Only)
Preparing for installation Remove the thirteen screws (1) for the cover. Removing the outgoing air line cover (air extraction device only) A Phillips screwdriver is required for this step. Turn the screws counter-clockwise to loosen them. ATTENTION Damage to the electronics when laying the device down on the rotary knob. -
Page 29: Removing The Outgoing Air Line Flange (Air Extraction Device Only)
Preparing for installation Pre-assembling the outgoing air line Removing the outgoing air line flange connecting pipe (air extraction device (air extraction device only) only) A Phillips screwdriver is required for this step. Carry the following steps out with extreme precision. Proceed as follows to remove the flange for the If the connecting pipe is positioned incorrectly, outgoing air line:... -
Page 30: Pre-Assembling The Electrical Connection Cable (Air Extraction And Recirculated Air Device)
Preparing for installation Pre-assembling the electrical Remove the Wieland socket from the device. connection cable (air extraction and Connect the Wieland socket to the 0.5 m long recirculated air device) connection cable. The connection cable is pre-assembled. DANGER Fatal electric shock due to improperly carried out electrical work. -
Page 31: Releasing The Hooks For The Mountings
Preparing for installation Releasing the hooks for the mountings On installation, the device is hooked into the pre- assembled rails using two mountings. The mountings' hooks must be released prior to installation. Proceed as follows to release the mountings' hooks: Unscrew the screw for adjusting the distance from the wall approx. -
Page 32: Installing The Device
Use the enclosed mounting material exclusively for mounting on a solid wall construction. In the case of other installation conditions, contact berbel Ablufttechnik GmbH and ask about alternative mounting options prior to installation. Use mounting material which is suitable for the wall. - Page 33 Installing the device Use the following dimensional overview for Mark the position of the holes for the lower orientation in the case of the air extraction device. fastening points using a pencil and a spirit level. 450 (BKH 90) 750 (BKH 120) 480 (BKH 90) Mark the horizontal axis of the holes for the 780 (BKH 120)
-
Page 34: Drilling The Required Holes
Installing the device Drilling the required holes Drill the holes required for the fastening points (1.). DANGER Insert the enclosed plugs (2.). Fatal electrical shock due to drilling into an electrical cable. Never drill into electrical cables routed in the wall. Use a metal detector before drilling. -
Page 35: Attaching The Device
Installing the device Attaching the device Guide the connection cable through the cable passage opening and into the device from the DANGER rear side. Lift the device onto the installation rails with two Fatal electric shock due to a live cable persons. -
Page 36: Aligning The Device
Installing the device To access the lower fastening points, open the Aligning the device lower front flap and work through this opening. A spirit level and a Phillips screwdriver are required for this step. Adjustment Proceed as follows to align the device's body using the spirit level: Adjust the distance from the wall using the horizontal adjuster screws for the upper... -
Page 37: Securing The Device
Installing the device Connecting the outgoing air line (air Fine adjustment extraction device only) The procedure is identical for the air extraction and the recirculated air device. The air WARNING extraction device is shown. Open the lower front flap to access the lower Risk of falling during work carried out adjuster screws. - Page 38 Installing the device Insert the flange into the outgoing air line's pipe. Insert the four screws and tighten them. If necessary, rotate the flange (1) until the flange's four screw holes align with the four mounting holes on the fan box attachment. Insert the air extraction box cover (1.).
-
Page 39: Connection Contact For Wall Box And Window Switch (Multi-Function Contact)
DIN 57100/VDE 0100, Part 701). Actuation contact, potential-free A window switch and a berbel wall box (e.g. BMK-F) Control box for the berbel extractor hood can be connected to the device. The cable terminals are located in the upper corner of the Connection terminal for the wall box control box in the device. - Page 40 Connection of the BMK-F series wall box is described in the following section. For this step, a small standard screwdriver is required for the connection terminals in the berbel extractor hood. Route the wall box control cable to the extractor hood.
- Page 41 Make sure that the control cable's wire connector For this step, a small standard screwdriver is sleeve is completely in the terminal. required for the connection terminals in the berbel Make sure that the control cable's insulation is not extractor hood.
-
Page 42: Creating The Electrical Voltage Supply
Installing the device Creating the electrical voltage supply Tighten the screw for terminal 1. Connect the Wieland socket to the Wieland connector. Connect wire 2 to "Window switch" terminal 2 in the same manner. The control cable for the wall switch is connected. -
Page 43: Inserting The Recirculating Air Filters (Recirculated Air Device Only)
Installing the device Position the recirculating air filter on the device Inserting the recirculating air filters from above using the folding handle. (recirculated air device only) WARNING Risk of falling when replacing filter. Use a stable stepladder. CAUTION Risk of injury due to falling parts. Make sure that nobody is standing beneath the device during work. - Page 44 Installing the device Tighten the screws (1). The front panel is installed. Fine adjustment can be carried out by securing in the desired position using an M4 screw. Installing the upper grease tray Pull on the rounded upper edge of the lower front Place the ventilation cover (2) onto the top of the flap until the front flap is completely open.
- Page 45 Installing the device Fold the upper grease tray closed. Inserting the fluff screen Insert the fluff screen back into the extractor hood. Install the four screws. Make sure that the fluff screen is seated correctly on the securing magnet. Installing the dirt strips Insert the dirt strips back into the extractor hood.
- Page 46 Installing the device Position the rotary knob in the correct installation position on the axle. Install the rotary knob by pressing it into the correct position on the axle. The berbel extractor hood is installed and ready to operate.
-
Page 47: Cleaning Surfaces
Cleaning surfaces Cleaning surfaces ATTENTION Damage to surfaces due to sharp- edged objects or aggressive cleaning agents. Never use sharp-edged objects, scouring agents or aggressive cleaning agents. Use a soft, moist cloth. Clean surfaces with a soft, moist cloth and a mild household cleaning agent. -
Page 48: Dismantling The Device
Dismantling the device Dismantling the device See section Removing the rotary knob on page 22. Remove the fluff screen. DANGER See section Removing the fluff screen on page 24. Fatal electric shock due to improperly carried out electrical work. Remove the recirculating air filter (recirculated air Only have work on the voltage device only). -
Page 49: Disposal
Disposal Disposal Dispose of the packaging according to material segregation and in an environmentally-friendly manner. Disposing of packaging DANGER deviceDisposal Danger of suffocation due to parts of the packaging (e.g. films and polystyrene). Store film or other parts of the packaging in a location which is inaccessible to children. -
Page 50: Technical Data
• Symbols of the legal regulations to which the LED bulb 24 V/24 W device adheres and test symbols. BKH 90 CB The device has been manufactured under adherence to the regulations of VDE 60335-2-31 Width 900 mm and complies with the following directives and laws:... -
Page 51: Contacting The Manufacturer
Contacting the manufacturer Contacting the manufacturer If you have any questions which are not answered by these instructions, contact: berbel Ablufttechnik GmbH Sandkampstraße 100 D-48432 Rheine Telephone +49 (0)800/56 06 06-0* +49 (0)800/56 06 06-1* Internet www.berbel.de *) Free from the German land line... - Page 52 © KONTECXT GmbH Technische Dokumentation D-45145 Essen www.technische-dokumentation.de Printed in Germany 6001049...
