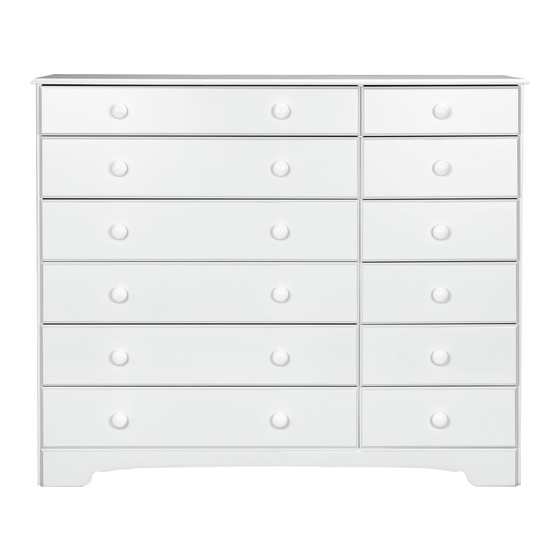

Nordic - 6x6 Drawer Chest
Assembly Instructions - Please keep for future reference
Dimensions
Width : 123.3 cm
Depth : 39,7 cm
Height : 104,2 cm
Important - Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline:
344024050
1663886
0845 640 30 30
- 11-11-2013
Advertisement
Related Manuals for Argos Nordic 1663886
Summary of Contents for Argos Nordic 1663886
- Page 1 Nordic - 6x6 Drawer Chest Assembly Instructions - Please keep for future reference 1663886 Dimensions Width : 123.3 cm Depth : 39,7 cm Height : 104,2 cm Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 0845 640 30 30 - 11-11-2013 344024050...
- Page 2 Safety and Care Advice Important - Please read these instructions fully before starting assembly Check you have all the Do not stand or put weight on components and tools listed on the product, this could cause pages 3 and 4. damage.
- Page 3 If you have damaged or missing components, call Components - Panels the Argos Customer Helpline: 0845 640 30 30 Please check you have all the panels listed below Plinth, back x2 Plinth, front V155855/P155855 V155801 1179x60x15 mm 1191x96x15 mm V155856...
- Page 4 If you have damaged or missing components, call Components - Fittings the Argos Customer Helpline: 0845 640 30 30 Please check you have all the panels listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
- Page 5 Assembly Instructions Step 1 Fix the drawer sides 13 to the drawer backs 14 and 15 as shown, using screws R . Step 2 Knock the dowels B into the holes indicated on the drawer sides 13 using a small hammer. Step 3 Slide the drawer bottoms 16 and 17 into the...
- Page 6 Assembly Instructions Step 5 Push the drawer fronts 8,9,10 and 11 onto the drawer sides 13 as shown. Push the cams C into the holes indicated. Arrow pointing towards the front. Turn the cams C to the right to fix the fronts 8,9,10 and 11.
- Page 7 Assembly Instructions Step 8 Knock down the dowels A into the holes indicated on the divider 6 using a small hammer. Step 9 Slide the top of the drawer runners S backwards. Fix the front end of the drawer runners S to the divider 6 using screws K into the hole indicated.
- Page 8 Assembly Instructions Step11 Screw the bolts D into the holes indicated on the sides 4 and 5. Fix the angle V to the sides 4 and 5 using screws E. Place the angles as shown. See details. Knock down the dowels A into the holes indicated on the sides 4 and 5 using a small...
- Page 9 Assembly Instructions Step 14 Screw the bolts D into the holes indicated on the top 1. Step 15 Place the divider 6 onto the top 1. It's important that the divider 6 is placed exactly as shown. Note the holes indicated. Push the cams C into the holes indicated.
- Page 10 Assembly Instructions Step 17 fix the back plinth 2 to the sides 4 and 5. Push cams C into the holes indicated on the back plinth 2 . Arrow pointing towards sides 4 and 5. Turn the cams C to the right to fix the sides 4 and 5.
- Page 11 Assembly Instructions Step 19 Turn around the chest so that it lies on its front edge. Place the front plinth 3 as shown. Fix the front plinth 3 to the sides 4 and 5 using screws E into the angles Fix the foot 12 onto the back plinth 2 using screw Step 20...
- Page 12 Assembly Instructions Step 21 Warning! The chest of drawers is Wallstrap and instruction heavy. Lift with care. It's recommended that the chest is fixed to the wall. Use fittings J. Follow the instructions included with the fittings. Step 22 Pull out the drawer runners.
