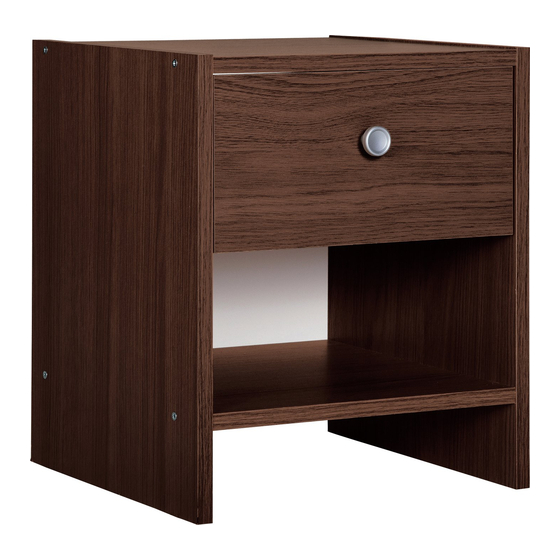

Seville - Bedside
Assembly Instructions -
Dimensions
Width - 35.5cm
Depth - 33cm
Height - 41.5cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 0870 112 1928
or email: Help@ClickSpares.co.uk (quoting your original order number)
Please keep for future reference
171/8140
170/9214
145/0446
157/3622
159/7732
160/9785
162/9325
162/7956
MADE IN
BRITAIN
Issue 2 - 12/12/13
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Argos Seville 171/8140
Summary of Contents for Argos Seville 171/8140
- Page 1 Seville - Bedside Assembly Instructions - 171/8140 Please keep for future reference 170/9214 145/0446 157/3622 159/7732 160/9785 162/9325 162/7956 Dimensions Width - 35.5cm Depth - 33cm MADE IN Height - 41.5cm BRITAIN Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 0870 112 1928 or email: Help@ClickSpares.co.uk (quoting your original order number) Issue 2 - 12/12/13...
-
Page 2: Care And Maintenance
Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 7kgs. space to layout the parts before recommend the Please lift with care. starting. - Page 3 If you have damaged or missing components, call the Components - Panels Customer Helpline: 0870 112 1928 or email: Help@ClickSpares.co.uk (quoting your original order number and the reference numbers below) Please check you have all the panels listed below Left Side Right Side 3 Top/Base (D2494A)
- Page 4 If you have damaged or missing components, call the Components - Fittings Customer Helpline: 0870 112 1928 or email: Help@ClickSpares.co.uk (quoting your original order number and the reference numbers below) Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
- Page 5 If you have damaged or missing components, call the Assembly Instructions Customer Helpline: 0870 112 1928 or email: Help@ClickSpares.co.uk (quoting your original order number and the reference numbers below) Step 1 Plain chipboard surface Prepare the drawer front Screw 2 metal dowels into the holes shown on the back of the drawer front...
- Page 6 Assembly Instructions Step 4 299mm Fit the drawer base Slide the drawer base down the grooves in the drawer sides and down into the groove in the drawer front Step 5 Fit the drawer back Fit the drawer back between the drawer sides Make sure that the drawer base...
- Page 7 Assembly Instructions Step 7 Attach the handle Attach the handle the drawer front using screw Step 8 Prepare the left side Separate the runners Finished F600 front edge Push fit the left runner marked ‘L’ into the left side Note: Runners must be be fitted flat against the panel.
- Page 8 Assembly Instructions Step 10 Plain chipboard surface Prepare the top and the base Tap 2 wooden dowels into the top and the base Finished front edge Step 11 Join the top to the right side Push the top onto the right side secure with 2 screws Finished Finished...
- Page 9 Assembly Instructions Step 13 Fit the left side Push the left side onto the assembly and secure with 4 screws Step 14 The measurement from top corner X to bottom corner X must be equal to the measurement from top corner Y to bottom corner Y Fit the back Square up the unit by making sure that...
- Page 10 If you need help or have damaged or missing parts, call the Customer Helpline: 0870 112 1928 or email: Help@ClickSpares.co.uk (quoting your original order number and the reference numbers on the component pages) Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW...
- Page 12 ALR2908...
