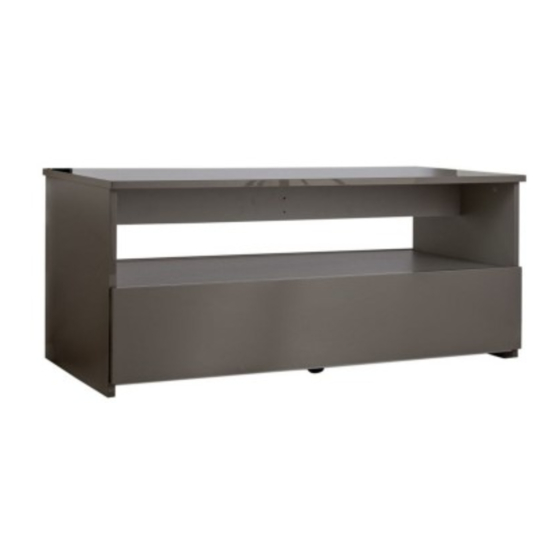

Aurora - Coffee Table
Assembly Instructions -
Dimensions
Width - 100cm
Depth - 49.5cm
Height - 43.5cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800
Please keep for future reference
147/1360
166/6553
417/9009
MADE IN
BRITAIN
Issue 4 - 26/05/15
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Argos Aurora 147/1360
Summary of Contents for Argos Aurora 147/1360
- Page 1 Aurora - Coffee Table Assembly Instructions - 147/1360 Please keep for future reference 166/6553 417/9009 Dimensions Width - 100cm Depth - 49.5cm MADE IN Height - 43.5cm BRITAIN Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800 Issue 4 - 26/05/15...
- Page 2 Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 26kgs. space to layout the parts before recommend the Please lift with care. starting.
- Page 3 If you have damaged or missing components, call the Components - Panels Customer Helpline: 03456 400800 quoting the reference numbers below Please check you have all the panels listed below Left Side 2 Right Side Horizontal (D2638A) (D2639A) (D2640A) (420 x 459mm) (420 x 459mm) (959 x 456mm) Back...
- Page 4 If you have damaged or missing components, call the Components - Fittings Customer Helpline: 03456 400800 quoting the reference numbers below Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
- Page 5 If you have damaged or missing components, call the Assembly Instructions Customer Helpline: 03456 400800 quoting the reference numbers below Step 1 Prepare the drawer front Screw 2 metal dowels into the holes shown on the back of the drawer front Note: Tighten the metal dowels up fully against...
- Page 6 Assembly Instructions Step 4 Fit the drawer base Slide the drawer base down the grooves in the drawer sides and down into the groove in the drawer front Step 5 Fit the drawer back Fit the drawer back between the drawer sides Make sure that the drawer base...
- Page 7 Assembly Instructions Step 7 Runners must be pushed up against Fit the runners to the the drawer front drawer Turn the drawer assembly over. Fit runner , marked with ‘R’, to the bottom edge of the right drawer side , as shown, making sure that it is pushed up against the back of the drawer front...
- Page 8 Assembly Instructions Step 9 Prepare the left side Finished front edge Tap a wooden dowel into the left side Screw 5 metal dowels into the left side Insert 2 large locking nuts into the left side Fit the runner to the left side The 1st screw uses...
- Page 9 Assembly Instructions Step 10 Prepare the right side Tap a wooden dowel into the right side Screw 5 metal dowels into the right side Insert 2 large locking Finished nuts into the right front edge side Fit the runner to the right side The 1st screw uses...
- Page 10 Assembly Instructions Step 11 Join the right side and horizontal Push the horizontal p l a onto the right side i n c h i p a r d Use a screwdriver to s u r f a c tighten the 2 large locking nuts fitted to the horizontal...
- Page 11 Assembly Instructions Step 14 Turn over 1 of the rails with a foot and fit the door push Fit a door plate to one of the rails using screws Press the door push into the door plate Press down the back of the door push to click Finished...
- Page 12 Assembly Instructions Step 16 Fit the left side Push the left side onto the assembly. Use a screwdriver to tighten the 5 large locking nuts fitted to the horizontal the rails Step 17 Fit the back Push the holes in the Finished back down onto the...
- Page 13 Assembly Instructions Step 18 Prepare the top Screw 4 metal dowels into the top Use the measurements of the holes to determine which is the front edge. Front 80mm edge 95mm Step 19 Fit the top Push the top down onto the assembly.
- Page 14 Adjustment If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800 and quote the reference numbers on the component pages. Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW...
- Page 16 ALR2939...
