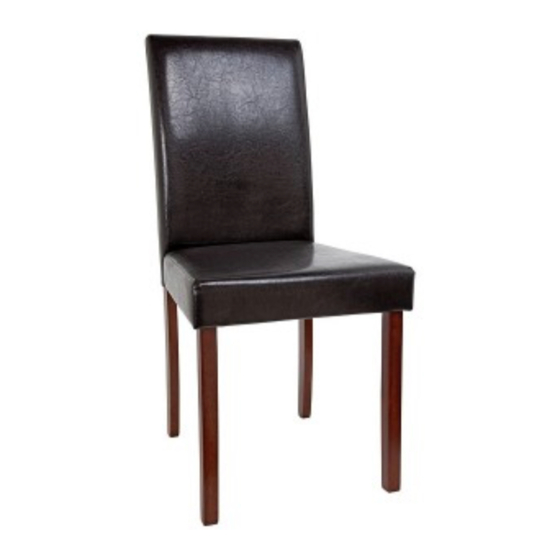

Dining Chair
Easy Assembly Instructions
Before you
start, here is
some helpful
advice
Argos Ltd MK9 2NW
DINING FURNITURE
1.
We suggest you spend a short time reading through this leaflet and then
follow the simple step by step instructions.
2.
Do not discard any of the packaging until you have checked that you have
all the parts and the pack of fittings.
3.
Assemble this product on a carpet.
4.
All you will need to assemble this unit is a screwdriver and light hammer.
5.
Keep glue and fittings out of children's reach
In the unlikely event that this product has missing or
damaged parts, please call 0845 640 0800 to obtain spares.
.
Page 1 of 4
Advertisement
Related Manuals for Argos 603/4135
Summary of Contents for Argos 603/4135
- Page 1 All you will need to assemble this unit is a screwdriver and light hammer. Keep glue and fittings out of children’s reach In the unlikely event that this product has missing or damaged parts, please call 0845 640 0800 to obtain spares. Argos Ltd MK9 2NW Page 1 of 4...
- Page 2 Component parts and fittings contained in the box Chair Fittings Bolt 90 mm 8 pcs Bolt 55 mm 10 pcs Washer 18 pcs Spring washer 16 pcs Hex Key 1 pc Total: 08 Parts for 2 chairs Page 2 of 4...
- Page 3 ASSEMBLY - STAGE ONE Chair Assembly 1. Locate the corners of the box seat opposite to the center hole. Insert the legs 02 and 03 into the corners of the box seat. Insert two bolts B, spring washers D and washers C through the each corner block of the box seat 04.
- Page 4 ASSEMBLY - STAGE ONE Chair Assembly 3. Assemble two bolts A, spring washers D and washers C through each corner block of the box seat to the back frame. Do not tighten the bolts at this point in time. 4. Carefully turn the chair over, and put the chair on the floor.
- Page 5 Dining Chair Assembly Instructions 603/4135 - Please keep for future reference 603/2333 603/2900 603/0452 602/9834 603/2364 Dimensions Width - 44cm Depth - 54cm Height - 92cm Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800...
- Page 6 Safety and Care Advice Important - Please read these instructions fully before starting assembly • Assemble this product on a flat • Discard all extra fittings and • We do not surface. keep fittings out of reach of recommend the children.
-
Page 7: Components - Parts
Components - Parts If you have damaged or missing components, call the Customer Helpline: 08456 400800 Please check you have all the parts listed below Backrest Seat Leg x 2 (36 x 10 x 92cm) (43.5 x 41 x 9.5cm) (3 x 3 x 43cm) Components - Fittings Please check you have all the fittings listed below... - Page 8 Assembly Instructions Step 1 Attaching legs Place the seat upside down on a flat protected surface. Insert the legs into the holes of the seat as shown and fix using bolts , spring washer washers . Tighten the bolts using allen key Important: Do not fully tighten bolts at...
- Page 9 Assembly Instructions Step 3 Aligning & securing the legs Carefully turn the chair upright and place on a flat surface. Tighten all bolts using allen key Note: This step is essential to prevent the chair from wobbling due to uneven legs. Carefully sit on the chair and make adjustments to ensure...
- Page 10 43.5cm...
- Page 12 Components - Panels ou have all the panels listed below Leg x 2 (3.2 Box seat (43.5 41.5 Back frame (36.5...
