Argos Malibu 184/8072 Assembly Instructions Manual

Argos Malibu 184/8072 Assembly Instructions Manual

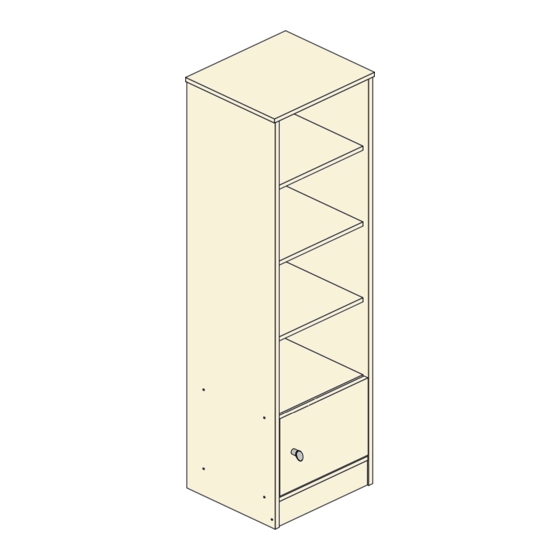

Tall media unit

Advertisement

Quick Links

Malibu - Tall Media Unit
Assembly Instructions -
Dimensions
Width - 37cm
Depth - 33cm
Height - 151.5cm
Important -
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800
Please keep for future reference
184/8072
190/3278
183/7825
171/5356
161/6929
189/7274
MADE IN
BRITAIN
Issue 1 - 15/11/13

Advertisement

loading
Need help?

Need help?

Do you have a question about the Malibu 184/8072 and is the answer not in the manual?

Questions and answers

Summary of Contents for Argos Malibu 184/8072

  • Page 1 Malibu - Tall Media Unit Assembly Instructions - 184/8072 Please keep for future reference 190/3278 183/7825 171/5356 161/6929 189/7274 Dimensions Width - 37cm Depth - 33cm MADE IN Height - 151.5cm BRITAIN Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 Issue 1 - 15/11/13...
  • Page 2: Care And Maintenance

    Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 18kgs. space to layout the parts before recommend the Please lift with care. starting.
  • Page 3 If you have damaged or missing components, call the Components - Panels Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the panels listed below (D2521A) (369 x 328mm) Horizontal (D2525A) (330 x 305mm) Left Side Right Side Base (D2522A)
  • Page 4 If you have damaged or missing components, call the Components - Fittings Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
  • Page 5 If you have damaged or missing components, call the Assembly Instructions Customer Helpline: 08456 400800 quoting the reference numbers below Step 1 If you would If you would like your door like your door Choose which way to open this to open this you would like the way, fit the...
  • Page 6 Assembly Instructions Step 4 Plain chipboard Plain chipboard surface Prepare the base and surface the plinth Tap 2 wooden dowels into the base Finished front edge Tap 2 wooden dowels into the plinth Note: The base is larger than the horizontal (see panels page). Step 5 Fit the base to the right side...
  • Page 7 Assembly Instructions Step 7 Plain chipboard surface Prepare the horizontal Tap 2 wooden dowels into the horizontal Finished front edge Step 8 Fit the horizontal Push the horizontal onto the right side and secure with 2 screws Finished front edge Step 9 Fit the left side Push the left side...
  • Page 8 Assembly Instructions Step 10 Prepare the top Screw 4 metal dowels into the top Note: Tighten the metal dowels up fully against the panel. Fix the bracket in the middle of the top Finished flush to the back edge front edge using screw Step 11 Fit the top...
  • Page 9 Assembly Instructions Step 12 The measurement from top corner X to bottom corner X must be Fit the back equal to the measurement from top corner Y to bottom corner Y Square up the unit by making sure that measurement x to x equals y to y.
  • Page 10 Assembly Instructions Step 14 Fit door and handle Note: The easiest way to attach the door is to fit the top hinge first, then align and fit the other hinge. Push the hinge onto the front part of the hinge plate The recess at the bottom of screw B goes into the slot in the hinge plate.
  • Page 11 Assembly Instructions Step 15 Adjust the door if needed Before adjusting the door, use a spirit level to check the top (or base) of the unit is level, front- to-back and side-to-side in the 3 positions shown. Use suitable packing pieces (not supplied) to make the unit level BEFORE making any...
  • Page 12 If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 and quote the reference numbers on the component pages. Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW ALR2928...
  • Page 13 Malibu - Tall Media Unit Assembly Instructions - 184/8072 Please keep for future reference 190/3278 183/7825 171/5356 161/6929 189/7274 Dimensions Width - 37cm Depth - 33cm MADE IN Height - 151.5cm BRITAIN Important - Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 Issue 2 - 25/03/14...
  • Page 14 Safety and Care Advice Important - Please read these instructions fully before starting assembly • Warning: This unit weighs • Make sure you have enough • We do not approximately 18kgs. space to layout the parts before recommend the Please lift with care. starting.
  • Page 15 If you have damaged or missing components, call the Components - Panels Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the panels listed below (D2521A) (369 x 328mm) Horizontal (D2525A) (330 x 305mm) Left Side Right Side Base (D2522B)
  • Page 16 If you have damaged or missing components, call the Components - Fittings Customer Helpline: 08456 400800 quoting the reference numbers below Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
  • Page 17 If you have damaged or missing components, call the Assembly Instructions Customer Helpline: 08456 400800 quoting the reference numbers below Step 1 If you would If you would like your door like your door Choose which way to open this to open this you would like the way, fit the...
  • Page 18 Assembly Instructions Step 4 Plain chipboard Plain chipboard surface Prepare the base and surface the plinth Tap 2 wooden dowels into the base Finished front edge Tap 2 wooden dowels into the plinth Note: The base is larger than the horizontal (see panels page). Step 5 Fit the base to the right side...
  • Page 19 Assembly Instructions Step 7 Plain chipboard surface Prepare the horizontal Tap 2 wooden dowels into the horizontal Finished front edge Step 8 Fit the horizontal Push the horizontal onto the right side and secure with 2 screws Finished front edge Step 9 Fit the left side Push the left side...
  • Page 20 Assembly Instructions Step 10 Prepare the top Screw 4 metal dowels into the top Note: Tighten the metal dowels up fully against the panel. Finished Fix the bracket in the front edge middle of the top flush to the back edge using screw Step 11 Fit the top...
  • Page 21 Assembly Instructions Step 13 The measurement from top corner X to bottom corner X must be Fit the back equal to the measurement from top corner Y to bottom corner Y Square up the unit by making sure that measurement x to x equals y to y.
  • Page 22 Assembly Instructions Step 15 Fit door and handle Note: The easiest way to attach the door is to fit the top hinge first, then align and fit the other hinge. Push the hinge onto the front part of the hinge plate The recess at the bottom of screw B goes into the slot in the hinge plate.
  • Page 23 Assembly Instructions Step 16 Adjust the door if needed Before adjusting the door, use a spirit level to check the top (or base) of the unit is level, front- to-back and side-to-side in the 3 positions shown. Use suitable packing pieces (not supplied) to make the unit level BEFORE making any...
  • Page 24 If you need help or have damaged or missing parts, call the Customer Helpline: 08456 400800 and quote the reference numbers on the component pages. Argos Ltd, 489-499 Avebury Boulevard, Central Milton Keynes, MK9 2NW ALR3032...
