4. Power Supply

EAP110
■

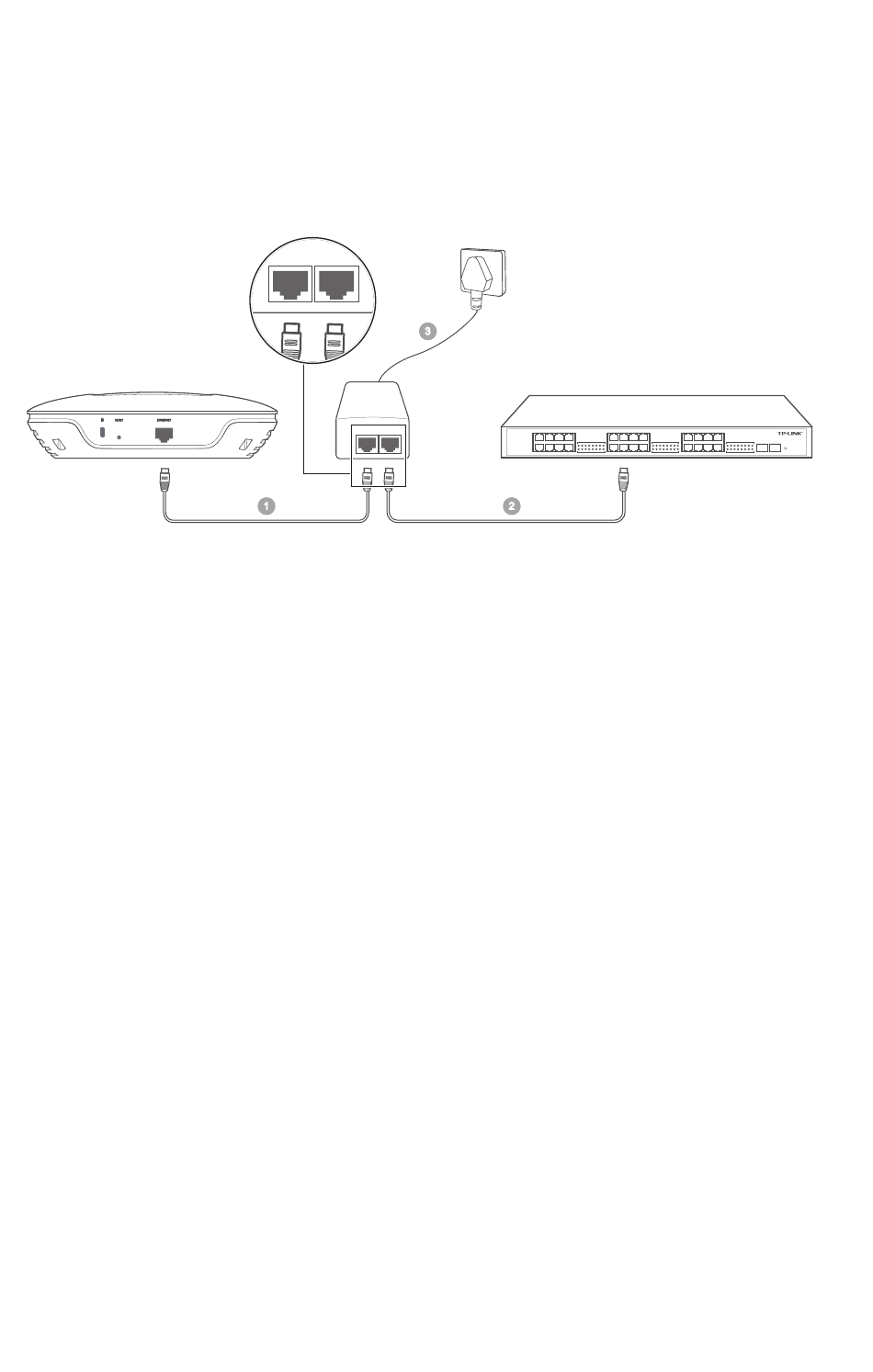

The EAP110 can be powered with the provided PoE adapter.
EAP110
1. Connect the ETHERNET port of EAP110 to the POE port of the PoE adapter
through an Ethernet cable. The cable length can be up to 100 meters.
2. Connect the Ethernet cable from the switch to the LAN port of the PoE
adapter.
3. Plug the female connector of the power cord into the PoE adapter, and the
male connector to a power outlet.
11
POE LAN
POE LAN
1
(Up to 100m)
3
PoE Adapter
2
Switch
