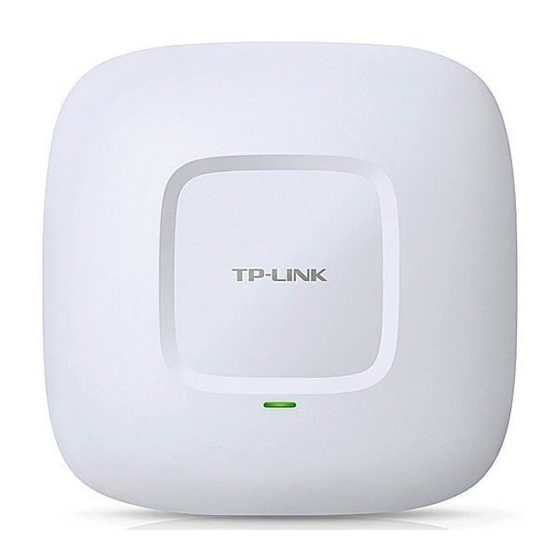

You can connect a wireless CCTV camera to the TP-Link EAP110 by following these steps:

1. Set Up the EAP110
- Power on the EAP110 and ensure it is properly installed (ceiling or wall-mounted).
- Connect it to your network using an Ethernet cable if needed.

2. Configure the EAP110
- Use the Omada app or web interface to access the EAP110 settings.
- Set up the device as a wireless access point.
- Create an SSID and password for the wireless network.

3. Connect the Camera
- Power on the wireless CCTV camera.
- Go to the camera’s network settings and connect it to the SSID of the EAP110.

4. Test the Connection
- Ensure the camera is accessible from the local network.
- If remote access is needed, configure port forwarding on the main router.

According to TP-Link support, the EAP110 should have no issues syncing with a wireless IP camera.

This answer is automatically generated

Summary of Contents for TP-Link EAP110

Page 1: User Guide
User Guide For TP-Link Omada Access Points EAP110 / EAP115 / EAP225 / EAP245 / EAP320 / EAP330 / EAP115-Wall / EAP110-Outdoor 1910012174 REV 3.0.1 July 2017...
Page 2: Table Of Contents
CONTENTS About this User Guide ......................1 Overview ..........................2 1 Quick Start ........................4 Determine the Management Method ....................5 Build the Network Topology ........................6 Log in to the EAP ............................6 Log in via the Domain Name ........................7 Log in via the IP Address of the EAP .......................
Page 3 3 Monitor the Network ....................51 Monitor the EAP ............................52 View Device Information ........................... 53 View Wireless Settings ..........................54 View LAN Information..........................54 View Client Information ..........................55 View LAN Traffic ............................56 View Radio Traffic ............................57 Monitor the SSIDs ............................58 Monitor the Clients ..........................59 View the Users ..............................
Page 4 Configure Daylight Saving Time ......................77 Reboot and Reset the EAP ........................79 Backup and Restore the Configuration....................80 Update the Firmware ..........................80 6 Application Example ....................82 Determine the Network Requirements ....................83 Build the Network Topology .........................83 Log in to the EAP ............................84 Configure the EAP ...........................85 Configure SSIDs ............................
Page 5: About This User Guide
Unless otherwise noted, the introduction in this guide takes EAP245 as an example. More Info The latest software, management app and utility can be found at Download Center at http://www.tp-link.com/support The Quick Installation Guide can be found where you find this guide or inside the package of the EAP.
Page 6: Overview
They can either work independently as standalone APs or be centrally managed by the EAP Controller software, providing a flexible, richly-functional but easily configured wireless network for small and medium business and households. The following figure shows the top view of EAP110/EAP115/EAP225/EAP320/EAP330: The following figure shows the top view of EAP245:...
Page 7 The following figure shows the front view of EAP115-Wall: The following figure shows the front view of EAP110-Outdoor:...
Page 8: Quick Start
Quick Start This chapter introduces how to build a wireless network using the EAPs and how to complete the basic settings. Follow the steps below: 1. Determine the Management Method 2. Build the Network Topology 3. Log in to the EAP 4.
Page 9: Determine The Management Method
Controller, refer to the User Guide of EAP Controller. To download EAP Controller and its User Guide, go to http://www.tp-link.com/en/download/EAP-Controller.html  Via the Web Page of the EAP If you have a relatively small-sized wireless network and only one or just a small number of EAPs need to be managed, you can directly use the web browser to manage each EAP on its own management web page.
Page 10: Build The Network Topology
1.2 Build the Network Topology To manage the EAPs in Standalone mode, refer to the following topology. Router (DHCP Server) Switch Internet LAN: 192.168.0.1 IP: 192.168.0.100 Clients • The router is the gateway of the network, and devices in the LAN surf the internet via the router.
Page 11: Log In Via The Domain Name
Log in via the Domain Name In this method, you needn't know the IP address of the EAP, but you need to prepare a wireless client device, such as a wireless laptop. Follow the steps below to log in to the EAP wirelessly: 1. Find the default SSID of the EAP.
Page 12: Log In Via The Ip Address Of The Eap
EAP according to its MAC address. The MAC address can be found at the bottom of the EAP. • Go to http://www.tp-link.com/en/download/EAP-Controller.html#EAP_Discovery_ Tool to download EAP Discovery Utility. EAP Discovery Utility is a software that can scan all EAPs in the same network segment. Install and launch EAP Discovery Utility...
Page 13 on the PC, and find the IP address of the EAP. In the following figure, the IP address of the EAP is 192.168.0.5. 2. Launch a web browser and enter 192.168.0.5 in the address bar to load the login page of the EAP. Use admin for both of the username and password to log in.
Page 14: Edit The Ssid
3. In the pop-up window, configure a new username and a new password for your user account. 4. Use the new username and password to log in. iipe To facilitate access to the EAP via a wired device, you can set a static IP address for the EAP and remember it well or write it down.
Page 15 1. Go to the Wireless > Wireless Settings page. In the SSIDs section, click in the Modify column of the SSID entry.
Page 16 2. The following page will appear. Change Security Mode from None to WEP, WPA- Enterprise or WPA-PSK. Configure the related parameters and click OK. We recommend that you choose WPA-PSK. For details, refer to Configure SSID iipe If needed, you can also create more new SSIDs. For detailed instructions about how to create ·...
Page 17: Configure And Manage The Eap
1.5 Configure and Manage the EAP After all the steps above are completed, the legal wireless clients can enjoy the internet via the EAP. Additionally, you can configure the advanced functions of the EAP according to your need, and manage it conveniently on the web page. On the top of the page, you can click to log out and click to open the technical...
Page 18: Configure The Network
Configure the Network This chapter introduces how to configure the network parameters and the advanced features of the EAP, including: Configure the IP Address of the EAP · Configure the Wireless Parameters · Configure Portal Authentication · ...
Page 19: Configure The Ip Address Of The Eap
2.1 Configure the IP Address of the EAP The IP address of the EAP can be a dynamic IP address assigned by the DHCP server or a static IP address manually specified by yourself. By default, the EAP gets a dynamic IP address from the DHCP server.
Page 20 · Dynamic If you choose Dynamic as the IP address mode, make sure that there is a reachable DHCP server on your network and the DHCP sever is properly configured to assign IP address and the other network parameters to the EAP. For network stability, you can also configure the fallback IP parameters for the EAP: Fallback IP With the fallback IP configured, if the EAP fails to get an IP address from a...
Page 21 IP Mask Specify the network mask. Gateway Specify the network gateway. 3. Click Save.
Page 22: Configure The Wireless Parameters
2.2 Configure the Wireless Parameters To configure the wireless parameters, go to the Wireless > Wireless Settings page. The following sections introduce these contents: Configure Basic Wireless Settings Configure SSIDs Cofigure Wireless Advanced Settings Configure Load Balance...
Page 23: Configure Basic Wireless Settings
Ntte For a dual-band EAP, there are two bands: 2.4GHz and 5GHz. The wireless parameters are · separately set on each band. You can click to select a band and configure the wireless parameters on this band. The following figures take 2.4GHz as an example. ·...
Page 24 Channel Width Select the channel width. According to IEEE 802.11n standard, using a higher bandwidth can increase wireless throughput. However, you may choose a lower bandwidth due to the following reasons: · To increase the available number of channels within the limited total ...
Page 25: Configure Ssids
Configure SSIDs SSID (Service Set Identifier) is used as an identifier for a wireless LAN, and is commonly called as the “network name“. Clients can find and access the wireless network through the SSID. For one EAP, you can build up to eight SSIDs per frequency band. Follow the steps below to create an SSID on the EAP: 1. If your EAP is a dual-band device, click to choose a frequency band on...
Page 26 Wireless VLAN Set a VLAN ID for the wireless network. It supports maximum 8 VLANs per frequency band. With this feature, the EAP can work together with the switches supporting 802.1Q VLAN. The EAP adds different VLAN tags to the clients which are connected to the corresponding wireless network.
Page 27 than WEP, we recommend that you choose WPA-PSK or WPA-Enterprise if your clients also support them. Ntte WEP is not supported in 802.11n mode or 802.11ac mode. If WEP is applied in 802.11n, 802.11 ac or 802.11n/ac mixed mode, the clients may not be able to access the wireless network. If WEP is applied in 802.11b/g/n mode (2.4GHz) or 802.11a/n (5GHz), the EAP may work at a low transmission rate.
Page 28 · WPA-Enterprise WPA-Enterprise (Wi-Fi Protected Access-Enterprise) is a safer encryption method compared with WEP and WAP-PSK. It requires a RADIUS server to authenticate the clients via 802.1X and EAP (Extensible Authentication Protocol). WPA-Enterprise can generate different passwords for different clients, which ensures higher network security. But it also costs more to maintain the network, so it is more suitable for business networks.
Page 29 Group Key Update Specify an update period of the encryption key. The update period Period instructs how often the EAP should change the encryption key. 0 means that the encryption key does not change at anytime. · WPA-PSK WPA-PSK (Wi-Fi Protected Access-PSK) is based on a pre-shared key. It is characterized by high safety and simple settings, so it is mostly used by common households and small businesses.
Page 30: Cofigure Wireless Advanced Settings
Group Key Specify an update period of the encryption key. The update period instructs Update Period how often the EAP should change the encryption key. 0 means that the encryption key does not change at anytime. Cofigure Wireless Advanced Settings Configure the advanced wireless parameters of the EAP and click Save.
Page 31 RTS Threshold RTS/CTS (Request to Send/Clear to Send) is used to improve the data transmission efficiency of the network with hidden nodes, especially when there are lots of large packets to be transmitted. When the size of a data packet is larger than the RTS Threshold, the RTS/ CTS mechanism will be activated.
Page 32: Configure Load Balance
Configure Load Balance With the Load Balance feature, you can limit the maximum number of clients who can access the EAP. In this way, you can achieve rational use of network resources. Follow the steps below to configure Load Balance: 1. Click to choose a frequency band on which the load balance feature will take effect.
Page 33: Configure Portal
To configure portal authentication, go to the Wireless > Portal page. Configure Portal Three portal authentication types are available: No Authentication Local Password External Radius Server . The following sections introduce how to configure each authentication type.
Page 34 · No Authentication With this authentication type configured, clients can pass the authentication and access the network without providing any login information. They only need to accept the term of use on the authentication page. Follow the steps below to configure No Authentication as the portal authentication type: 1. Select No Authentication as the authentication type.
Page 35 Portal Configure the authentication page. Local Web Portal is the only available Customization option in this authentication type. Enter the title and term of use in the two boxes. The EAP uses its built-in web server to provide this authentication page for clients.
Page 36 Authentication Specify the value of authentication timeout. Timeout A client’s authentication will expire after the authentication timeout and the client needs to log in to the authentication page again to access the network. Options include 1 Hour, 8 Hours, 24 Hours, 7 Days, and Custom. With Custom selected, you can customize the time in days, hours, and minutes.
Page 37 · External Radius Server If you have a RADIUS server on the network to authenticate the clients, you can select External Radius Server. Clients need to provide the correct login information to pass the authentication. Follow the steps below to configure External Radius Server as the portal authentication type: 1. Build a Radius server on the network and make sure that it is reachable by the EAP.
Page 38 Authentication Specify the value of authentication timeout. Timeout A client’s authentication will expire after the authentication timeout and the client needs to log in to the authentication page again to access the network. Options include 1 Hour, 8 Hours, 24 Hours, 7 Days, and Custom. With Custom selected, you can customize the time in days, hours, and minutes.
Page 39: Configure Free Authentication Policy
Configure Free Authentication Policy Free Authentication Policy allows some specific clients to access the specific network resources without authentication. For example, you can set a free authentication policy to allow clients to visit the external web portal server before authenticated. In this way, the clients can visit the login page provided by the web portal server and then pass the subsequent authentication process.
Page 40 Source MAC Specify the MAC address of the client, who can access the specific Address resources without authentication. Leaving the field empty means that clients with any MAC address can access the specific resources. Destination Port Specify the port number of the service. When using this service, the clients can access the specific resources without authentication.
Page 41: Configure Mac Filtering
2.4 Configure MAC Filtering MAC Filtering is used to allow or block the clients with specific MAC addresses to access the network. With this feature you can effectively control clients’ access to the wireless network according to your needs. To configure MAC Filtering, go to the Wireless > MAC Filtering page. Follow the steps below to configure MAC Filtering on this page: 1. In the Settings section, check the box to enable MAC Filtering, and click Save.
Page 42 2. In the Station MAC Group section, click and the following page will appear. 1 ) Click and specify a name for the MAC group to be created. Click OK. You can create up to eight MAC groups. 2 ) Select a MAC group in the group list (the color of the selected one will change to blue).
Page 43: Configure Scheduler
For example, the following configuration means that the hosts in Group 2 are denied to access the SSID TP-LINK_2.4GHz_17A6E2 on the 2.4GHz band and allowed to access the SSID TP-LINK_5GHz_17A6E3 on the 5GHz band. 2.5 Configure Scheduler With the Scheduler feature, the EAP or its wireless network can automatically turn on or off at the time you set.
Page 44 Follow the steps below to configure Scheduler on this page: 1. In the Settings section, check the box to enable Scheduler and select the Association Mode. There are two modes: Associated with SSID (the scheduler profile will be applied to the specific SSID) and Associated with AP (the profile will be applied to all SSIDs on the EAP).
Page 45 2 ) Select a profile in the list (the color of the selected one will change to blue). Click to add time range items to the profile. Specify the Day, Start Time and End Time of the time range, and click OK. iipe You can add up to eight time range items for one profile.
Page 46: Configure Qos
For example, the following configuration means that during the time range defined in Profile2, the radio of SSID TP-LINK_2.4GHZ_17A6E2 is on and the radio of SSID TPLINK_5GHz_17A6E3 is off.  Association with AP If you select Association with AP in step 1, the Scheduler Association table will display the name and MAC address of the EAP.
Page 47 To configure QoS, go to the Wireless > QoS page. Follow the steps below to configure QoS on this page: 1. Click to choose a frequency band to be configured. 2. Check the box to enable Wi-Fi Multimedia (WMM). With WMM enabled, the EAP uses the QoS function to guarantee the high priority of the transmission of audio and video packets.
Page 48 3. In the AP EDCA Parameters section, configure the AP EDCA ((Enhanced Distributed Channel Access) parameters. AP EDCA parameters affect traffic flowing from the EAP device to the client station. The following table detailedly explains these parameters. The following table detailedly explains these parameters: Queue Displays the transmission queue.
Page 49 Maximum Burst Maximum Burst specifies the maximum burst length allowed for packet bursts on the wireless network. A packet burst is a collection of multiple frames transmitted without header information. The decreased overhead results in higher throughput and better performance. 4. In the Station EDCA Parameters section, configure the station EDCA (Enhanced Distributed Channel Access) parameters.
Page 50: Configure Rogue Ap Detection
Maximum The upper limit (in milliseconds) for the doubling of the random backoff Contention value. This doubling continues until either the data frame is sent or the Window Maximum Contention Window size is reached. This value must be higher than the value of Minimum Contention Window.
Page 51: Detect Rogue Aps & Move The Rogue Aps To The Trusted Ap List
To configure Rogue AP Detection, go to the Wireless > Rogue AP Detection page. Detect Rogue APs & Move the Rogue APs to the Trusted AP List Follow the steps below to detect the nearby APs and move the trusted ones to the Trusted AP list.
Page 52 3. Wait for a few seconds without any operation. After detection is finished, the detected APs will be displayed in the list. The following table introduces the displayed information of the APs: Displays the MAC address of the AP. SSID Displays the SSID of the AP. Band Displays the frequency band the AP is working on.
Page 53: Manage The Trusted Ap List
5. View the trusted APs in the Trusted AP List section. To move the specific AP back to the Rogue AP list, you can click in the Action column. Manage the Trusted AP List You can download the trusted AP list from your local host to the EAP or backup the current Trusted AP list to your local host.
Page 54 5. Click Save to import the trusted AP list. · Backup the Trusted AP List to the Host You can backup the current trusted AP list and save the backup file to the local host. Follow the steps below to backup the current trusted AP list: 1. On this page, check the box to choose Backup (AP to PC).
Page 55: Monitor The Network
Monitor the Network This chapter introduces how to monitor the running status and statistics of the wireless network, including: Monitor the EAP · Monitor the SSIDs · Monitor the Clients ·...
Page 56: Monitor The Eap
3.1 Monitor the EAP You can view the information of the EAP, including device information, wireless settings, LAN information, client information, LAN traffic and radio traffic. To monitor the EAP information, go to the Monitoring > AP page. The AP List displays the following information: Device Name Displays the name of the EAP.
Page 57: View Device Information
View Device Information Under this tab, you can view the device information of EAP. The following device information is displayed: Device Name Displays the name of the EAP. The name consists of the product model followed with the MAC address of the EAP. Device Model Displays the product model of the EAP.
Page 58: View Wireless Settings
View Wireless Settings Under this tab, you can view the wireless settings of EAP. iipe To change the wirless settings, you can refer to Configure the Wireless Parameters Ntte For a dual-band EAP, there are two bands: 2.4GHz and 5GHz. You can click to select a band to ·...
Page 59: View Client Information
The following LAN information is displayed: MAC Address Displays the MAC address of the EAP. IP Address Displays the IP address of the EAP. Subset Mask Displays the subnet mask of the EAP. LAN Port Displays the maximum physical transmission rate and duplex mode of the port.
Page 60: View Lan Traffic
View LAN Traffic Under this tab, you can view the LAN traffic of EAP. The following traffic information of the LAN is displayed: Rx Packets Displays the total number of received packets in the LAN since the EAP starts up. Tx Packets Displays the total number of sent packets in the LAN since the EAP starts Rx Bytes...
Page 61: View Radio Traffic
View Radio Traffic Under this tab, you can view the radio traffic of EAP. The following traffic information of the radio is displayed: Rx Packets Displays the total number of the received packets on the 2.4GHz/5GHz band since the EAP starts up. Tx Packets Displays the total number of the sent packets on the 2.4GHz/5GHz band since the EAP starts up.
Page 62: Monitor The Ssids
3.2 Monitor the SSIDs You can monitor the SSID information of the EAP. To monitor the SSID information, go to the Monitoring > SSID page. The following table introduces the displayed information of the SSID: SSID Displays the SSID name. VLAN ID Displays the VLAN ID of the SSID.
Page 63: Monitor The Clients
3.3 Monitor the Clients You can monitor the information of the clients connected to the EAP. To monitor the client information, go to the Monitoring > Client page. There are two types of clients: users and portal authenticated guests. Users are the clients that connect to the SSID with portal authentication disabled.
Page 64: View And Manage The Portal Authenticated Guests
CCQ (%) Displays the wireless Client Connection Quality (CCQ) of the user. CCQ refers to the ratio between the current effective transmission bandwidth and the theoretical maximum available bandwidth. CCQ reflects the quality of the actual link. A bigger value means a better utilization of the bandwidth. Rate (Mbps) Displays the wireless transmission rate of the user.
Page 65: Manage The Eap
Manage the EAP The EAP provides powerful functions of device management and maintenance. This chapter introduces how to manage the EAP, including: Manage System Logs · Configure Web Server · Configure Management Access · Configure Trunk (For EAP330) ·...
Page 66: Manage System Logs
4.1 Manage System Logs System logs record information about hardware, software as well as system issues and monitors system events. With the help of system log, you can get informed of system running status and detect the reasons for failure. To manage system logs, go to the Management >...
Page 67: View System Logs
View System Logs In the Log section, you can click to refresh the logs and view them in the table. Configure the Way of Receiving Logs In the Log Settings section, you can configure the ways of receiving system logs. Follow the steps below to configure this feature: 1. Check the corresponding box to enable one or more ways of receiving system logs, and configure the related parameters.
Page 68 Ntte SSL encryption is not currently supported. The following table introduces how to configure these parameters: From Enter the sender’s E-mail address. Enter the receiver’s E-mail address. SMTP Server Enter the IP address of the sender’s SMTP server. Note: At present, the domain name of SMTP server is not supported in this field.
Page 69: Backup Logs (For Eap320/Eap330/Eap225)
 Server If Server is configured, system logs will be sent to the specified system log server, and you can use the syslog software to view the logs on the server. Enable this feature and enter the IP address and port of the system log server.  ...
Page 70: Configure Management Access
To configure Web Server, go to the Management > Web Server page. Follow the steps below to configure Web Server: 1. Refer to the following table to configure the parameters: HTTPS HTTPS (Hypertext Transfer Protocol Secure) function is based on the SSL or TLS protocol.
Page 71: Configure Trunk (For Eap330)
To configure Management Access, go to the Management > Management Access page. Follow the steps below to configure Management Access on this page: 1. Check the box to enable MAC Authentication. 2. Specify one or more MAC addresses in the MAC1/MAC2/MAC3/MAC4 fields. Up to four MAC addresses can be added.
Page 72: Configure Led
To configure Trunk, go to the Management > Trunk page. Follow the steps below to configure Trunk on this page: 1. Check the box to enable Trunk. 2. Select the trunk algorithm mode from the drop-down list. Three options are available: SRC MAC+DST MAC, DST MAC and SRC MAC. Based on the selected algorithm mode, the EAP determines which physical port is used to send out the received packet.
Page 73: Configure Wi-Fi Control (For Eap115-Wall)
Check the box to turn on or turn off the LED light of the EAP, and click Save. 4.6 Configure Wi-Fi Control (For EAP115-Wall) EAP115-Wall has an LED/Wi-Fi button on the front panel. With Wi-Fi Control enabled, you can press the button to turn on or off both of the Wi-Fi and LED at the same time. To configure Wi-Fi Control, go to the Management >...
Page 74: Configure Management Vlan
1. Enter the port number of the SSH server. 2. Check the box to enable SSH Login. By default, it is disabled. 3. Click Save. 4.8 Configure Management VLAN Management VLAN provides a safer method to manage the EAP. With Management VLAN enabled, only the hosts in the Management VLAN can access the web page of the EAP. Since most hosts cannot process VLAN TAGs, you can connect the management host to the network via a switch, and set up correct VLAN settings for the switches on the network to ensure the communication between the host and the EAP in the Management VLAN.
Page 75 To configure the EAP as an SNMP agent, go to the Management > SNMP page. Follow the steps below to complete the configuration on this page: 1. Check the box to enable SNMP Agent. 2. Refer to the following table to configure the required parameters: SysContact Enter the textual identification of the contact person for this managed node.
Page 76 Set Source Defines the IP address (for example, 10.10.10.1) for management systems that can serve as Set Community to read and write the SNMP information of this device. The default is 0.0.0.0, which means all hosts can read and write the SNMP information of this device. 3. Click Save.
Page 77: Configure The System
Configure the System This chapter introduces how to configure the system of the EAP, including: Configure the User Account · Configure the System Time · Reboot and Reset the EAP · Backup and Restore the Configuration ·...
Page 78: Configure The User Account
5.1 Configure the User Account Every EAP device has a user account, which is used to log in to the management page of the EAP. When you start the EAP at the first time, the username and password of the user account are both admin.
Page 79: Configure The System Time
To configure the system time, go to the System > Time Settings page. The following two sections introduce how to configure the basic system time settings and the Daylight Saving Time feature. Configure the System Time In the Time Settings section, you can configure the system time. There are three methods to set the system time: Set the System Time Manually Acquire the System Time From an...
Page 80 · Set the System Time Manually To set the system time manually, follow the steps below: 1. Configure the following three options on the page: Time Zone, Date and Time. Time Zone Select your time zone from the drop-down list. Here GMT means Greenwich Mean Time.
Page 81: Configure Daylight Saving Time
4. Click Save. · Synchronize the System Time with PC’s Clock To synchronize the system time with the clock of your currently logged-in host, follow the steps below: 1. Click the button and the synchronized system time will be displayed in the Date and Time fields. 2. Click Save.
Page 82 There are four regions provided: USA, European, Austrilia and New Zealand. The following table introduces the predefined daylight saving time of each region. From 2: 00 a.m. on the Second Sunday in March to 2:00 a.m. on the First Sunday in November. European From 1: 00 a.m.
Page 83: Reboot And Reset The Eap
 Date Mode If you select Date Mode, manually specify an absolute time range for the daylight saving time of the EAP. This configuration will be used only once. The following table introduces how to configure the absolute time range. Time Offset Specify the time to set the clock forward by.
Page 84: Backup And Restore The Configuration
Ntte After reset, all the current configuration of the EAP will be lost. We recommend that you check whether you have any configuration that needs to be backed up before resetting the EAP. 5.4 Backup and Restore the Configuration You can save the current configuration of the EAP as a backup file and save the file to your host.
Page 85 To update the firmware, go to the System > Firmware Update page. Follow the steps below to update the firmware of your EAP: 1. Go to our website www.tp-link.com and search your EAP model. Download the proper firmware file on the support page of the EAP.
Page 86: Application Example
Application Example This chapter provides an application example about how to establish and manage a EAP wireless network: A restaurant wants to provide the wireless internet access for the employees and guests. The restaurant now has a router, a switch, a dual-band EAP and a computer. Follow the steps below to establish the wireless network: 1.
Page 87: Determine The Network Requirements
6.1 Determine the Network Requirements Before starting to build the network, we need to first analyze and determine the network requirements. In this restaurant example, the network requirements are as follows: • On both 2.4GHz and 5GHz bands, there are two SSIDs needed: one for the restaurant employees and one for the guests.
Page 88: Log In To The Eap
6.3 Log in to the EAP After building the network topology, follow the steps below to log in to the web page of the EAP: 1. On the management host, launch the web browser and enter “192.168.88.1” in the address bar. Then log in to the router and find the IP address of the EAP. As the following figure shows, the IP address of the EAP is 192.168.88.101.
Page 89: Configure The Eap
4. Enter the new username and new password and click LOGIN. Then we can enter the web page of the EAP. 6.4 Configure the EAP Configure To achieve the network requirements in this application example, we need to SSIDs Configure Portal Authentication Configure Scheduler Configure SSIDs Follow the steps below to respectively configure SSIDs for the employees and guests on...
Page 90 3. The following page will appear. Configure this SSID for the employees. Change SSID to “employee_2.4GHz”, select the Security Mode as “WPA2-PSK”, and specify the Wireless Password as “restaurant123abc“. Click OK. 4. On the same page, click to add a new SSID.
Page 91: Configure Portal Authentication
5. The following page will appear. Configure this SSID for the guests. Change SSID to “guest_2.4GHz“, keep the Security Mode as “None” and check the box to enable the Portal feature for this SSID. Click OK. 6. Click to enter the configuration page for the 5GHz band. Similarly to the configurations for the 2.4GHz band, configure two SSIDs for the employees and guests on the 5GHz band.
Page 92 2. Configure the portal feature as the following figure shows. 1 ) Select the Authentication Type as “Local Password” and specify the Password as “restaurant123”. 2 ) Configure Authentication Timeout. Here we customize the timeout as 2 hours. It means that guests will be logged out after they have been authenticated for 2 hours. To continue to use the internet service, these guests need to enter the password to pass the portal authentication once again.
Page 93: Configure Scheduler
Configure Scheduler Follow the steps below to schedule the radio to operate only during the working time (9:00 am to 22:00 pm). 1. Go to the Wireless > Scheduler page. 2. In the Settings section, check the box to enable Scheduler, and select the Association Mode as “Associated with AP“.
Page 94: Test The Network
2 ) Choose the newly added profile “worktime”, and click . Then the item configuraiton page will appear. Specify the time range as everyday 9:00 to 22:00. Click OK. 4. In the Scheduler Association section, select “worktime“ in the Profile Name column and select “Radio On”...
Page 95 • To test the SSIDs for the guests, follow the steps below: 1 ) Enable the Wi-Fi feature of the client device. 2 ) Choose the SSID “guest_2.4GHz“ or “guest_5GHz“ among the detected SSIDs. 3 ) The default web browser on the device will pop up and the authentication page will appear.
Page 96 4 ) If the network is working normally, we will be redirected to the website of the restaurant: http://www.restaurant1.com.
Page 97: Fcc Statement
FCC STATEMENT This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
Page 98: Eu Declaration Of Conformity
5180MHz—5240MHz(23dBm) (EAP225/EAP245/EAP320/EAP330) EU declaration of conformity TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC and 2011/65/EU. The original EU declaration of conformity may be found at http://www.tp-link.com/en/ce.
Page 99 Le présent émetteur radio (IC: 8853A- EAP110-Outdoor / Model: EAP110-Outdoor) a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés ci- dessous et ayant un gain admissible maximal.
Page 100: Industry Canada Statement
This equipment complies with ISEDC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance (20cm for EAP110/EAP115/EAP245/EAP115-Wall/EAP110-Outdoor, 35cm for EAP 320, 46cm for EAP330, and 24cm for EAP225) between the radiator & your body.
Page 101: Safety Information
· Do not use the device where wireless devices are not allowed. · Adapter shall be installed near the equipment and shall be easily accessible. For EAP110/EAP225/EAP245/EAP110-Outdoor: Use only power supplies which are provided by manufacturer and in the original packing of this product.
Page 102 BSMI Notice 安全諮詢及注意事項 · 請使用原裝電源供應器或只能按照本產品注明的電源類型使用本產品。 · 清潔本產品之前請先拔掉電源線。請勿使用液體、噴霧清潔劑或濕布進行清潔。 · 注意防潮，請勿將水或其他液體潑灑到本產品上。 ·插槽與開口供通風使用，以確保本產品的操作可靠並防止過熱，請勿堵塞或覆蓋開口。 · 請勿將本產品置放於靠近熱源的地方。除非有正常的通風，否則不可放在密閉位置中。 · 請不要私自打開機殼，不要嘗試自行維修本產品，請由授權的專業人士進行此項工作。 (EAP320/EAP330/EAP225/EAP245) For EU/EFTA, this product can be used in the following countries:...
Page 103 European directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment. User has the choice to give his product to a competent recycling organization or to the retailer when he buys a new electrical or electronic equipment. (EAP110/EAP115/EAP225/EAP245/EAP320/EAP330/EAP115-Wall) Indoor use only...
Page 104 Specifications are subject to change without notice. is a registered trademark of TP-Link Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-Link Technologies Co., Ltd.
