TP-Link EAP110 Quick Installation Manual

Quick Installation Guide
EAP110 / EAP120 / EAP220
7106506247 REV1.0.0
2

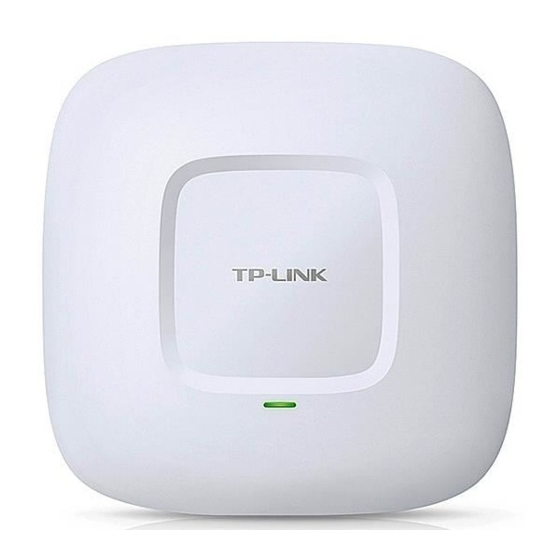

Hardware Overview
LED Indication
Solid green
The device is working properly.
Flashing red
System errors. RAM, Flash,
Ethernet, WLAN or firmware
may be malfunctioning.
4
Power Supply
EAP110
EAP110 can be powered with the provided PoE adapter.
3
PoE Adapter
PoE LAN
1 2
(Up to 100m)
1. Connect the ETHERNET port to the POE port of the PoE adapter using an Ethernet cable. The cable
length can be up to 100 meters.
2. Connect the Ethernet cable from the switch to the LAN port of the PoE adapter.
3. Plug the female connector of the provided power cord into the PoE adapter, and the male connector
to a power outlet.
1
Network Topology Requirement
EAP Controller
Controller Host
A DHCP server (typically a router) is required to assign IP addresses to the EAP and clients in your local network.
A computer running the EAP Controller software, which can be in the same or different subnet with the EAPs.
Interface Panel
EAP120 / EAP220
RESET
With the device powered on, press and hold the button for about 8 seconds until the LED flashes red, then
release the button. The device will restore to factory default settings.
CONSOLE (EAP120/220)
The port is used to connect to the serial port of a computer or a terminal to check and monitor system information
Flashing yellow
of the EAP device.
Firmware update is in progress.
CLI commands are not available in current software version. We will release a new version supporting CLI
Do not disconnect or power off
commands soon. Please pay close attention to our official website.
the device.
ETHERNET
(EAP110)The port is to connect to the POE port of the provided PoE adapter for both data transmission and
Double-flashing red, green, yellow power supply through Ethernet cabling.
The device is being reset to its (EAP120/220)The port is used to connect to a router or a switch to transmit data or to a PSE (Power Sourcing
factory default settings. Equipment), such as a PoE switch, for both data transmission and Power over Ethernet (PoE) through Ethernet
cabling.
ON/OFF (EAP120/220)
Press this button to turn on or turn off the EAP device.
EAP120 / EAP220
EAP120/220 can be powered via a PSE device (such as a PoE switch) or a power adapter.
Via PoE Switch
Switch
Via Power Adapter
1. (Via PoE Switch) Connect the Ethernet cable from the PoE switch to the ETHERNET port.
(Via Power Adapter) Plug one end of the provided power adapter into the POWER port of the EAP and the
other end to a standard electrical wall outlet.
2. Press the ON/OFF button on the interface panel of the EAP.
Internet
Router
EAP110
RESET ETHERNET
RESET CONSOLE ETHERNET ON/OFF POWER
ON/OFF
PoE Switch
ON/OFF
Switch
EAP
Switch
EAP
EAP
3
Hardware Installation
The EAP can be ceiling rail mounted, ceiling-mounted, and wall-mounted.
The instructions for various mounting options are on the back of this Quick Installation Guide.
Option 1: Ceiling Rail Mounting
Option 2: Ceiling Mounting
Option 3: Wall Mounting
5
Software Configuration
To quickly set up a wireless network connection with mass EAPs, please follow the steps below.
Note: The IP address of the management computer must be reachable for the EAPs in the network.
Step 1: Installing the EAP Controller
Find the EAP Controller application file from our website at www.tp-link.com. Run the file and follow the wizard to
install the EAP Controller on the computer.
Step 2: Configuring the EAP Controller
Launch the EAP Controller and follow the configuration wizard to create a primary wireless network. After the wizard
is finished, a login screen will appear. Enter the admin name and password you created and click Sign In.
Step 3: Adopting the EAP devices
Adopt the EAP devices in the Controller management interface to change the status from pending to connected.
For More Configurations
Now you can manage your wireless network and view network statistic using the EAP Controller. Please refer
to the EAP Controller User Guide to learn more information on configuring and using the Controller software.
Clients
