Smartcard connector CN2

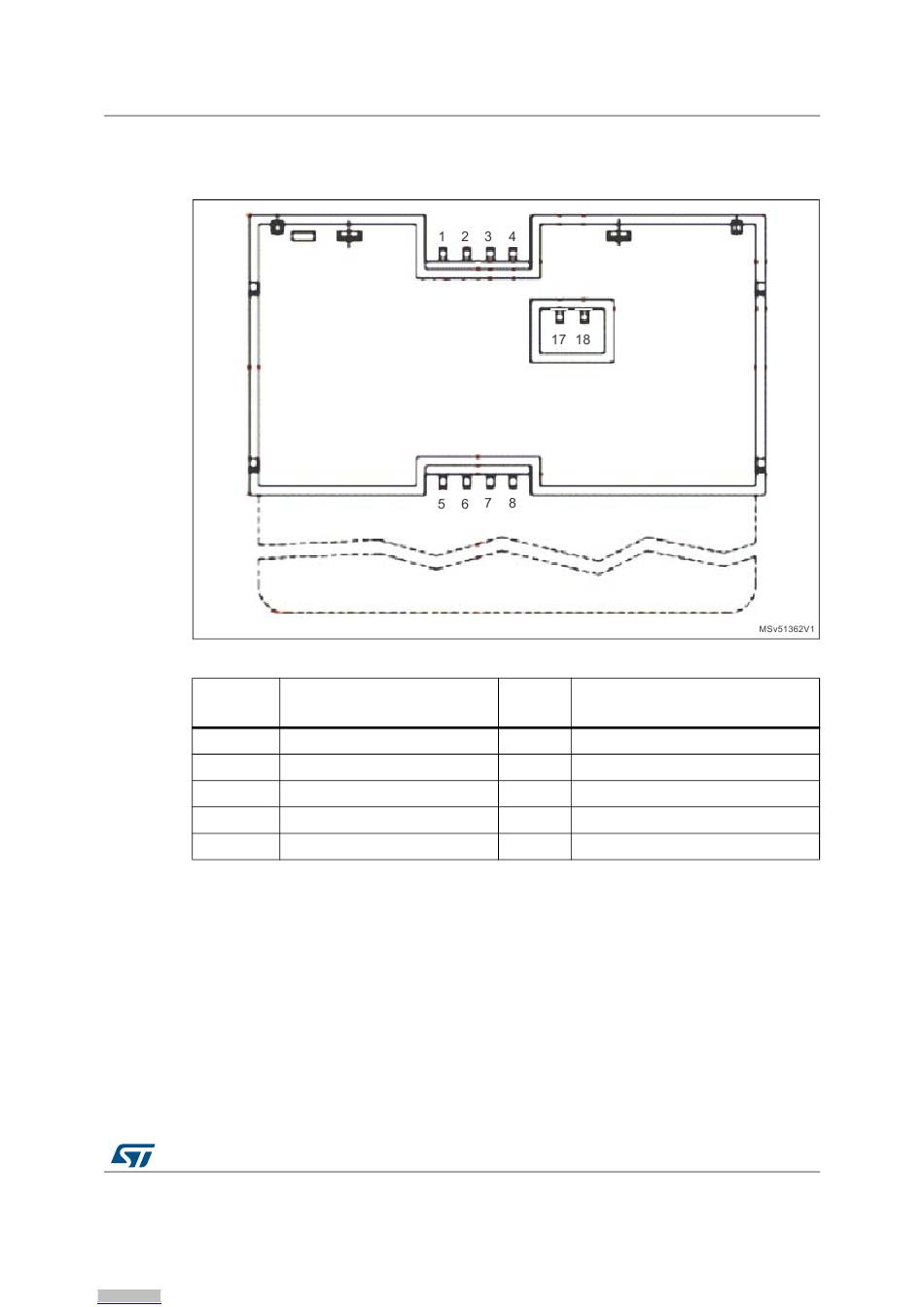

Figure 20. Smartcard connector CN2 (top view)

Pin number Description
1 VCC
2 RST
3 CLK
4 NC
17 Card presence detection pin

Table 32. Smartcard connector CN2

Pin
number
5
6
7
8
18
UM2403 Rev 1
Connectors
Description
GND
NC
I/O
NC
Card presence detection pin
