STM32429I-EVAL evaluation board for the STM32F429 line
Introduction
The STM32429I-EVAL evaluation board is a complete demonstration and development
platform for STMicroelectronics ARM
microcontrollers. It features three I
USART, four UART, two CAN, three 12-bit ADC, two 12-bit DAC, one SAI, 8- to 14-bit digital
camera module interface, internal 256+4 KB SRAM and 2 MB Flash, USB HS OTG and
USB FS OTG, Ethernet MAC, FMC interface, JTAG debugging support. This evaluation
board can be used as a reference design for user application development but it is not
considered as a final application.
The full range of hardware features on the board helps you evaluate all peripherals (USB
OTG HS, USB OTG FS, Ethernet, Motor Control, CAN, MicroSD Card, USART, Audio DAC
and ADC, digital microphone, IrDA, CAN, RF EEPROM, SRAM, Nor Flash, SDRAM,
4.3" TFT LCD with a resistive touch panel etc.) and develop your own applications.
Extension headers make it possible to easily connect a daughterboard for your specific
application.
The integrated ST-LINK/V2 provides an embedded in-circuit debugger and programmer for
the STM32 MCU.

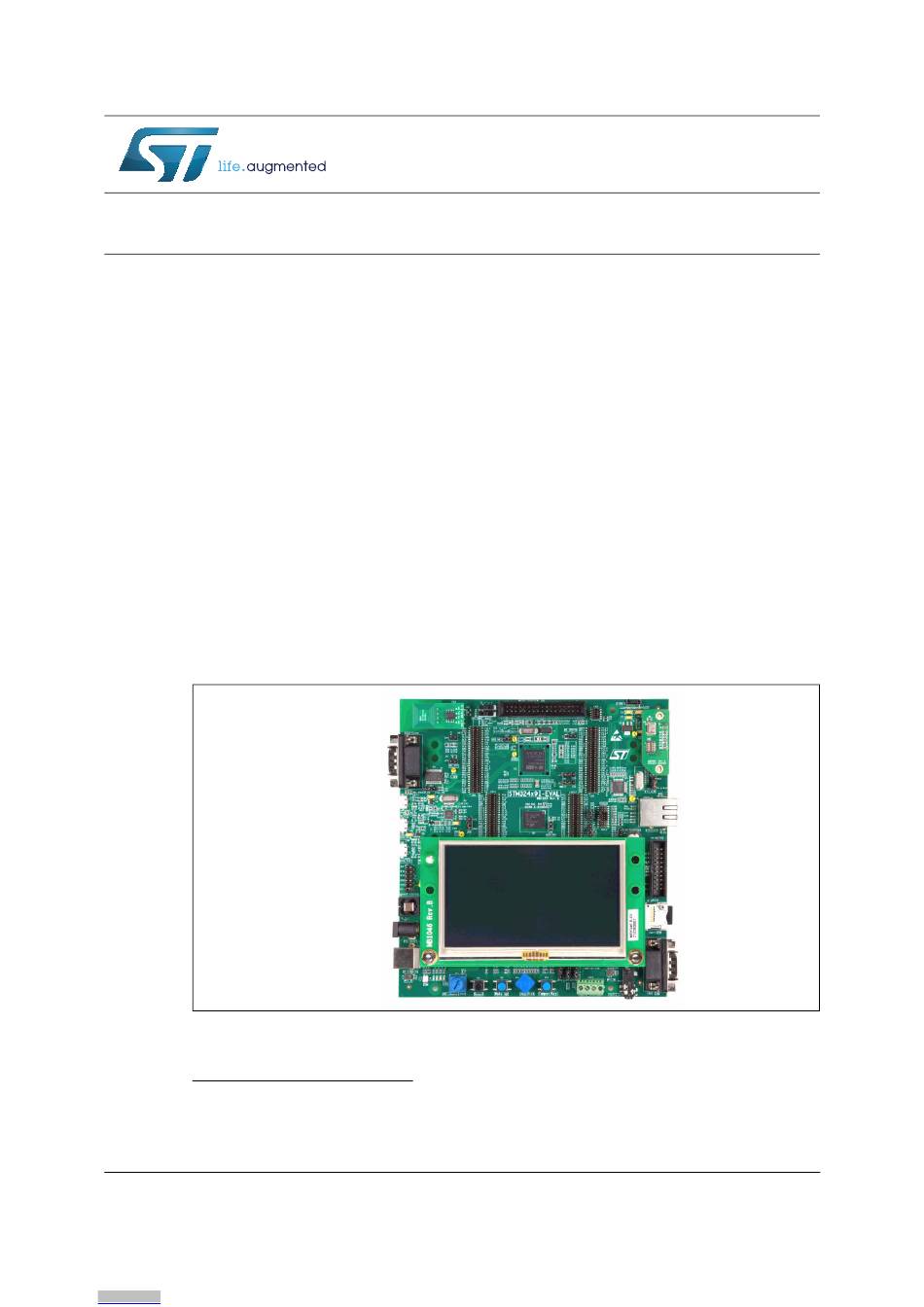

Figure 1. STM32429I-EVAL evaluation board
a. Photo not contractual
®
Cortex™-M4 core-based STM32F429NIH6
2
C, six SPIs with two muxed full-duplex I
DocID025150 Rev 1
UM1667
User manual
2
S, SDIO, four
(a)
1/69
www.st.com
