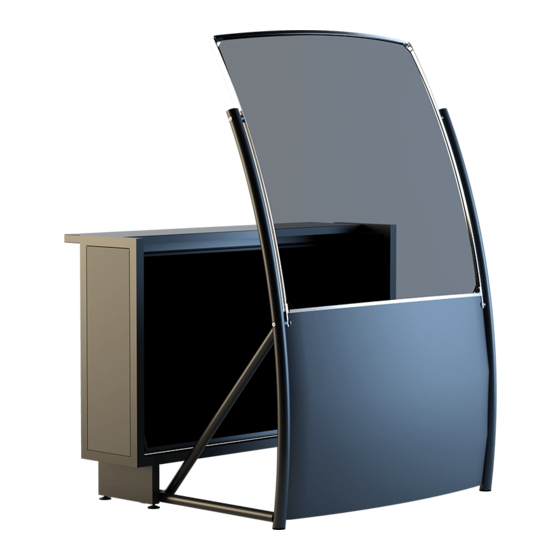

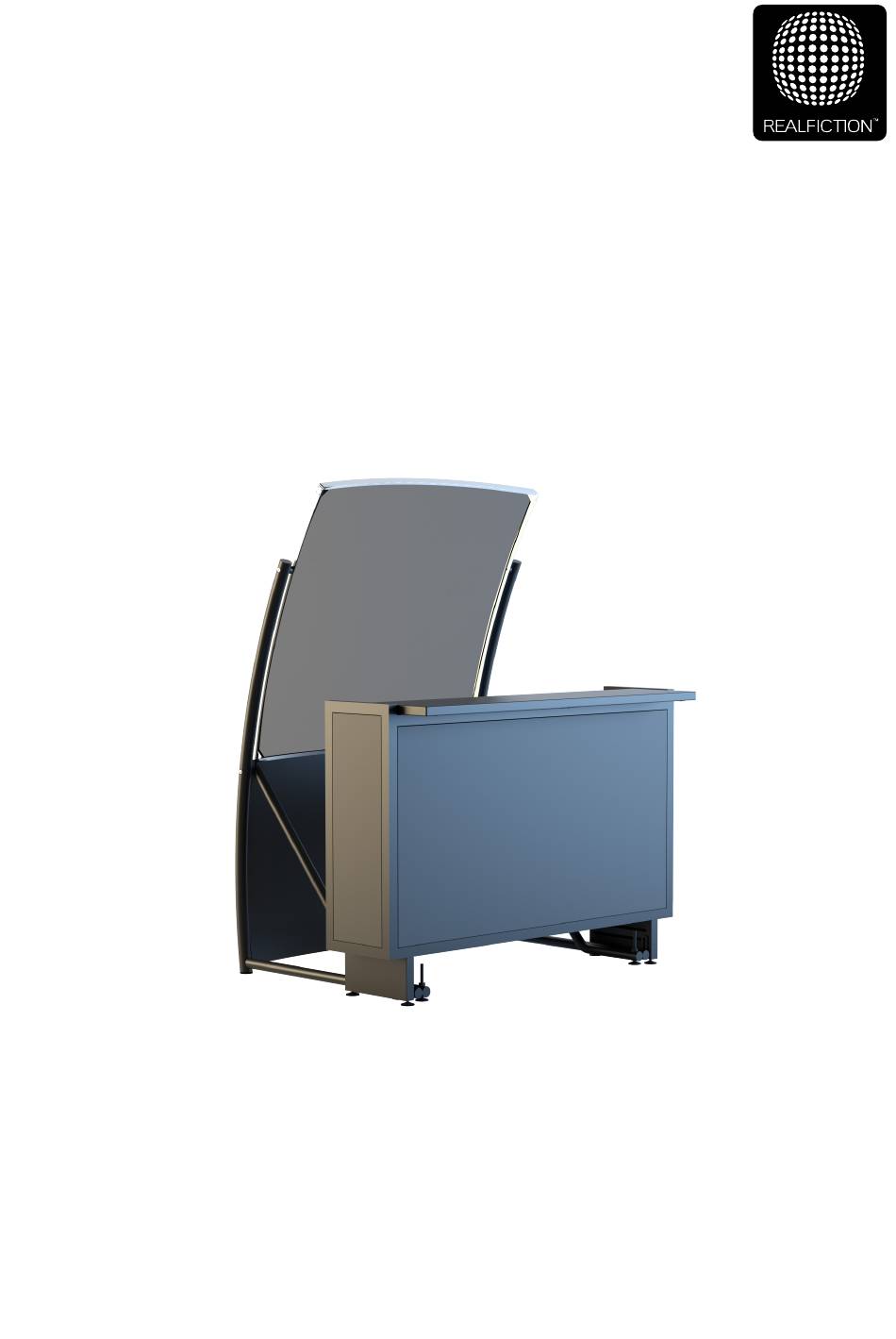

DEEPFRAME ONE - USER GUIDE
VERSION 1.1 - ORIGINAL USER GUIDE
It is important to read this manual before using the DeepFrame One, and to follow advices and instructions on
safety, operation and general use to get the best possible experience with your DeepFrame One.
The DeepFrame One is designed to showcase products and other objects in combination with free floating 3D
video animations. The DeepFrame One is design protected in shape and form. Realfiction and DeepFrame One are
registered trademarks owned by Realfiction ApS.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DEEPFRAME ONE and is the answer not in the manual?

Questions and answers

Related Manuals for Realfiction DEEPFRAME ONE

Summary of Contents for Realfiction DEEPFRAME ONE

  • Page 1 VERSION 1.1 - ORIGINAL USER GUIDE It is important to read this manual before using the DeepFrame One, and to follow advices and instructions on safety, operation and general use to get the best possible experience with your DeepFrame One.

  • Page 2: Table Of Contents

    Content: Security precautions Product guarantee When receiving the DeepFrame One Package content How to operate the display Unpacking and preparing your OLED screen for first time use Adjusting the hologram Adjusting the hologram over longer distances Adjusting the audio volume...

  • Page 3: Security Precautions

    Security precautions • Installation of the DeepFrame One must be done according to this manual, and must be performed by an adult (Over 21 years). • The DeepFrame One must be placed on a horizontal, stable and plane surface. • Do not install the DeepFrame One in narrow passageways or other places where a lot of people and equipment has to pass close by, thereby risking collisions that might cause the Dreamoc to tip over causing human injuries and damage to property.

  • Page 4: Product Guarantee

    Product guarantee The manufacturers guarantee includes production, materials and function of the supplied equipment. The guarantee is valid only if the supplied material is used as described in this manual, and to the purpose to which it has been designed. The guarantee includes repair or replacement of malfunctioning components.

  • Page 5: When Receiving The Deepframe One

    WHEN RECEIVING THE DEEPFRAME ONE The DeepFrame One comes in two flightcases that holds all the different parts. Please note that we cannot be hold responsible for any damage or failure that has occurred due to the use of third party constructed flight case or packaging.

  • Page 6: How To Operate The Display

    How to operate the display Unpacking and preparing your OLED screen for first time use 1. Take out your OLED Screen from the box and gently place it on a sheet of protective foam on the floor with the backside up. 2.
  • Page 7 4. Insert the USB stick to the sound bar, holding the specific configurator file for either DeepFrame One or DeepFrame Basic Kit. This is needed to setup your OLED Screen’s picture, sound and power settings settings. If you have a DeepFrame One, your toolbox already has a USB stick with the correct configurator file on it.
  • Page 8 6. Insert the Connection Cable to the Sound Bar and then connect it to a power outlet. 7. Take the remote control and turn on the OLED Screen by pointing it towards the sound bar. 8. Select ‘English’ as your language and your country. Then click ‘Next’. 9.
  • Page 9 11. When the settings are correctly installed, the message ‘ Import completed’ will appear and the OLED Screen will turn off.

  • Page 10: Adjusting The Hologram

    Adjusting the hologram 1. Loosen the bolts in the groove underneath the OLED Housing. 2. Gently move the OLED Housing back and forth to adjust the distance your hologram appears in, and also the size of it. Screen closest to the Optical lens = the hologram is small Screen furthest away from the Optical lens = the hologram is big...
  • Page 11 3. Then gently tilt both the Leg Frames back and forth to adjust the height position of the hologram. 4. When you are satisfied, adjust the feet to maintain the height positioning and tighten the bolts again underneath the OLED Housing 5.

  • Page 12: Adjusting The Hologram Over Longer Distances

    Adjusting the hologram If you wish to create a hologram that appears further out in the distance, you can attach the Extension Rods to the Leg Frames. 1. Loosen the bolts in the groove underneath the OLED Housing. 2. Gently slide the Leg Frames forward so the first bracket slides past the OLED Housing. Then remove it. 3.
  • Page 13 4. Take out the Extention Rods from the flight case. 5. Take the speaker cable and guide it through the Extention Rod. 6. Slide on both Extention Rods and tighten the screws underneath each Leg Frame again.

  • Page 14: Adjusting The Audio Volume

    7. Attach the brackets on the Extention Rods to the groove in the OLED Housing. 8. Adjust the display and finish by tightening the bolts underneath again to secure the positioning. Adjusting the volume 1. Take the remote control and point it towards the DeepFrame Optical Lens. Use the volume up/down buttons to adjust the volume.

  • Page 15: Changing The Sound To Include The External Speakers

    Changing the sound to include the external speakers 1. Take the remote control and point it towards the DeepFrame Optical Lens. 2. Press the Gear button for the settings menu – look towards the extreme left side of the picture and go the icon ‘Sound Settings’.

  • Page 16: Supported File Formats And Use Of File Names

    Watch the How to solve playback issues using Mac tutorial video (https:/ /vimeo.com/108581691) This tutorial shows you how to delete the hidden files and make your movie work on Dreamoc Diamond when copied from Mac. Download Delete Hidden Files program on Realfiction’s support page: Realfiction.com/support/deepframe-one...

  • Page 17: Trouble Shooting

    Trouble shooting Problem Action • No power Make sure the AC outlet has power. • Make sure that the power cable is properly inserted. • Film is lacking or not If the movies have been copied to the SD-card with a Mac playing at all.
  • Page 18 Realfiction and Dreamoc are registered trademarks owned by Realfiction ApS. Other marks may be mentioned here in that belong to other companies. © 2018 Realfcition Aps. All rights reserved. Realfiction Aps | Øster Alle 42, 7th floor | DK-2100 Copenhagen Ø Denmark | Phone: +45 70 20 64 90...
