STM32 Nucleo-64-P board layout

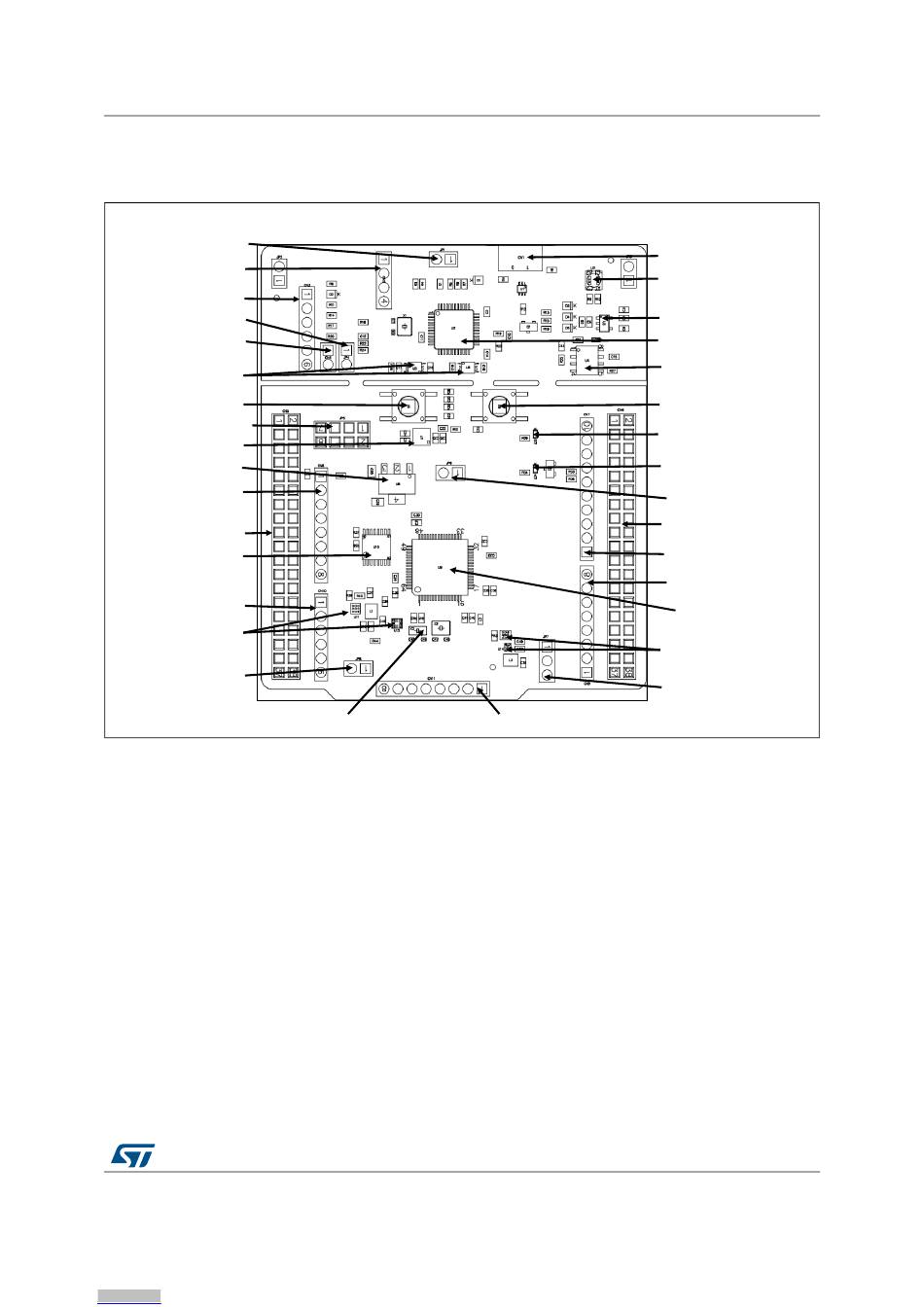

Figure 4. STM32 Nucleo-64-P board top layout

CN2
nRST: JP4
U5/U6
3V3: U7
JP8
32KHz: X3
Hardware layout and configuration
External Core PWR connector: CN11
UM2206 Rev 3
USB_STLINK: CN1
COM LED: LD1
STLINK_3V3: U3
ST-LINK STM32: U2
STLINK_5V_SW: U4
RST Button: B2
5V PWR LED: LD3
User_LED: LD4
IDD JP: JP6
ST morpho: CN6
Arduino_D[8..15]: CN7
Arduino_D[0..7]: CN9
STM32: U9
MCU SMPS 1V8: U13/U14
MCU 1V8 / 3V3: JP7
11/55
54
