3.2.1 PROFIBUS Communication Settings

From the Settings screen, navigate to the Communication Settings icon and press Enter
. The Communication Settings screen (Figure 4) will allow for the following settings to
be adjusted:
The Slave Address can be configured via software in the range of 1-125.
•
The Internal Line Termination can also be enabled/disabled on this screen. The
•
final device on the communication bus must have line termination enabled. This
can be accomplished externally or using the software enabled internal line
termination. The Internal Line Termination will engage the following internal
termination resistors:

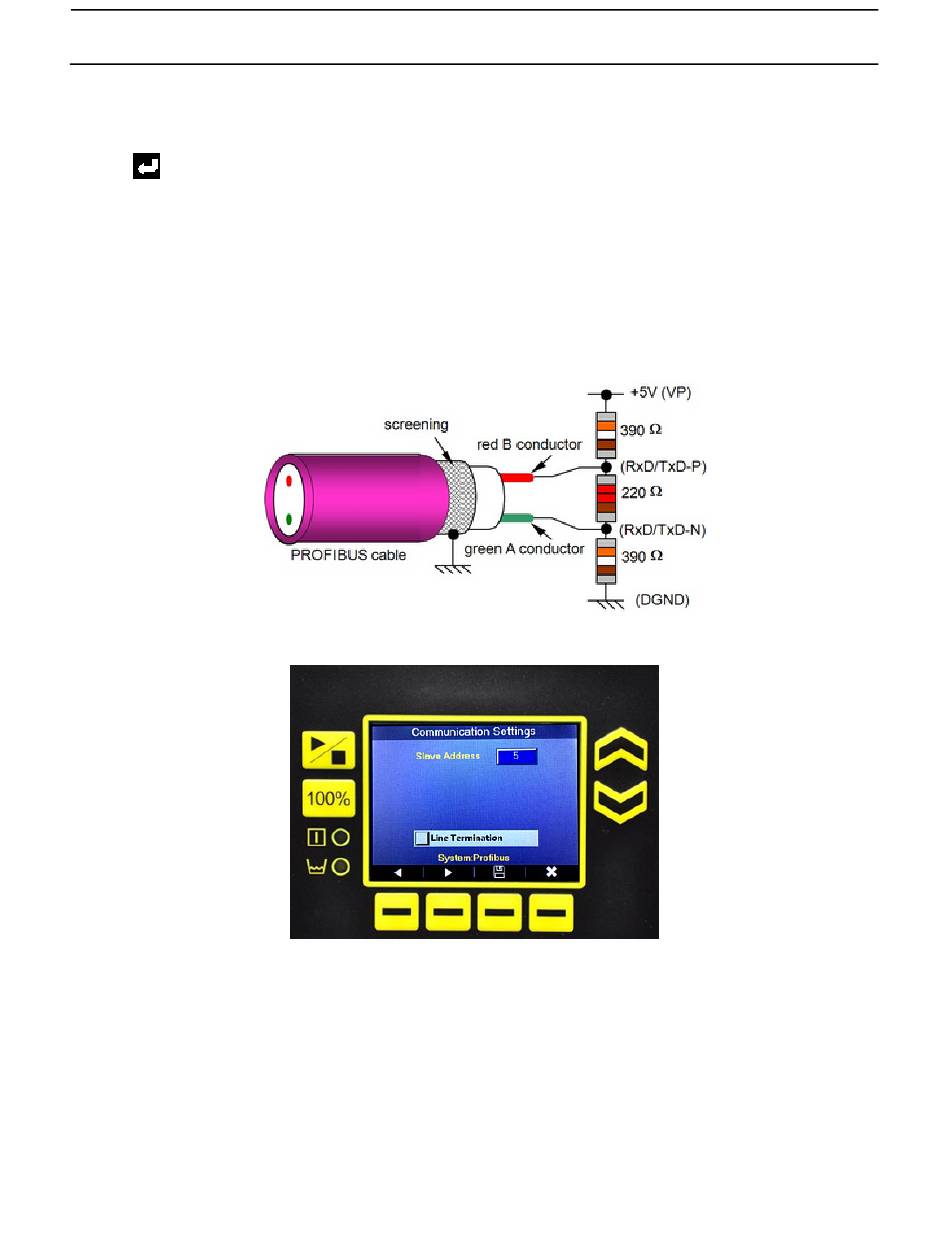

Figure 3: Internal Termination Resistors

Figure 4: Communication Settings

LOCAL OPERATION
