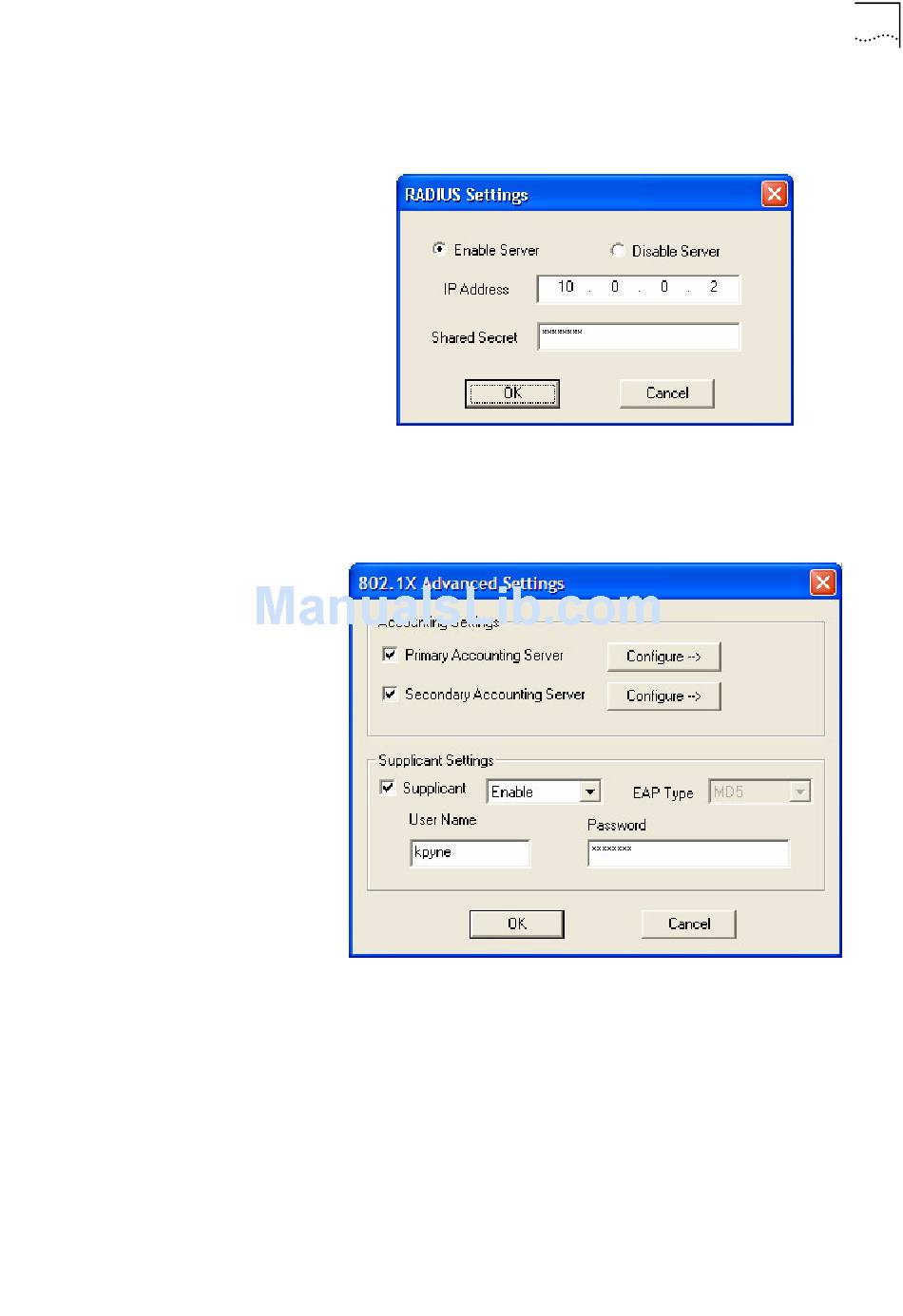

26 To use 802.1X, you must select a RADIUS server to act as authenticator to devices
connected to the NJ225. To select a Primary or Secondary RADIUS server, click the
box and the Configure button. This will open a separate window.
In this box you can Enable or Disable the server, enter the server's IP address and
the Shared Secret.
27 To set advanced 802.1X security settings, click the Advanced Settings button in
the Security Configuration window.
Primary and secondary accounting servers are similar to the settings for RADIUS
servers. The supplicant settings let you configure the IntelliJack as a supplicant to
an 802.1X-enabled upstream switch. To enable this option, select the box next to
Supplicant. When you do, the other fields on the screen will become active. You
can enter a Supplicant User Name and Password as well as an EAP Type setting.
MD5 is the only EAP type that the IntelliJack currently supports.
Changing Device Configuration 57
