Raceways

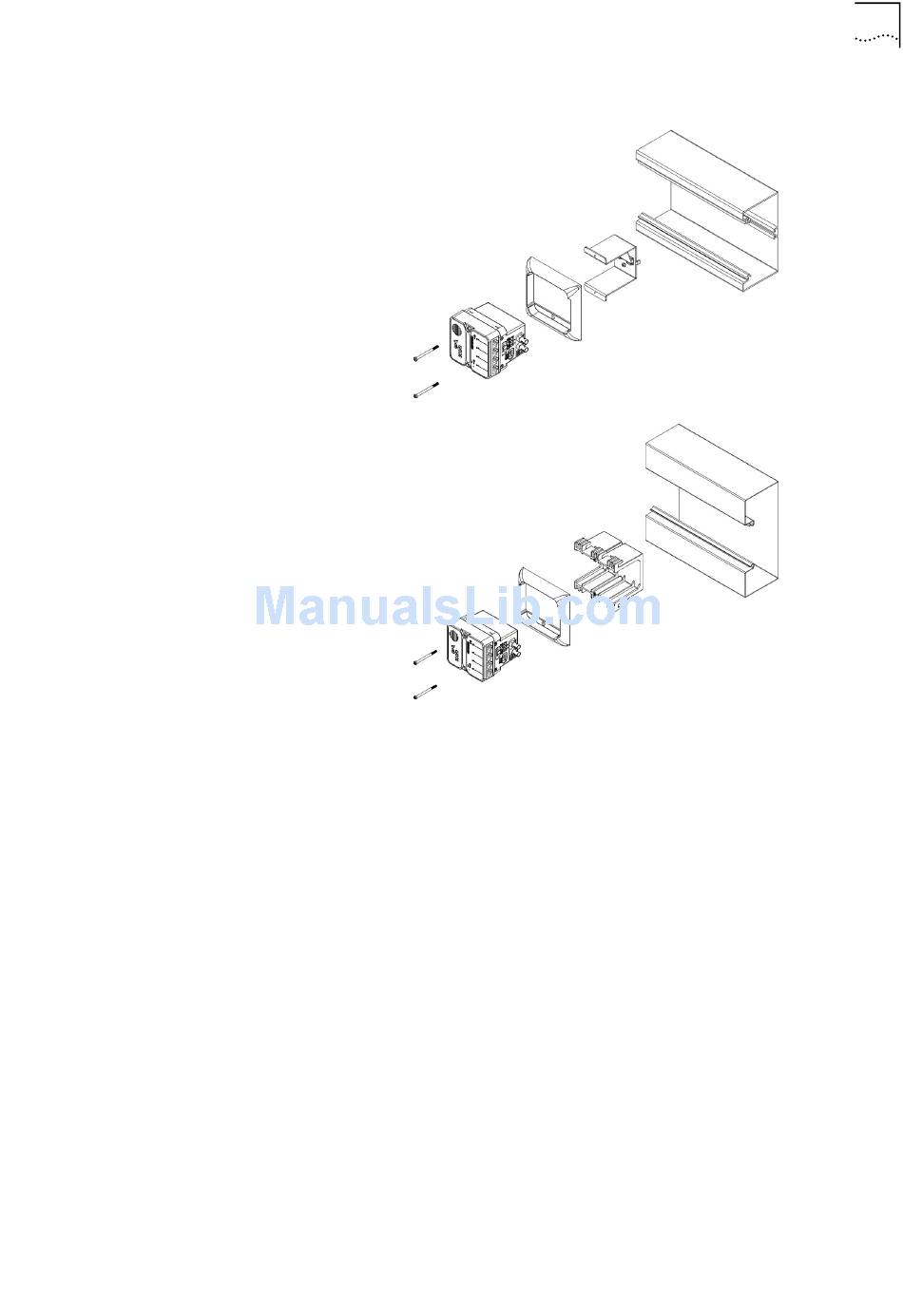

Instructions for Tehalit BR70130 and BRN70110/1 (may work with other designs):
1 Attach clamp assembly to the raceway.
2 Place 225FX into the trim ring.
3 Prepare the AC or DC power supply. If using AC, screw the power wires into the
green connector. If using DC, plug the cord into a power outlet. Connect AC or
DC power to unit.
4 Connect fiber cables to the fiber transceiver on the unit.
5 Mount the unit and trim ring into the raceway.
6 Tighten supplied screws to the raceway while holding the IntelliJack unit in place.
