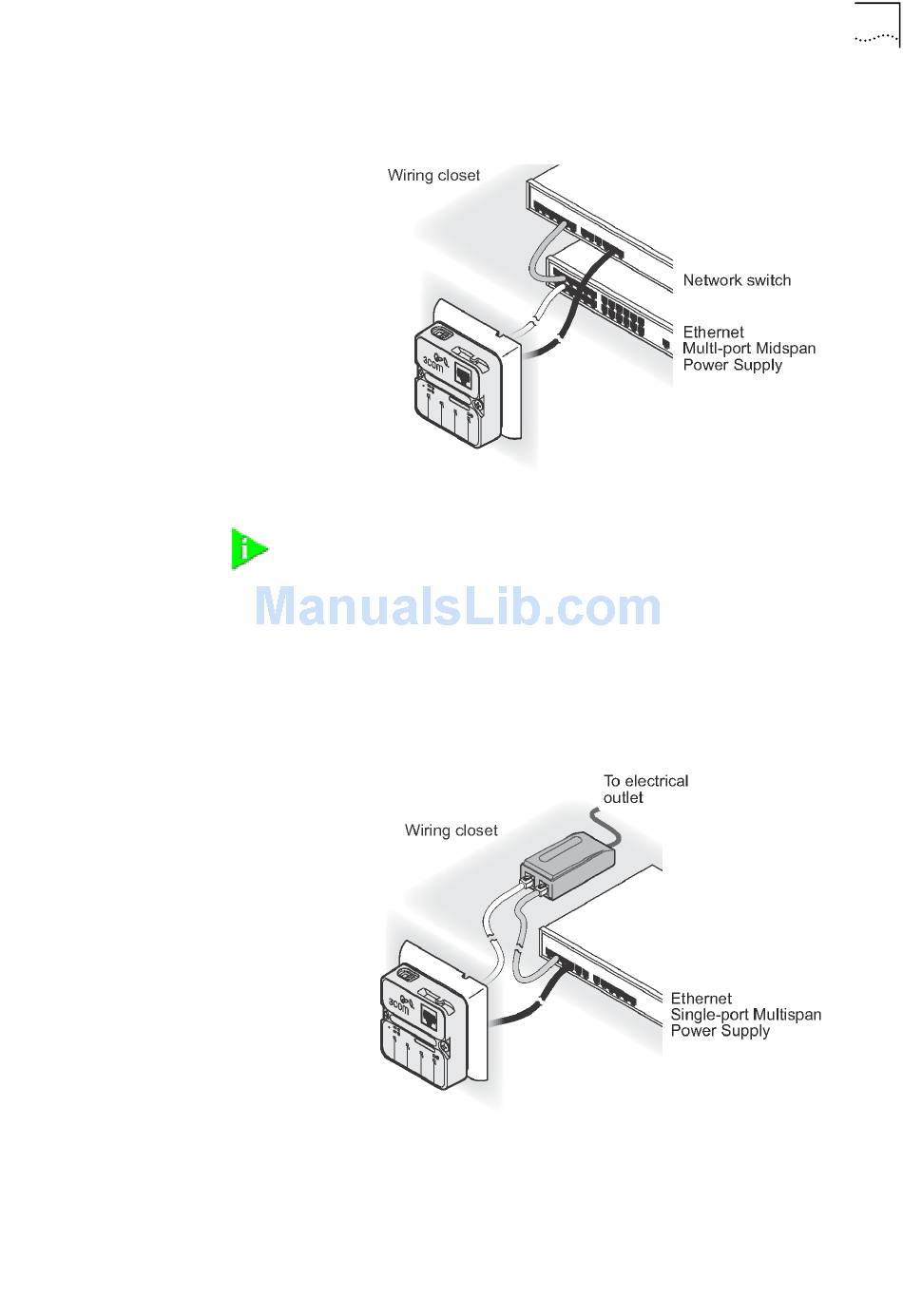

Connect the network second data/voice/power cable (if available) to the IntelliJack

black cable, as shown in the following illustration.

NOTE: The black cable can also be connected to an Ethernet multi-port midspan

power supply and will power an IEEE 802.3af device connected to the

pass-through port on the IntelliJack, but it will not provide power to the

IntelliJack.

Using a Single-port Ethernet Power Supply

To use a single-port Ethernet power supply, connect the power supply to the

network hub or switch and to the IntelliJack white cable, as shown in the

following illustration. The black cable should be connected to a data port on the

wire closet switch.

Installing the NJ225
