Operating peripheral devices
RSAN-PRT Printer
Table 4-3: Indicators
LED Color
Trouble Yellow
Paper out Yellow
4.4
The RSAN-PRT printer provides permanent records of all
system activities, including sensitivity and history reports. The
RSAN-PRT remains continuously active unless someone uses
the printer connection for maintenance purposes. The printer
operates in combination with the 2-LCD. See Generating reports
in Operating panel devices. The printer will generate a trouble
condition at the control panel if it has an internal problem or runs
out of paper.
Message
printed
here

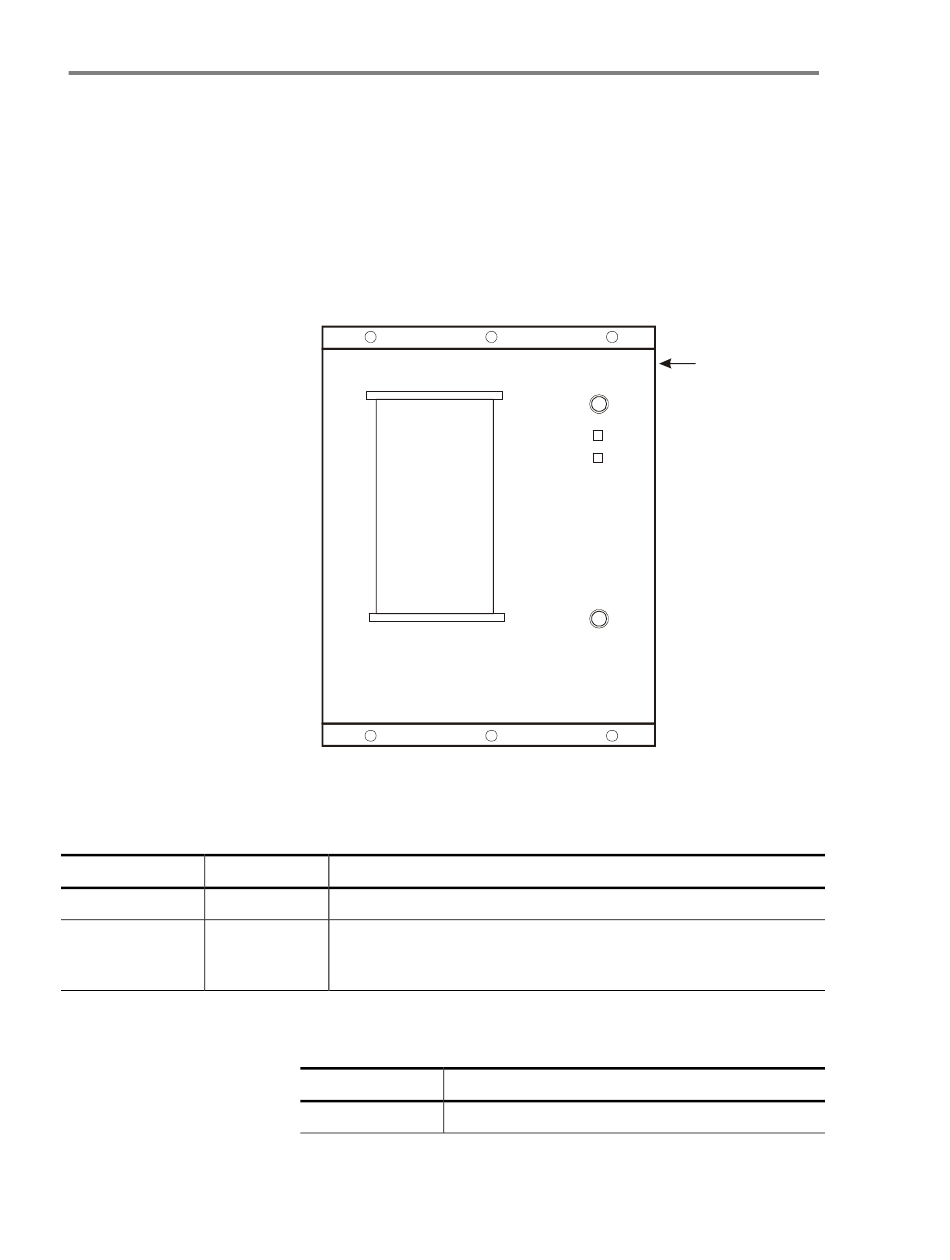

Figure 4-2: RSAN-PRT strip printer
Description
The Paper out LED turns on when the printer requires paper.
The Trouble LED turns on when the printer has an internal
trouble or a printer down line is not responding to supervision
requests.
Table 4-4: Controls
Control Description
Reset Restarts and reinitializes the printer.
PAPER
TAKE UP
TROUBLE
PAPER OUT
PAPER
ADVANCE
STDOP039.CDR
EST2 System Operations Manual
Reset switch
( on the circuit
board behind
the faceplate )
