Operating peripheral devices
PT-1S Printer
LNE FORM TOF SELECT
FEED FEED SET

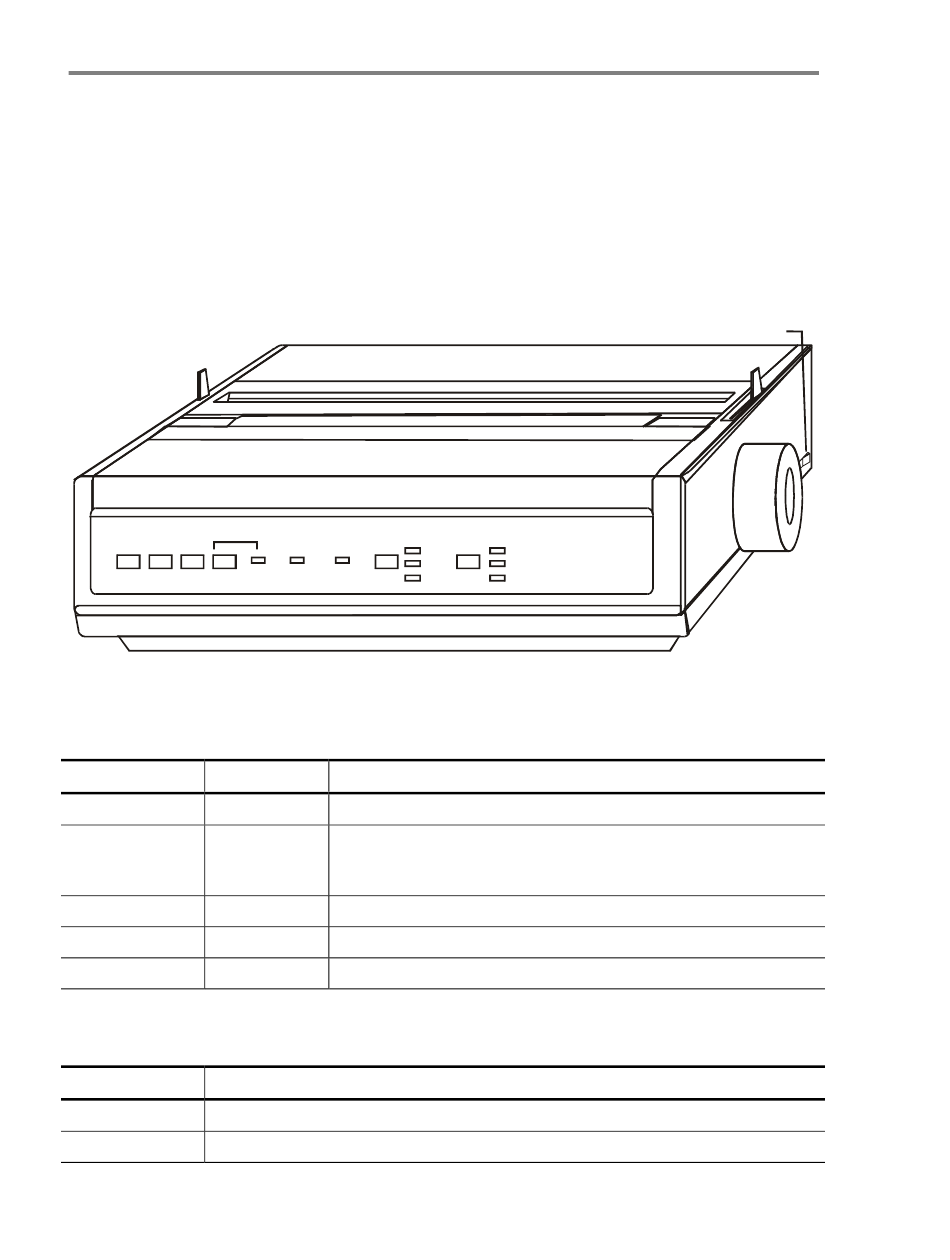

Figure 4-1: PT-1S form printer
Table 4-1: Indicators
LED Color
Select Green
Alarm Red
Power Green
Pitch Green
Mode Green
Table 4-2: Controls
Switch Description
Line feed Advances the paper one line.
Form feed Advances the paper to the next page.
4.2
The PT-1S printer provides permanent records of all system
activities, including sensitivity and history reports. The PT-1S
remains continuously active unless someone uses the printer
connection for maintenance purposes. The printer operates in
combination with the 2-LCD. See Generating reports in
Operating panel devices. The printer will generate a trouble
condition at the control panel if it has an internal problem or runs
out of paper.
ALARM POWER PITCH MODE
10
12
17
Description
The Select LED turns on when the printer is online.
The Alarm LED lights turns on when the printer has an internal
problem or needs more paper. Do not confuse this LED with a
fire alarm.
The Power LED turns on when the printer has power.
The Pitch LEDs turn on to indicate the selected character size.
The Mode LEDs turn on to indicate the selected printer speed.
NLQ
UTILITY
HSD
STDOP038.CDR
EST2 System Operations Manual
On/Off switch
