Printing Sensitivity Reports - EDWARDS SYSTEMS TECHNOLOGY EST2 Operation Manual

====4D Panel Sensitivity Report====
Facility: Project Name
Date: 03-23-1998
Time: 03:59:08
Sensitivity Report for 4D, 3D, Photo, and Ion Sensors
Sensor Sensor
Address Type
0101 3D Detector
0102 3D Detector
STDOP002.CDR
Figure 2-17: Typical sensitivity report print format
EST2 System Operations Manual
Press [ENT] for more
Add: 0101 Type 3D
Alarm Level: 3%
Maint. Level: 00%

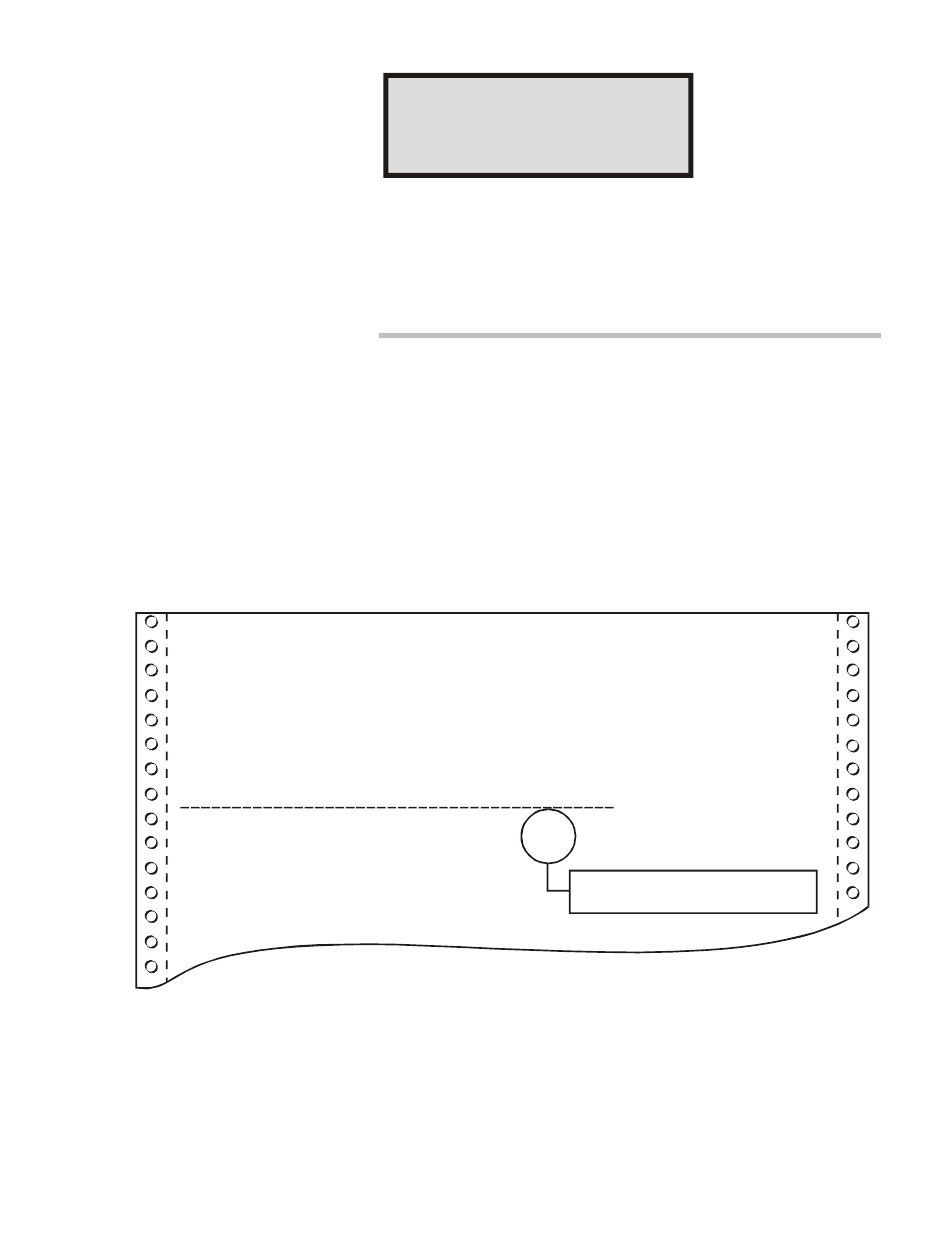

Figure 2-16: Typical sensitivity report on 2-LCD

Printing sensitivity reports

To print a sensitivity report:
1. At the 2-LCD, press Reports.
2. Enter a level 1, 2, or 3 password.
3. Enter 1 to choose a sensitivity report.
4. Enter 2 to send the report to the printer.
5. Enter the device address of the desired report only on local
reports.
Figure 2-17 illustrates the typical printed format of a sensitivity
report.
Alarm Maintenance
Setting Indicator
2.0% 04
2.0% 00
Operating panel devices
STDOP029.CDR
Percentage of allowed maintenance
range, which becomes critical at 80%
2.35
