User Guide | Controller for SemiPlugin appliance, AK-CC 460

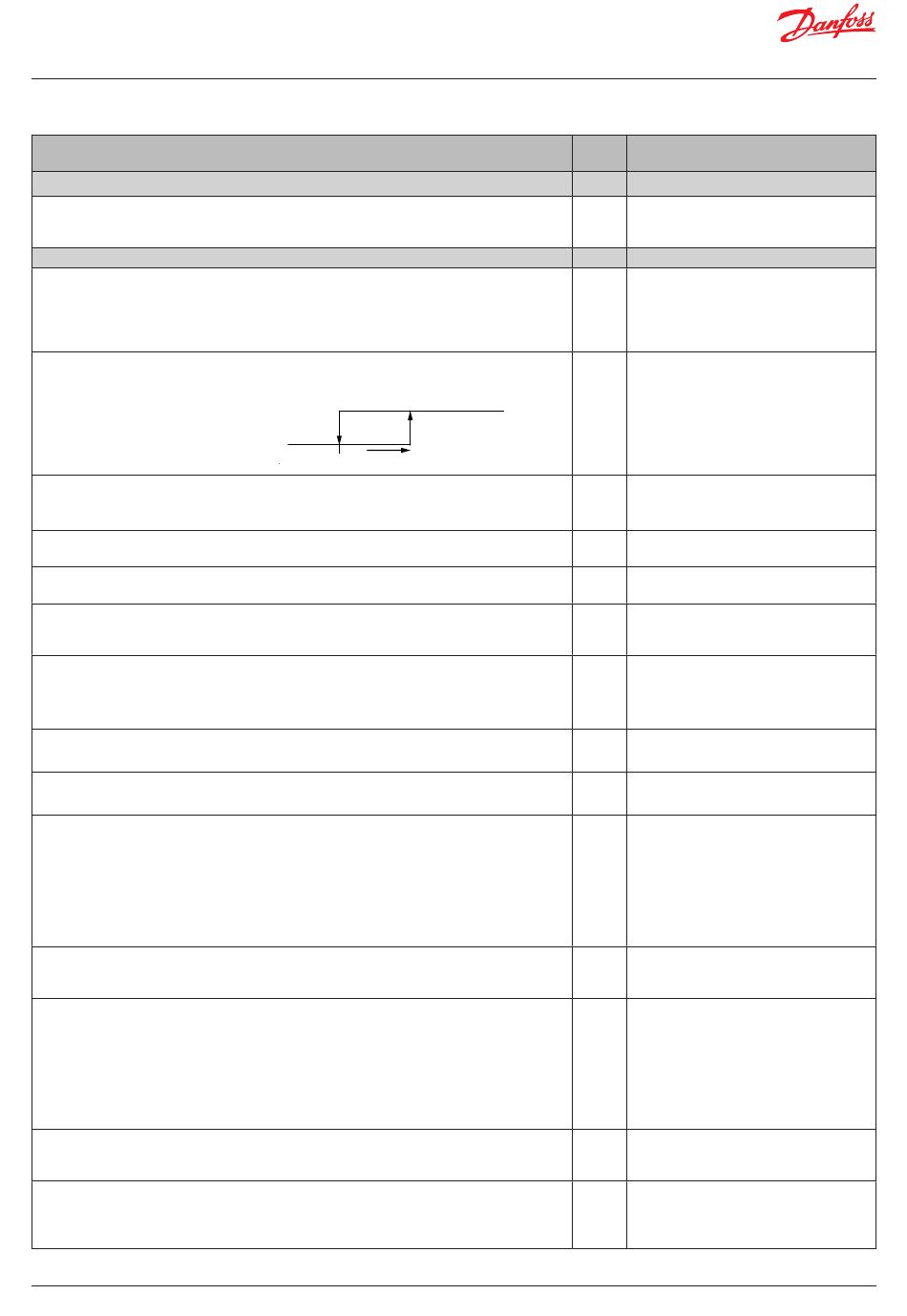

Survey of functions

Function
Normal display
Normally the temperature value from one of the two thermostat sensors S3 or S4 or a
mixture of the two measurements is displayed. In o17 the ratio is determined.
If the S6 temperature is to be shown, this must be defined in setting o97.
Thermostat
Set point
Regulation is based on the set value plus a displacement, if applicable. The value is set via a
push on the centre button.
The set value can be locked or limited to a range with the settings in r02 and r 03.
The reference at any time can be seen in "u91 Cutout temp".
Differential
When the temperature is higher than the reference + the set differential, the compressor
relay will be cut in. It will cut out again when the temperature comes down to the set
reference.
Setpoint limitation
The controller's setting range for the setpoint may be narrowed down, so that much too
high or much too low values are not set accidentally - with resulting damages.
To avoid a too high setting of the setpoint, the max. allowable reference value may be
lowered.
To avoid a too low setting of the setpoint, the min. allowable reference value may be
increased.
Correction of the display's temperature
If the temperature at the products and the temperature received by the controller are not
identical, an offset adjustment of the display temperature can be carried out.
Temperature unit
Set here if the controller is to show temperature values in °C or in °F.
Correction of signal from S4
Compensation possibility due to long sensor cable
Correction of signal from S3
Compensation possibility due to long sensor cable
Start / stop of refrigeration
With this setting refrigeration can be started, stopped or a manual override of the outputs
can be allowed. (For manual control the value is set at -1. Then the valve outlet and the
relay outlets can be force-controlled by the respective reading parameters (u58, etc.). Here
the read value can be overwritten.)
Start / stop of refrigeration can also be accomplished with the external switch function
connected to a DI input.
Stopped refrigeration will give a "Standby alarm".
Night setback value
The thermostat's reference will be the setpoint plus this value when the controller changes
over to night operation. (Select a negative value if there is to be cold accumulation.)
Thermostat function
Here it is shown how the thermostat is operating.
1 = ON/OFF thermostat. The application mode (o61) is set to 1 or 3. The difference is
defined by parameter r01
2 = Modulating thermostat. The application mode (o61) is set to 2, and the temperature
reference is cut-out plus half the difference set in r01.
Note that when a modulating thermostat is used, it is not recommended to set the
difference lower than 2 K.
Selection of thermostat sensor S4% during day operation
Here you define the sensor the thermostat is to use for its control function. S3, S4, or a
combination of them. With the setting 0%, only S3 is used (Sin). With 100%, only S4.
Melt function
Only for control of refrigeration (-5 to +10°C). The function ensures that the evaporator will
not be blocked by frost. Here you set how often the function is to stop the refrigeration
and hence transform the frost to water (or ice if there is too much frost).
10 | BC230086440483en-000201
Ref. Dif.
Para- Parameter by operation via data
meter communication
Display air (u56)
Thermostat control
Cutout °C
r01 Differential
r02 Max cutout °C
r03 Min cutout °C
r04 Disp. Adj. K
r05 Temp. unit
°C=0. / °F=1
(Only °C on AKM, whatever the setting)
r09 Adjust S4
r10 Adjust S3
r12 Main Switch
1: Start
0: Stop
-1: Manual control of outputs allowed
r13 Night offset
r14 Therm. mode
r15 Ther. S4 %
r16 MeltInterval
