Diode Dynamics C-Light LED Halos Installation Manual

Wiring Instructions

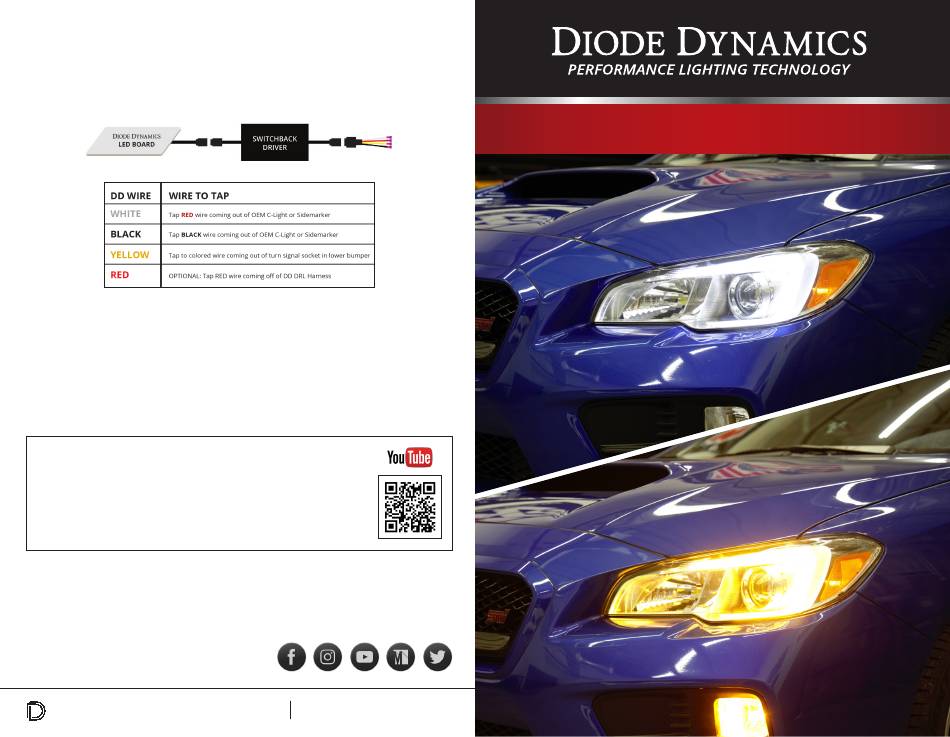

8. First, connect the board connector to the Switchback driver output. Connect the
Switchback driver input to the pigtail. Finally, tap the bare wires to the wiring harness.
See Wiring Method Diagram below. The black wire must be grounded before any
function will work.
IMPORTANT: DO NOT plug the LED panel directly into pigtail without the driver. The
LEDs must be plugged into driver first to control the power.
9. Mount driver and tuck all wires. Driver should be mounted outside of headlight for
serviceability, in a location away from the engine block to avoid excessive heat buildup.
10. Test thoroughly, reseal headlight and reinstall onto vehicle.

NEED MORE HELP?

Scan the QR code to link to our installation video online!
We've taken the time to test our products on your vehicle. We can
guarantee compatibility and fitment the first time – no guessing
game! If you need more help with installation, watch our step-by-step
video to walk you through the process.
Please contact Diode Dynamics should you have any questions about the installation
or wiring process, at 314-205-3033 (9a-5p CST) or contact@diodedynamics.com.
Visit www.diodedynamics.com to find more products for any vehicle.
3 YEAR
100% SATISFACTION

GUARANTEE

WARRANTY

PAGE 3 (314) 205-3033 WWW.DIODEDYNAMICS.COM
2015-17 Subaru WRX/STi
C-Light LED Halos Installation Guide
