MVI56E-LDM-MQTT ♦ MQ Telemetry Transport
ControlLogix® Platform
4.3

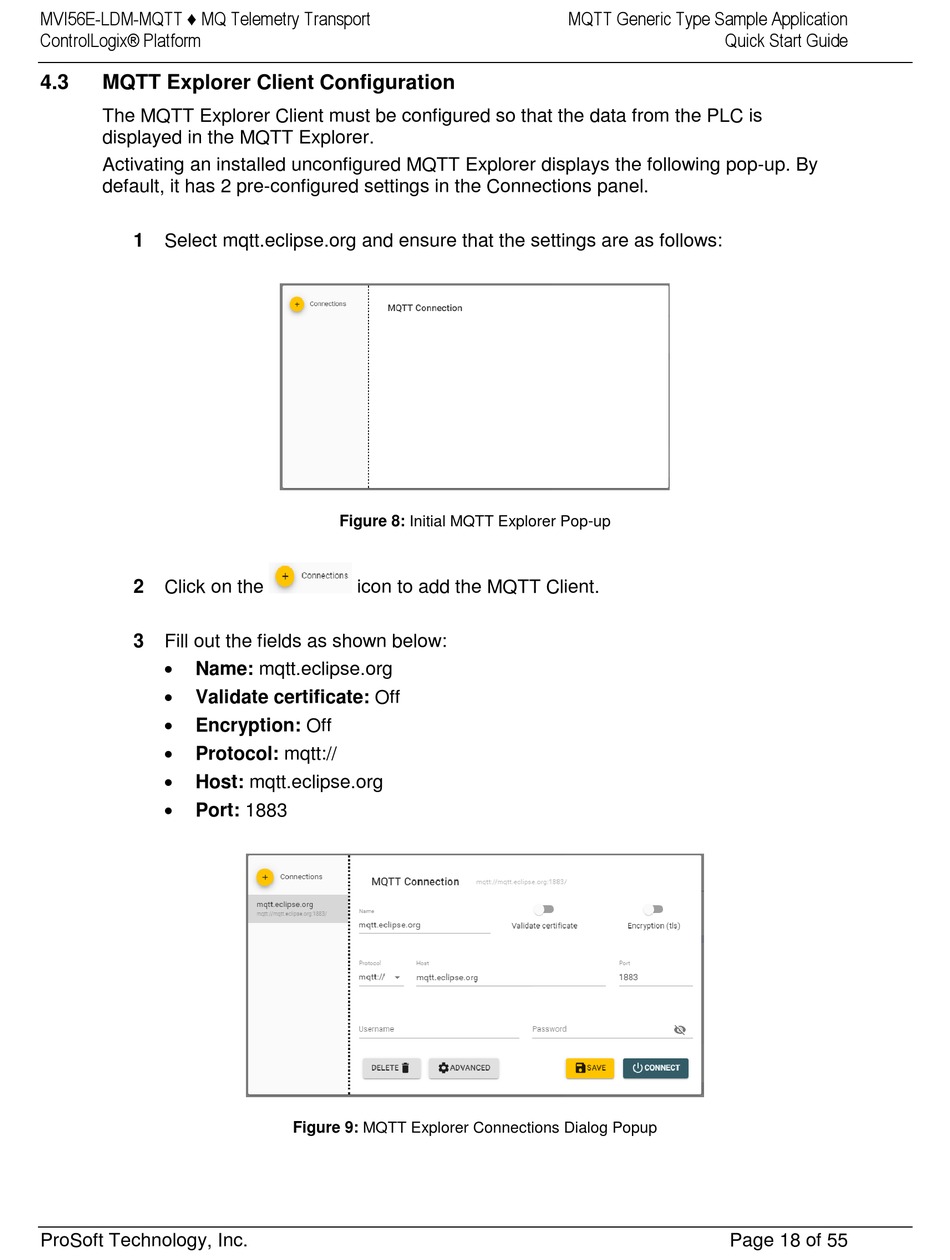

MQTT Explorer Client Configuration

The MQTT Explorer Client must be configured so that the data from the PLC is
displayed in the MQTT Explorer.
Activating an installed unconfigured MQTT Explorer displays the following pop-up. By
default, it has 2 pre-configured settings in the Connections panel.
1 Select mqtt.eclipse.org and ensure that the settings are as follows:
2 Click on the
3 Fill out the fields as shown below:

Name: mqtt.eclipse.org

Validate certificate: Off

Encryption: Off

Protocol: mqtt://

Host: mqtt.eclipse.org

Port: 1883
ProSoft Technology, Inc.
Figure 8: Initial MQTT Explorer Pop-up
icon to add the MQTT Client.
Figure 9: MQTT Explorer Connections Dialog Popup
MQTT Generic Type Sample Application
Quick Start Guide
Page 18 of 55
