ProSoft Technology MVI56E-LDM-MQTT Quick Start Manual page 19

MVI56E-LDM-MQTT ♦ MQ Telemetry Transport
ControlLogix® Platform
4 Click Save, then Connect.
MQTT Explorer displays all other published MQTT Clients currently connected to
the mqtt.eclipse.org broker. Note that published brokers have connections from
many clients, and the client will receive several published messages.
By default, published messages from the MVI56E-LDM are prefixed with "PSFT".
5
In order to filter it, enter PSFT in the search field to display the PSFT topics
coming from the module.
ProSoft Technology, Inc.

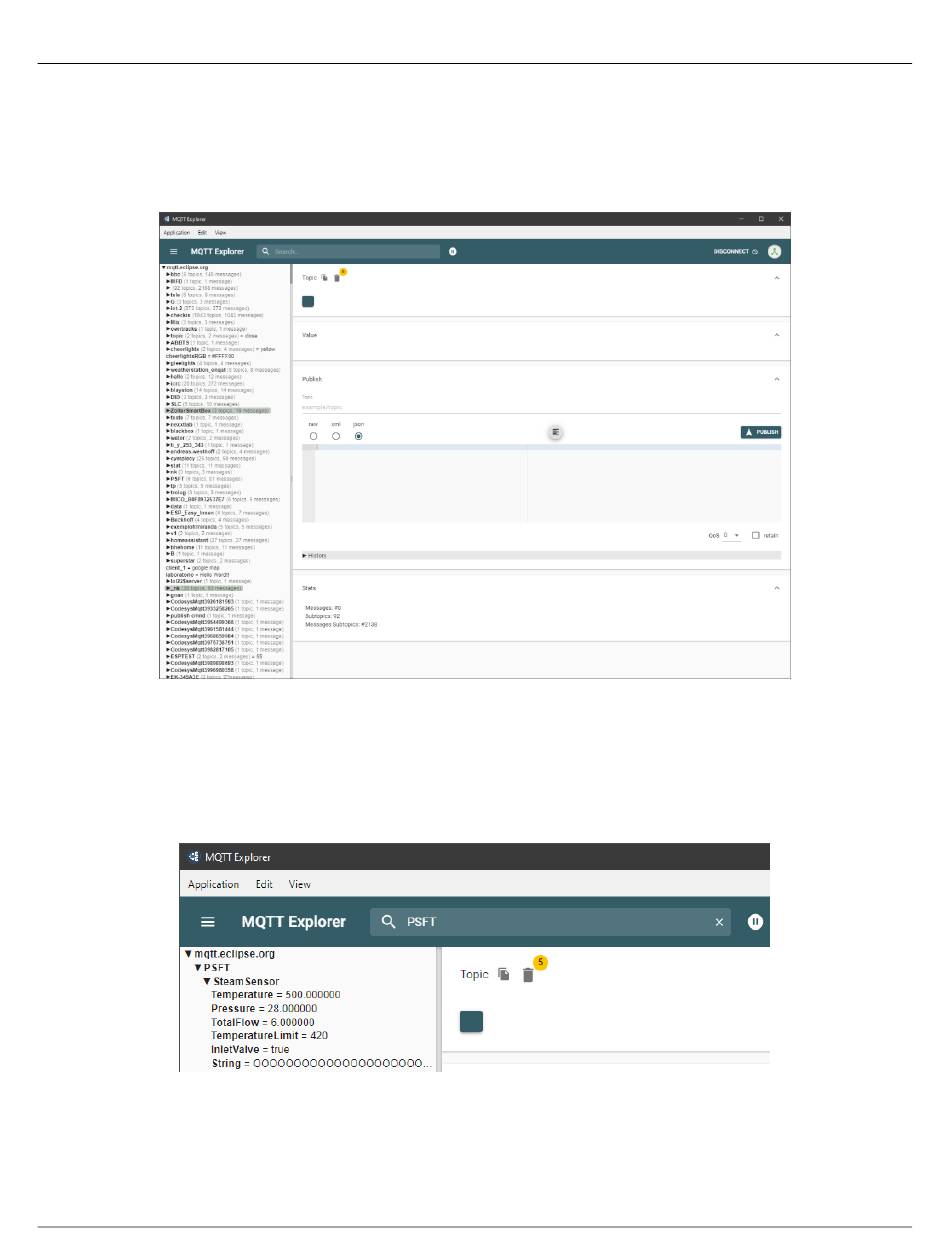

Figure 10: MQTT Explorer Main Display
Figure 11: PSFT Topic Selected
MQTT Generic Type Sample Application
Quick Start Guide
Page 19 of 55
