Un-Encrypted Data Exchange - ProSoft Technology MVI56E-LDM-MQTT Quick Start Manual

MVI56E-LDM-MQTT ♦ MQ Telemetry Transport
ControlLogix® Platform
4.2

Un-encrypted Data Exchange

The home webpage for the MQTT Broker is at https://mqtt.eclipse.org. It has no
diagnostic support.
Rather than verifying the MVI56E-LDM module's communication on the eclipse site, the
communication with the remote Broker can be verified by reviewing the log messages on
the module. To do that, open a browser and enter URL:
http://192.168.0.188/log/messages.txt
(Replace 192.168.0.188 with the MVI56E-LDM module's IP address)

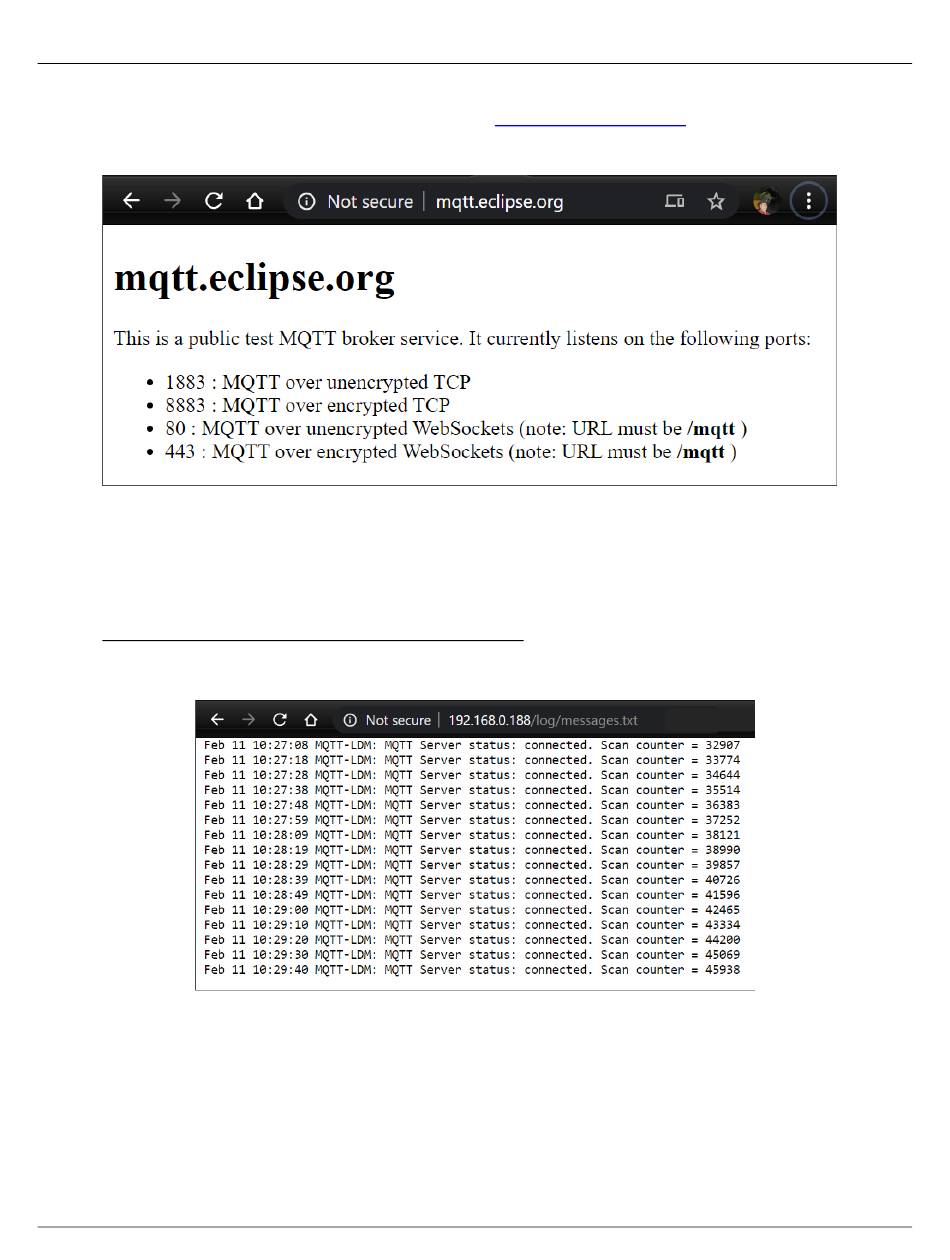

Figure 7: MVI56E-LDM-MQTT successful communications with the remote MQTT Broker
This log file is located in the MVI56-LDM module at this path:
"root/www/html/log/messages.txt"
ProSoft Technology, Inc.
Figure 6: mqtt.eclipse.org Broker Home Page
MQTT Generic Type Sample Application
Quick Start Guide
Page 17 of 55
