Development Setup; Create User; Sharing The C:/Workspace Folder - ProSoft Technology MVI56E-LDM-MQTT Quick Start Manual

MVI56E-LDM-MQTT ♦ MQ Telemetry Transport
ControlLogix® Platform
7

Development Setup

7.1

Create User

Some Docker files will be stored in the Windows 10 \User folder. You can either use your
existing Windows login ID or create a new one.
In addition, the root folder of source code files (C:\Workspace) needs to be shared in
order to access it from the build container. In order to access this shared folder from
Docker container psft, Windows user credentials are required (user name and
password, the shared folder name should be passed as command line arguments when
the script build.ps1 is called).
7.2

Sharing the C:/Workspace Folder

To provide access to source code files from Docker container, share the C:\Workspace
folder as shown in the following figure:
ProSoft Technology, Inc.

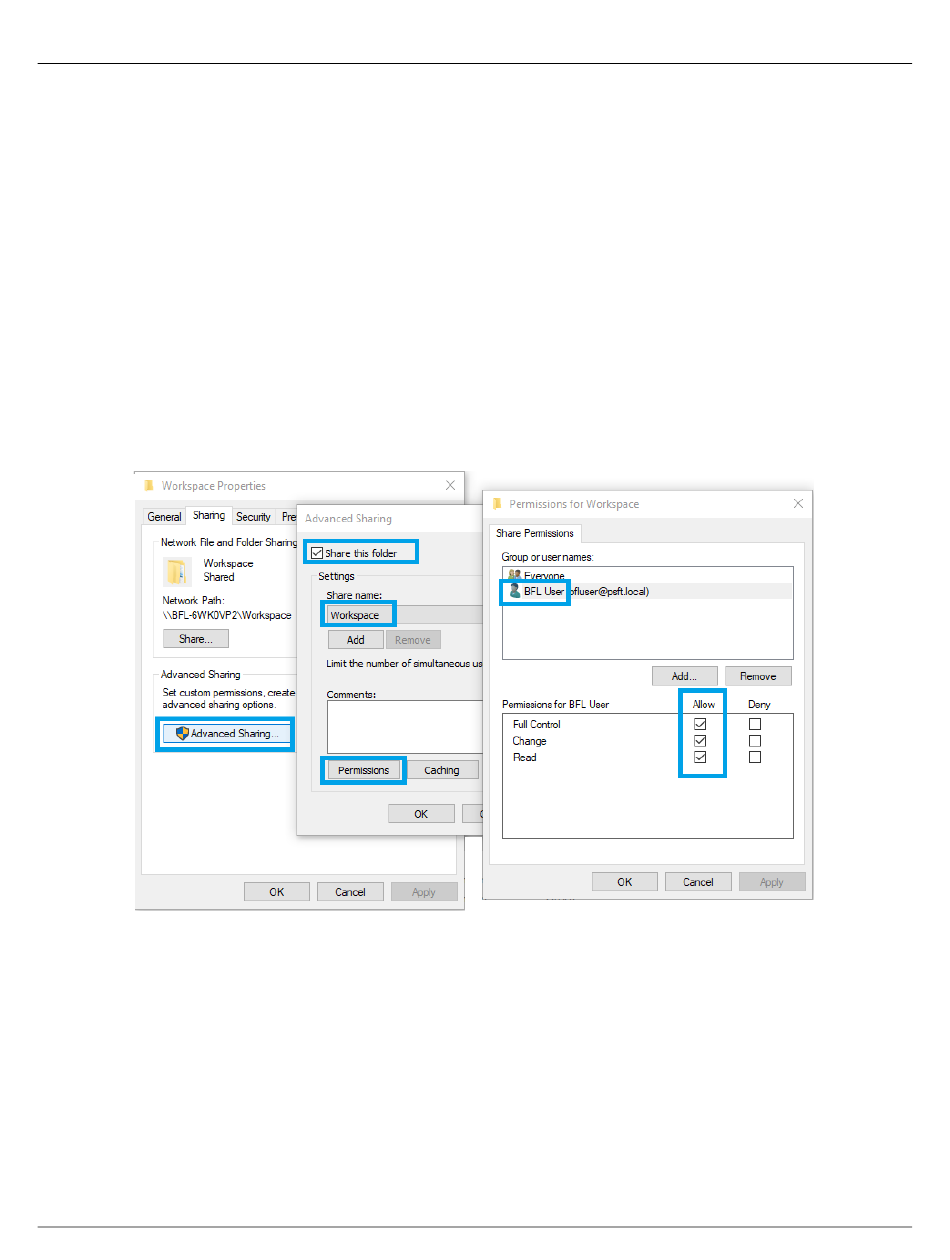

Figure 46: Sharing the C:\Workspace Folder
Development Setup
Quick Start Guide
Page 42 of 55
