Summary of Contents for NXP Semiconductors S12ZVM-EFP
- Page 1 Quick Start Guide S12ZVM-EFP Reference Design Board Enabling BLDC or PMSM fuel pump applications S12ZVM-EFP REFERENCE DESIGN BOARD (RDB)

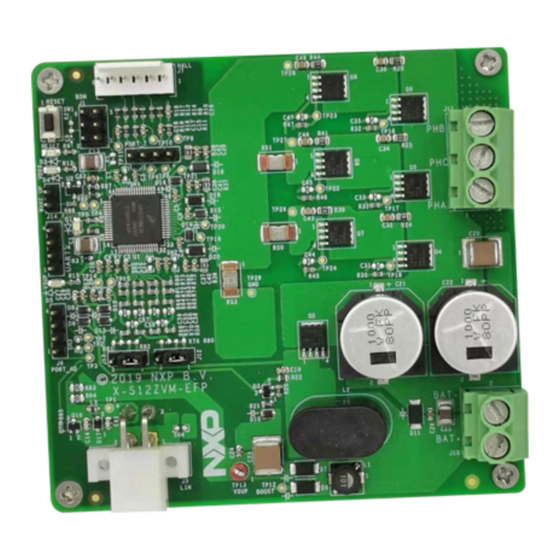

- Page 2 Quick Start Guide GET TO KNOW THE S12ZVM-EFP BOARD N-MOSFET HALL PORT T BUK7J1R4-40H X 7 BLDC/PMSM S12ZVML128 Connector WAKE UP UART (FreeMASTER) PORT AD Power Supply LIN/PWM Figure 1: Front side of S12ZVM-EFP RDB...
- Page 3 Figure 2: Back side of S12ZVM-EFP RDB...
- Page 4 Quick Start Guide S12ZVM-EFP RDB FEATURES STEP-BY-STEP INSTRUCTIONS • 12 V system application; supply Firstly, install CodeWarrior Development ® voltage range from 8 V to 16 V Studio V11 or a newer version for the S12Z MagniV device. ® • Up to 250 W input power at...
-
Page 5: Power Supply
Fuel Pump or Compile and program the project and other BLDC/PMSM then connect the FreeMASTER with the Multilink S12ZVM-EFP board. After that, you can run the motor by using FreeMASTER. For more details, refer to S12ZVM- EFP Software User Guide (SWUG). FreeMASTER... -
Page 6: Headers And Connectors List
Quick Start Guide HEADERS AND CONNECTORS LIST HEADER/CONNECTOR DESCRIPTION For BDM, PIN1-BKGD, PIN2-GND, PIN3-NC, PIN4- RESET, PIN5-NC, PIN6-VDDX For LIN and PWM, PIN1-GND, PIN2-GND, PIN3-NC, PIN4-LIN/PWM For UART TTL FreeMASTER, PIN1-VDDX, PIN2-TXD1, PIN3-RXD1, PIN4-GND For PORTT and external SPI, PIN1-PT3/SS0, PIN2-PT2/ SCK0, PIN3-PT1/MOSI0, PIN4-PT0/MISO0 For external ADC, PIN1-PAD3, PIN2-PAD4, PIN3-PAD8, PIN4-GND... - Page 7 HEADERS AND CONNECTORS LIST JUMPER OPTION SETTING DESCRIPTION For single-shunt current sampling Current sampling routine Default setting; for dual-shunt current sampling For single shunt-current sampling Current sampling routine Default setting; for dual-shunt current sampling...
-
Page 8: Warranty
Visit www.nxp.com/support for a list of phone numbers within your region. Download installation software and documentation WARRANTY at nxp.com/S12ZVM-EFP. Visit www.nxp.com/warranty for complete warranty information. www.nxp.com/S12ZVM-EFP NXP, the NXP logo, CodeWarrior and MagniV are trademarks of NXP B.V. All other product or service names are the property of their respective owners.
