Summary of Contents for NXP Semiconductors S32M27xEVB-L064

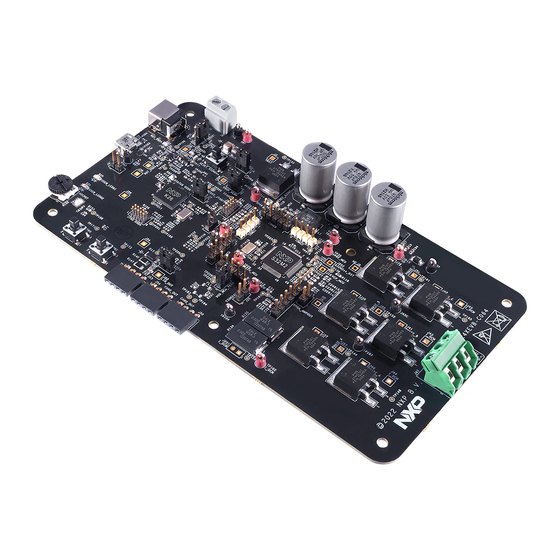

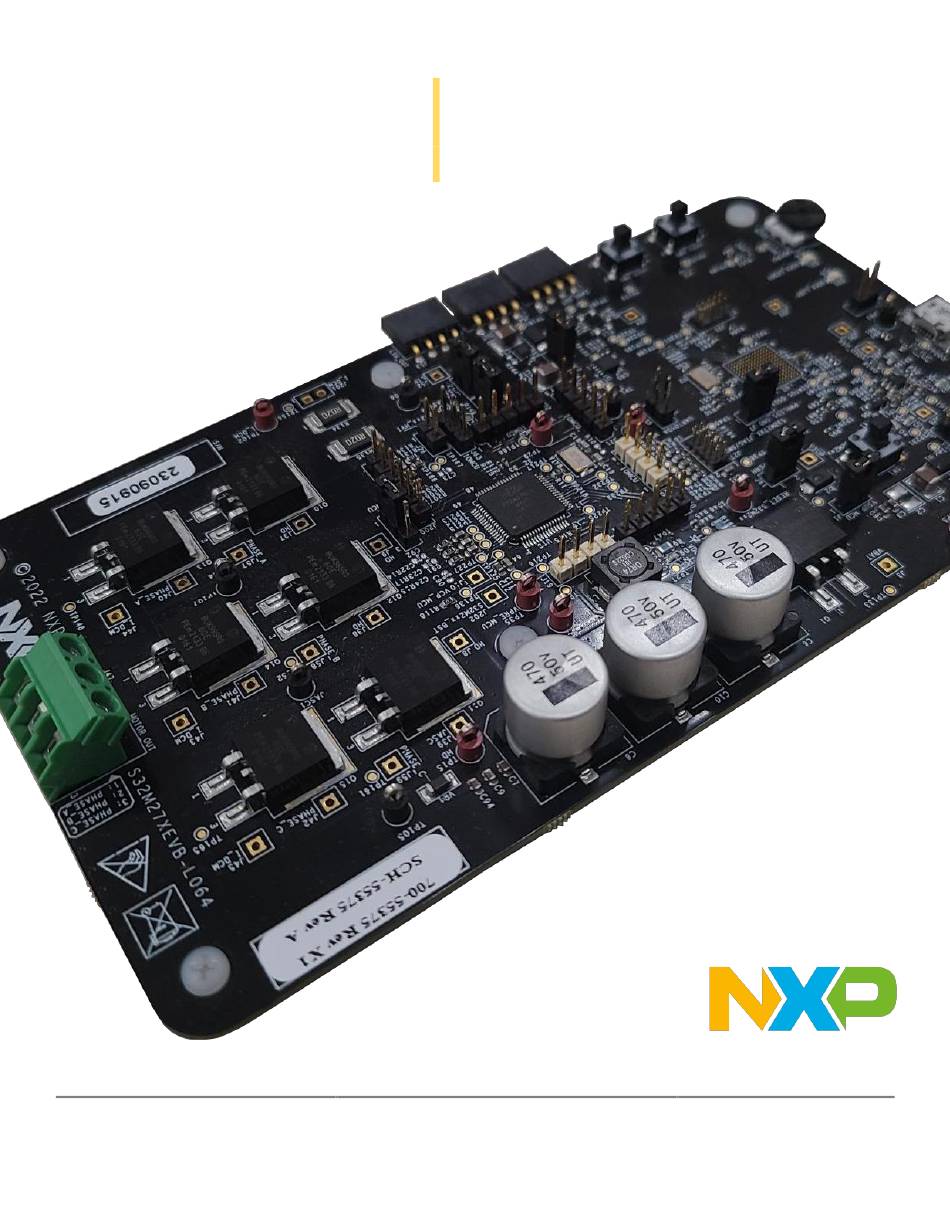

  • Page 1 S32M27xEVB-L064 Evaluation Board for S32M27x LIN MCUs Hardware User Manual S32M27X-EVB-L064 HWUM All Information provided in this document is subject to legal disclaimers © NXP B.V. 2024. All rights reserved REV A – 01/2024 NXP Semiconductors Page 1 of 22...
  • Page 2: Table Of Contents

    S32M27XEVB-L064 VDD_HV_A ..........................9 Motor Control Interface ..............................10 S32M27xEVB-L064 – Programming and Debug Interface .................... 12 S32M27xEVB-L064 – RESET switch and led indicator ..................12 S32M27xEVB-L064 – On-board Debugger ......................13 S32M27xEVB-L064 – CAN PHY..........................14 S32M27xEVB-L064 – LIN PHY ..........................15 S32M27xEVB-L064 –...
  • Page 3: Definitions, Acronyms, And Abbreviations

    Thin Film Transistor. UART Universal Asynchronous Receiver/Transmitter. Universal Serial Bus. S32M27X-EVB-L064 HWUM All Information provided in this document is subject to legal disclaimers © NXP B.V. 2024. All rights reserved REV A – 01/2024 NXP Semiconductors Page 3 of 22...
  • Page 4: S32M27Xevb-L064 - Block Diagram

    VSSC VSSA UART_TX NXP TJA1642 CONNECTOR UART_RX Figure 1. S32M27xEVB-L064 – Block diagram S32M27X-EVB-L064 HWUM All Information provided in this document is subject to legal disclaimers © NXP B.V. 2024. All rights reserved REV A – 01/2024 NXP Semiconductors Page 4 of 22...
  • Page 5: S32M27Xevb-L064 - Features

    • Before the S32M27xEVB-L064 Evaluation board is used or power is applied, please fully read this user manual. An incorrect configuration in the board may cause a irreparable damage on the component, MCU or EVB. Power must be removed from the EVB prior to:...
  • Page 6: S32M27Xevb-L064 - Default Configuration

    5. S32M27xEVB-L064 – Default Configuration Table 1. S32M27xEVB-L064 - Default Configuration Reference / Default Interface Description/Comment Signal Configuration S32M276L_64LQFP S32M276 PTC2 PTC2/LPUART0_RX is routed to NTS0102GD terminal B1 for serial interface to MK26FN2M0VMI18 OnBoard PTC3 PTC3/LPUART0_TX is routed to NTS0102GD terminal B2 for serial interface to...
  • Page 7: Power Supplies Options - Overview

    Table 2. S32M27xEVB-L064 - Default jumpers position. Interface Reference Position Description / Comments VBAT is routed to VSUP VSUP is routed to VSUP_PERH Power Supply VSUP_MCU is routed to VSUP input of MCU Power LEDs to ground connection VDD_MCU is connected to the VDD_MCU_PERH to supply SW peripherals (leds, buttons, user_adc) and...
  • Page 8: Reference Position

    Table 3. S32M27xEVB-L064 - Main power supply connector Connector Description 2.1mm Barrel Connector – J4 Ground This connector should be used to connect the supplied wall-plug main adapter. Note if a replacement or alternative adapter is used, care must be taken to ensure the 2.1mm plug uses the correct polarization as shown.
  • Page 9: S32M27Xevb-L064 - Vpre

    7.2 S32M27xEVB-L064 – VPRE VPRE_MCU is typical 6V and generated from the VSUP_MCU. It can be either generated with an external power FET (gate controlled via GCTL pin) or generated by a PMC internal regulator. VPRE is always powered (FPM and LPM). An external bypass capacitor in the range from 2.2uF to 4.7uF is required.
  • Page 10: Motor Control Interface

    The outputs from the MOSFETs to the motor are connected to J47. S32M27X-EVB-L064 HWUM All Information provided in this document is subject to legal disclaimers © NXP B.V. 2024. All rights reserved REV A – 01/2024 NXP Semiconductors Page 10 of 22...
  • Page 11 Figure 7.S32M27xEVB-L064– Motor Control Interface Table 6.- S32M27xEVB-C064 Motor control out Connector Reference Signal/Connection Number PHASE A PHASE B PHASE C S32M27X-EVB-L064 HWUM All Information provided in this document is subject to legal disclaimers © NXP B.V. 2024. All rights reserved REV A –...
  • Page 12: S32M27Xevb-L064 - Programming And Debug Interface

    9. S32M27xEVB-L064 – Programming and Debug Interface 9.1 S32M27xEVB-L064 – RESET switch and led indicator The RESET switch [SW1] provides an input signal for manual application RESET. The S32M2 MCU will drive the RESET signal to the reset pins in the EVB [PTA5 and RESET]. The RESET LED indicator [D10] will be ON for the duration of the RESET signal.
  • Page 13: S32M27Xevb-L064 - On-Board Debugger

    9.2 S32M27xEVB-L064 – On-board Debugger The EVB incorporates an On-Board Debugger as well as embedded JTAG connectors. It bridges serial and debug communications between an USB host and an embedded target processor. Figure 10. S32M27xEVB-L064– On-board Debugger 10-pin Cortex Debug connector...
  • Page 14: S32M27Xevb-L064 - Can Phy

    The EVB incorporates a CAN interface connected to the S32M27 MCU. Using an NXP can transceiver the TJA1462, supporting both master and slave mode (jumper selectable). The output from the CAN transceiver is connected to J50. Figure 12. S32M27xEVB-L064– CAN Interface S32M27X-EVB-L064 HWUM All Information provided in this document is subject to legal disclaimers ©...
  • Page 15: S32M27Xevb-L064 - Lin Phy

    Figure 13. S32M27xEVB-L064– CAN PHY S32M27xEVB-L064 – LIN PHY The S32M27xEVB-L064 incorporates internally a LIN interface but is necessary connect the required circuitry to configure it as MASTER or SLAVE , the output signal is connected to J50 and J54.
  • Page 16 Figure 14. S32M27xEVB-L064– LIN Interface The pinout of these headers is shown below and is also displayed on the PCB silkscreen. Table 9.- S32M27xEVB-L064 LIN Connector Connector Reference Signal/Connection Number VBAT VBAT S32M27X-EVB-L064 HWUM All Information provided in this document is subject to legal disclaimers ©...
  • Page 17: S32M27Xevb-L064 - User Peripherals

    Color Default USER_LED0 PTD15 USER_LED1 PTD16 Figure 16. S32M27xEVB-L064– User led indicator S32M27X-EVB-L064 HWUM All Information provided in this document is subject to legal disclaimers © NXP B.V. 2024. All rights reserved REV A – 01/2024 NXP Semiconductors Page 17 of 22...
  • Page 18: S32M27Xevb-L064 - User Push Buttons

    USER_LED1 BC847B R163 Figure 17. S32M27xEVB-L064– User led indicator 12.2 S32M27xEVB-L064 – User Push buttons There are 2 push-buttons active high (pulled low, driven to VDD_MCU_PERH), the push button switches (SW2 and SW3) connected to MCU ports. The switches are connected as follows: Table 11.
  • Page 19 Figure 18. S32M27xEVB-L064– User Push buttons VDD_MCU_PERH 1825967-2 TP171 TP170 T PAD_040 T PAD_040 SILK = USER_SW 0 R198 USER_SW0 page[4] R157 0.22UF 0.22UF 0402 0402 VDD_MCU_PERH 1825967-2 TP173 TP172 T PAD_040 T PAD_040 SILK = USER_SW 1 R160 USER_SW1...
  • Page 20: S32M27Xevb-L064 - Adc Rotary Potentiometer

    12.3 S32M27xEVB-L064 – ADC Rotary Potentiometer The EVB incorporates an ADC Rotary Potentiometer (which routes a voltage between 0v to VDD_MCU_PERH) directly connected to ADC Input Channel of the S32M27 Microcontroller, specifically ADC1_P611. Table 12. User ADC Potentiometer Reference Function...
  • Page 21: S32M27Xevb-L064 - Revision History

    S32M27xEVB-L064 – Revision history Table 13. Revision history Schematic/ Document Schematic/ Board Date Board Changes Author Revision Number Revision 01/2024 55375 Internal version Luis Rico S32M27X-EVB-L064 HWUM All Information provided in this document is subject to legal disclaimers © NXP B.V. 2024. All rights reserved REV A –...
  • Page 22: Legal Information
