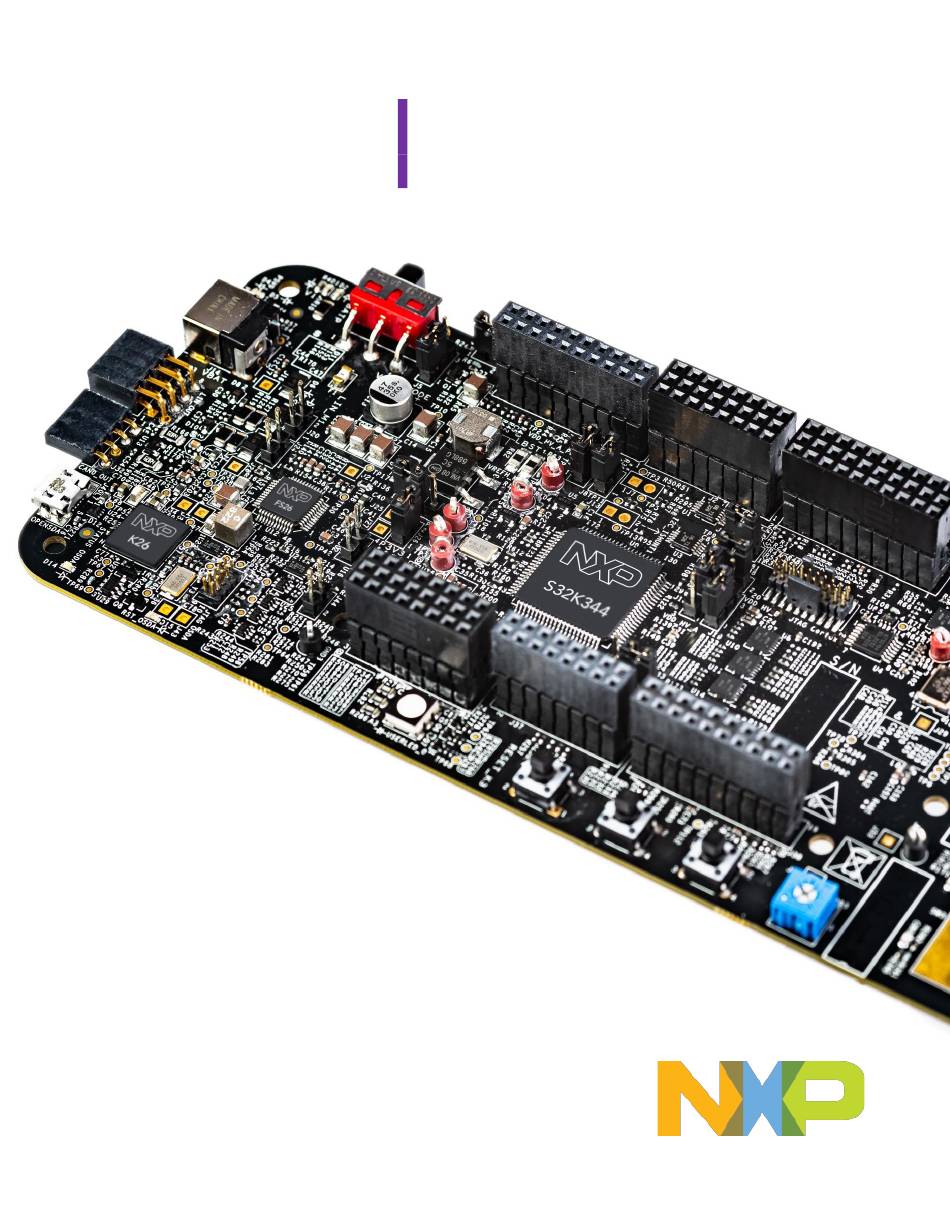

Customer Evaluation Board for S32K3x4 MCUs
Hardware User Manual
S32K3X4EVB-Q172
S32K3X4EVB-S172

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S32K3X4EVB-Q172 and is the answer not in the manual?

Questions and answers

Summary of Contents for NXP Semiconductors S32K3X4EVB-Q172

  • Page 1 S32K3X4EVB-Q172 Customer Evaluation Board for S32K3x4 MCUs Hardware User Manual S32K3X4EVB-Q172 S32K3X4EVB-S172...
  • Page 2: Table Of Contents

    S32K3X4EVB-Q172 | -S172 - Power supply ......................8 S32K3X4EVB-Q172 | -S172 - Main Power Supply ................... 9 S32K3X4EVB-Q172 | -S172 – +5.0 Volts Power Supply ................11 S32K3X4EVB-Q172 | -S172 – +3.3 Volts Power Supply ................12 S32K3X4EVB-Q172 | -S172 – VDD_HV_A ....................12 S32K3X4EVB-Q172 | -S172 - Programming and Debug Interface ..............
  • Page 3: Definitions, Acronyms, And Abbreviations

    S32K3X4EVB-Q172 HWUM NXP Semiconductors S32K3X4EVB-Q172 | S32K3X4EVB-S172 - Hardware User Manual 2 Definitions, Acronyms, and Abbreviations The following list defines the abbreviations used in this document. Compact Disk CMOS Complementary Metal Oxide Semiconductor CPLD Custom Programmed Logic Devices Central Processing Unit...
  • Page 4: S32K3X4Evb-Q172 | -S172 - Block Diagram

    S32K3X4EVB-Q172 HWUM NXP Semiconductors S32K3X4EVB-Q172 | S32K3X4EVB-S172 - Hardware User Manual 3 S32K3X4EVB-Q172 | -S172 - Block Diagram Figure 1. S32K3X4EVB-Q172 | -S172 – Block diagram 4 S32K3X4EVB-Q172 | -S172 - Features IMPORTANT • Verify and download the last version of this document in http://www.nxp.com...
  • Page 5: S32K3X4Evb-Q172 | -S172 - Default Configuration

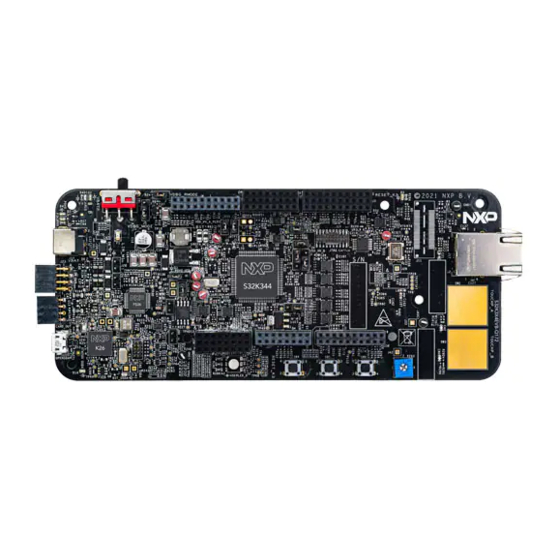

    S32K3X4EVB-Q172 HWUM NXP Semiconductors S32K3X4EVB-Q172 | S32K3X4EVB-S172 - Hardware User Manual Figure 2. S32K3X4EVB-Q172 – Features 5 S32K3X4EVB-Q172 | -S172 - Default Configuration Table 1. S32K3X4EVB-x172 - Default Configuration S32K3X4 S32K3X4 Default Interface EVB- EVB- Reference / Signal Description/Comment Configuration...
  • Page 6: S32K3X4Evb-Q172 | -S172 - Startup

    Follow these steps to connect and power on the board Carefully unpack the S32K3X4EVB-Q172 and observe ESD preventive measures while handling the K3 development board. Connect necessary cables between host PC and EVB board prior to applying power to the EVB.
  • Page 7 S32K3X4EVB-Q172 HWUM NXP Semiconductors S32K3X4EVB-Q172 | S32K3X4EVB-S172 - Hardware User Manual - The power switch -SW1 must be in OFF position before to the EVB be connected to an external power supply. - Once the power switch -SW1 is in OFF position, then the EVB can be connected to an external power supply.
  • Page 8: S32K3X4Evb-Q172 | -S172 - Power Supply

    Indicates that the +3.3Vlinear regulator is enabled and working correctly. Figure 3. S32K3X4EVB-Q172 | -S172 – Power supply Input and LED power indicators If no LED’s are illuminated when power is applied to the EVB and the regulators are correctly enabled using the appropriate jumpers, it is possible that either power supply is not connected properly, or the voltage level is lower that the specified [+12.0V...
  • Page 9: S32K3X4Evb-Q172 | -S172 - Main Power Supply

    S32K3X4EVB-Q172 HWUM NXP Semiconductors S32K3X4EVB-Q172 | S32K3X4EVB-S172 - Hardware User Manual 7.1 S32K3X4EVB-Q172 | -S172 - Main Power Supply Figure 4. S32K3X4EVB-Q172 | -S172 – Main power supply input Table 2. Main power supply connector Connector Description 2.1mm Barrel Connector – J14 This connector should be used to connect the supplied wall-plug mains adapter.
  • Page 10 BC846B 5.1K 0402 R297 10uF MMSZ8V2T1G 0.22UF 0402 Figure 5. S32K3X4EVB-Q172 | -S172 – FS26/Modes Operation Table 3. S32K3X4EVB-Q172 | -S172 – FS26/Modes Operation Reference Jumper Position Description Comments Flash Mode [Default The R1961 resistor to VBATP (VBAT protected +12.0V) is routed configuration] as pull-up to the VDEBUG Pin.
  • Page 11: S32K3X4Evb-Q172 | -S172 - +5.0 Volts Power Supply

    7.2 S32K3X4EVB-Q172 | -S172 – +5.0 Volts Power Supply SILK = P5V0 JUMPER(Default) = 1-2 SILK = P5V0 Figure 6. S32K3X4EVB-Q172 | -S172 – General jumper for the P5V0 (+5.0V) reference Table 4. S32K3X4EVB-Q172 – +5.0 Volts Power Supply Reference Jumper Position...
  • Page 12: S32K3X4Evb-Q172 | -S172 - +3.3 Volts Power Supply

    NXP Semiconductors S32K3X4EVB-Q172 | S32K3X4EVB-S172 - Hardware User Manual 7.3 S32K3X4EVB-Q172 | -S172 – +3.3 Volts Power Supply Figure 7. S32K3X4EVB-Q172 | -S172 – General jumper for the P3V3 (+3.3V) reference Table 5. S32K3X4EVB-Q172 – +.3.3 Volts Power Supply Reference...
  • Page 13 VDD_HV_B_MCU R349 HDR1X2 JUMPER(Default) = 1-2 Figure 9. S32K3X4EVB-Q172 | -S172 – Main power supply S32K344EVB-Q172 | -S172 HWUM All Information provided in this document is subject to legal disclaimers © NXP B.V. 2020. All rights reserved REV A – 10/2021...
  • Page 14 1000pF 0.22UF BZX84-A5V6 0402 0402 Figure 10. S32K3X4EVB-Q172 | -S172 – VREFH power supply S32K344EVB-Q172 | -S172 HWUM All Information provided in this document is subject to legal disclaimers © NXP B.V. 2020. All rights reserved REV A – 10/2021...
  • Page 15: S32K3X4Evb-Q172 | -S172 - Programming And Debug Interface

    0603 S32K3XX External Supply for V11 Internal Core Logic Voltage Supply Figure 11. S32K3X4EVB-Q172 | -S172 – V15 power supply Table 8. S32K3X4EVB-Q172 – V15 Domain Reference Jumper Position Description Comments The FS26_VCORE domain [+1.5V] is directly routed the V15_MCU domain.
  • Page 16: On-Board Debugger

    The EVB incorporates an On-Board Debugger embedded well as JTAG connectors. It bridges serial and debug communications between a USB host and an embedded target processor. Figure 13. S32K3X4EVB-Q172 | -S172 – On-board S32K3 Debugger S32K344EVB-Q172 | -S172 HWUM All Information provided in this document is subject to legal disclaimers ©...
  • Page 17: S32K3X4Evb-Q172 | -S172 - Lin Interface

    TJA1021T/20/C, supporting both master and slave mode (jumper selectable). The output from the LIN transceivers is connected to J23. Figure 14. S32K3X4EVB-Q172 | -S172 – LIN Interface S32K344EVB-Q172 | -S172 HWUM All Information provided in this document is subject to legal disclaimers ©...
  • Page 18 R134 100pF 100pF TJA1022T 0402 0402 0402 0402 LIN Connector Figure 15. S32K3X4EVB-Q172 | -S172 – LIN Physical Layer1 TJA1021HG: Quad LIN 2.2A/SAE J2602 transceiver Table 11. LIN Interface – MCU Connections Signal Name Comment/Description Interface Port TJA1021 LIN1_RX PTB9...
  • Page 19: S32K3X4Evb-Q172 | -S172 - Can Interface

    S32K3X4EVB-Q172 HWUM NXP Semiconductors S32K3X4EVB-Q172 | S32K3X4EVB-S172 - Hardware User Manual 10 S32K3X4EVB-Q172 | -S172 - CAN Interface Figure 16. S32K3X4EVB-Q172 | -S172 – CAN Interface Table 12. CAN Interface - Connectors Circuit/ Connector Reference Signal/Connection Interface Number CAN0 CANH0...
  • Page 20: S32K3X4Evb-Q172 | -S172 - Ethernet Interface

    R170 R204 TJA1043 0.22UF 0402 0402 0402 0402 0402 Figure 17. S32K3X4EVB-Q172 | -S172 – CAN Physical Layer0 - TJA1043 Secure HS-CAN Transceiver Table 13. CAN Interface – MCU Connections Signal Name Comment/Description Interface Port TJA1153 CAN0_RX PTA6 [CAN0_RX Module] is routed to CAN Phy0...
  • Page 21: S32K3X4Evb-S172 - Ethernet Mii/Rmii Interface

    S32K3X4EVB-Q172 HWUM NXP Semiconductors S32K3X4EVB-Q172 | S32K3X4EVB-S172 - Hardware User Manual 11.1 S32K3X4EVB-S172 – Ethernet MII/RMII Interface The S32K3X4EVB-S172 version incorporates a complete Ethernet interface providing a MII and/or RMII connectivity and LPSPI, I2Cx, GPIOs [3] as digital signals and +3.3V and +12.0V (+5.0V as optional) to the ethernet SABRE connector.
  • Page 22 S32K3X4EVB-Q172 HWUM NXP Semiconductors S32K3X4EVB-Q172 | S32K3X4EVB-S172 - Hardware User Manual Ethernet MII/RMII SABRE Connector – Pinout 11.1.1 Table 14. Ethernet MII/RMII Configuration MODULE SIGNAL DESCRIPTION /COMMENT /FUNCTION PORT MII/RMII ENET_MII_RMII_RXD0 PTD9 All ports routed to the Ethernet MII/RMII signal are not...
  • Page 23: S32K3X4Evb-Q172 - 10/100 T-Base Ethernet Phy

    0.22UF 0.22UF 0402 0402 0402 Figure 21. S32K3X4EVB-Q172 – 10/100 T-Base Ethernet Phy S32K344EVB-Q172 | -S172 HWUM All Information provided in this document is subject to legal disclaimers © NXP B.V. 2020. All rights reserved REV A – 10/2021 NXP Semiconductors...
  • Page 24: S32K3X4Evb-Q172 | -S172 - Qspi-A Interface

    S32K3X4EVB-Q172 HWUM NXP Semiconductors S32K3X4EVB-Q172 | S32K3X4EVB-S172 - Hardware User Manual 12 S32K3X4EVB-Q172 | -S172 - QSPI-A Interface The S32K3 EVB incorporates a MX25L6433F is 64Mb bits Serial NOR Flash memory, which is connected to the QSPIA Module of the S32K344 MCU.
  • Page 25: S32K3X4Evb-Q172 | -S172 - User Peripherals

    S32K3X4EVB-Q172 HWUM NXP Semiconductors S32K3X4EVB-Q172 | S32K3X4EVB-S172 - Hardware User Manual Module Signal DESCRIPTION /COMMENT /Function PORT QSPI_A_CS_MCU PTC3 13 S32K3X4EVB-Q172 | -S172 - User Peripherals 13.1 User RGB LED Indicator There is 1 active high user RGB LEDs are connected by NPN transistors to the MCU ports. The USERLEDs are connected as follows: Table 16.
  • Page 26: User Pushbuttons

    S32K3X4EVB-Q172 HWUM NXP Semiconductors S32K3X4EVB-Q172 | S32K3X4EVB-S172 - Hardware User Manual P5V0 R279 680.0 R282 680.0 R286 680.0 LED RED/GRN/BL SILK = USERLED_0 TP68 TPAD 0201 R288 Page[5] RGBLED0_BLUE MMBT3904TT1G 0201 R287 TP66 TPAD 0201 R285 Page[5] RGBLED0_GREEN MMBT3904TT1G 0201...
  • Page 27: Adc Rotary Potentiometers

    S32K3X4EVB-Q172 HWUM NXP Semiconductors S32K3X4EVB-Q172 | S32K3X4EVB-S172 - Hardware User Manual VDD_HV_B_PERH TP114 TP108 TPAD TPAD 0201 R260 USER_SW0 Page[5] C189 1825967-2 R259 0.22UF 0.22UF 0402 0402 0201 VDD_HV_B_PERH TP112 TP107 TPAD TPAD 0201 R262 USER_SW1 Page[5] C194 1825967-2 R261 0.22UF...
  • Page 28 S32K3X4EVB-Q172 HWUM NXP Semiconductors S32K3X4EVB-Q172 | S32K3X4EVB-S172 - Hardware User Manual Figure 28. S32K3X4EVB-Q172 – ADC Rotary Potentiometers VDD_HV_A_PERH R601 Input Channel TP111 HDR 1X1 TPAD R293 R592 1.0K ADC_POT0 Page[5] C202 C199 0.22UF 0.22UF 0402 0402 Figure 29. S32K3X4EVB-Q172 – ADC Rotary Potentiometers...
  • Page 29: S32K3X4Evb-Q172 | -S172 - Default Jumpers

    S32K3X4EVB-Q172 HWUM NXP Semiconductors S32K3X4EVB-Q172 | S32K3X4EVB-S172 - Hardware User Manual 14 S32K3X4EVB-Q172 | -S172 - Default Jumpers Figure 30. S32K3X4EVB-Q172 | -S172 – Default jumpers’ configuration Table 19. Default Jumper Configuration Interface Reference Position Description / Comments FS26x FS26_VLDO1 [+5.0V] is routed to P5V0 domain FS26_VLDO2 [+3.3V] is routed to P3V3 domain...
  • Page 30: S32K3X4Evb-Q172 | -S172 - Revision History

    S32K3X4EVB-Q172 HWUM NXP Semiconductors S32K3X4EVB-Q172 | S32K3X4EVB-S172 - Hardware User Manual 15 S32K3X4EVB-Q172 | -S172 - Revision history Table 20. Revision history Schematic Schematic Document Date / Board / Board Changes Author Revision Number Revision 10/2021 51972 Internal version Jesús Sánchez...
  • Page 31: Legal Information
