Connecting Connectors for Sensor Head

・ Ensure the cutout of connector smoothly fits the protruded part of
1
2
・ To remove connector from the controller, turn the lock in counterclockwise direction.
16
SENSOR HEAD-MANUAL-E.indd 16
controller. Forced connector insertion can damage the connector pin
seriously, causing bend or other problems.

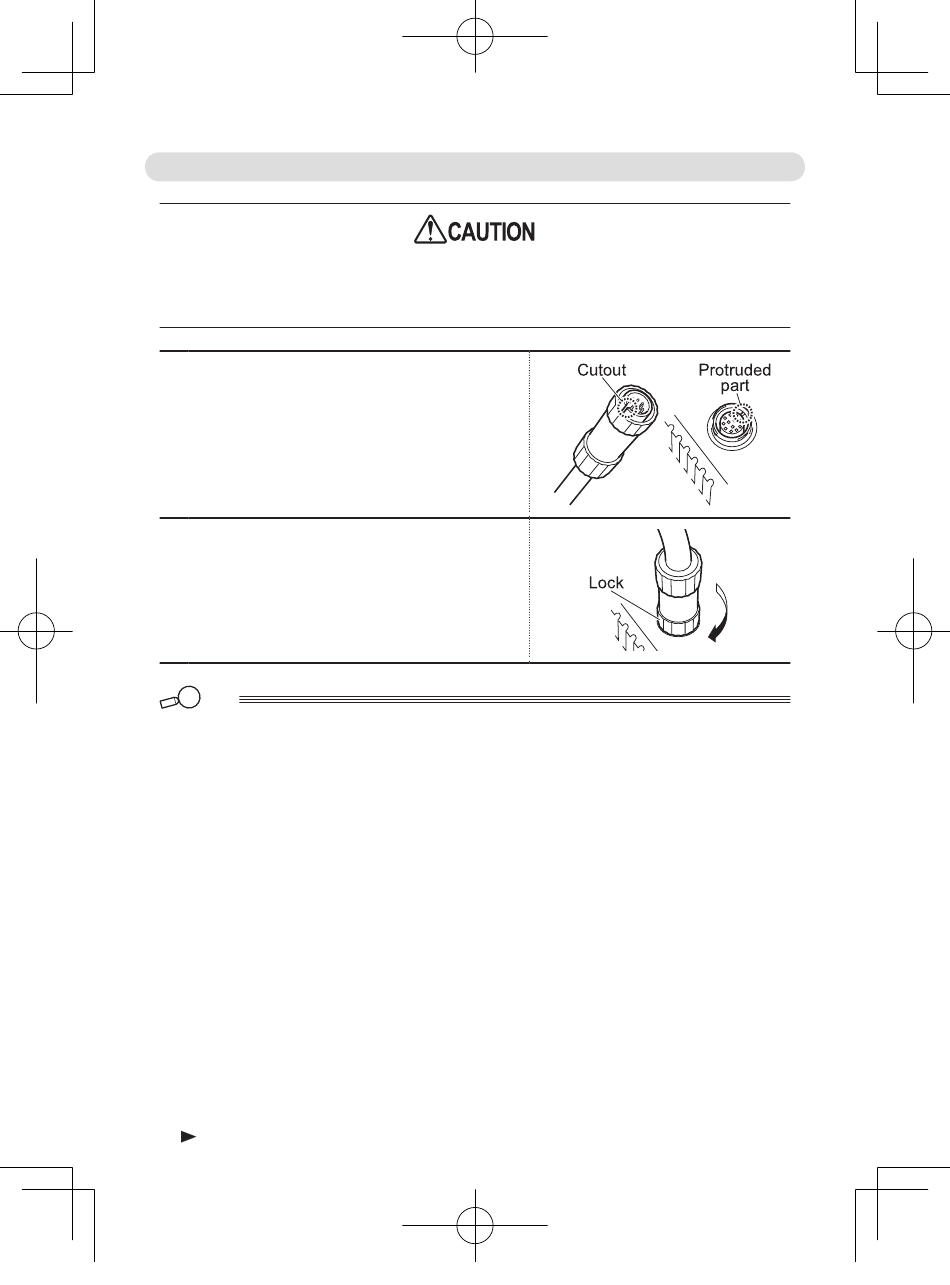

Insert the connector cutout to the
protruded part of controller.
Turn the connector lock to the direction
of arrow mark (clockwise direction) until
it clicks.
M emo
Displacement sensor
