Summary of Contents for Extech Instruments 382203

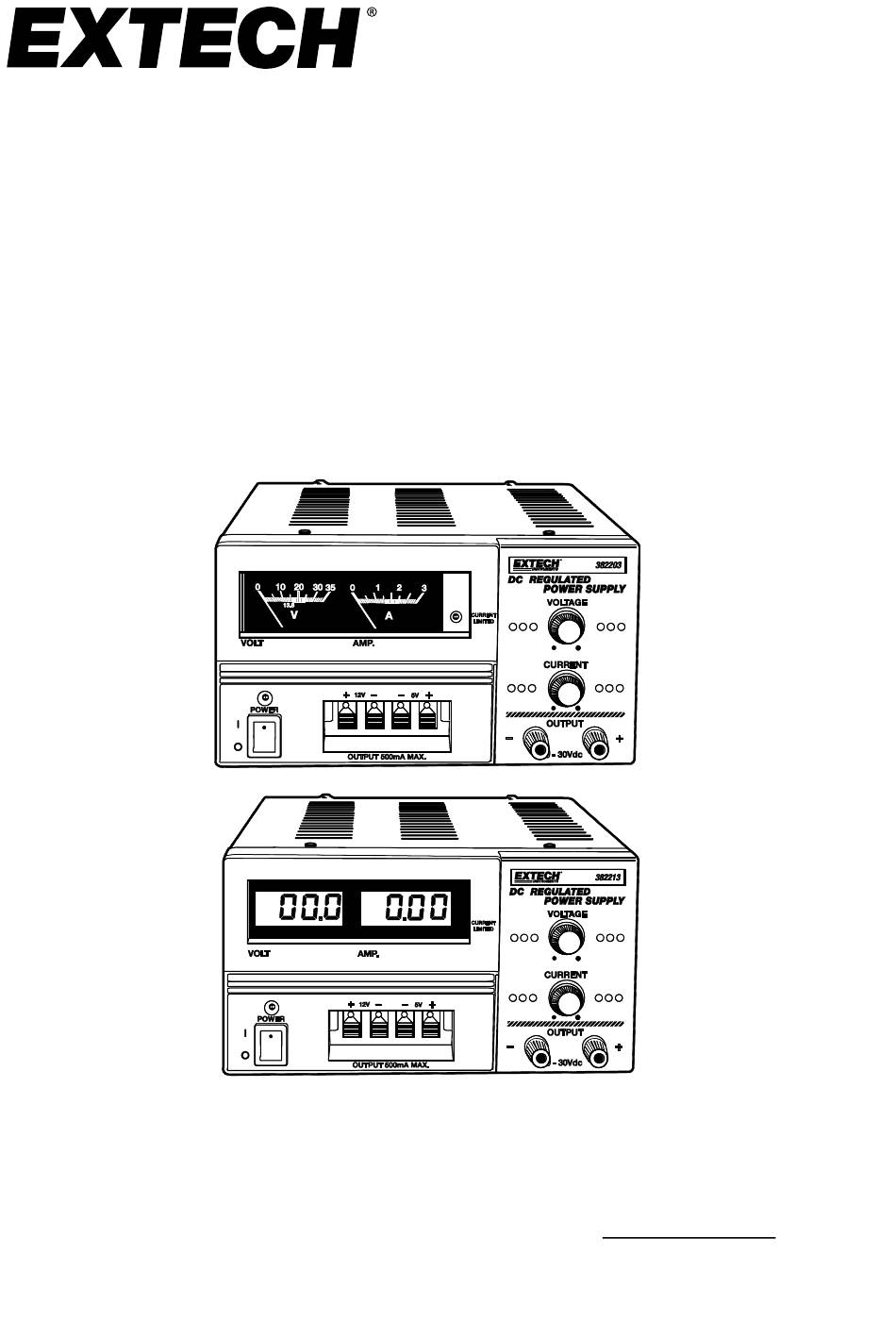

- Page 1 User Manual Three Output DC Regulated Power Supply Models 382203 (Analog) and 382213 (Digital) Additional User Manual Translations available at www.extech.com...

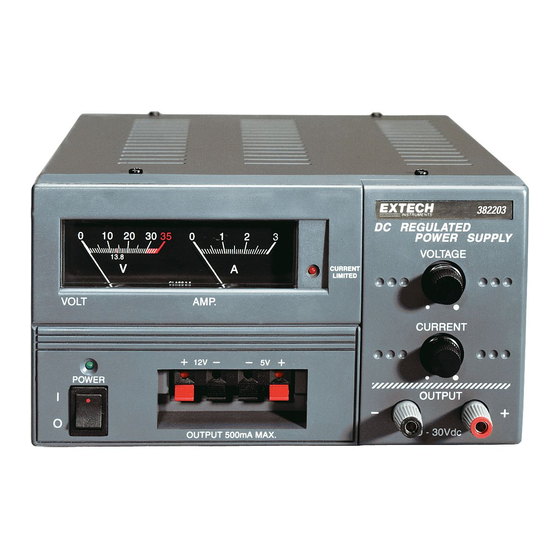

- Page 2 Introduction Congratulations on selecting Extech's Model 382203 (analog) or 382213 (digital) Regulated DC Power Supply. The 382203 and 382213 are solid state, compact, well regulated supplies suitable for many applications including bench testing, field service, hobby and telecommunication equipment use.
- Page 3 7. For 5VDC and 12VDC outputs, use the Fixed Output terminals. 8. The analog or digital displays will indicate actual current and voltage outputs for the main output. 9. Keep the meter's cooling vents (top and sides) clear of obstacles to prevent overheating. 382203-382213-en-US_V2.0 8/19...
- Page 4 Load Regulation (10%-90% rated voltage): Ripple Current (RMS): 10mA Output Current Range: 0-3A (Max. 3.1-3.5A) Copyright © 2012-2019 FLIR Systems, Inc. All rights reserved including the right of reproduction in whole or in part in any form www.extech.com 382203-382213-en-US_V2.0 8/19...
