Summary of Contents for UNIS Big Foot Crush

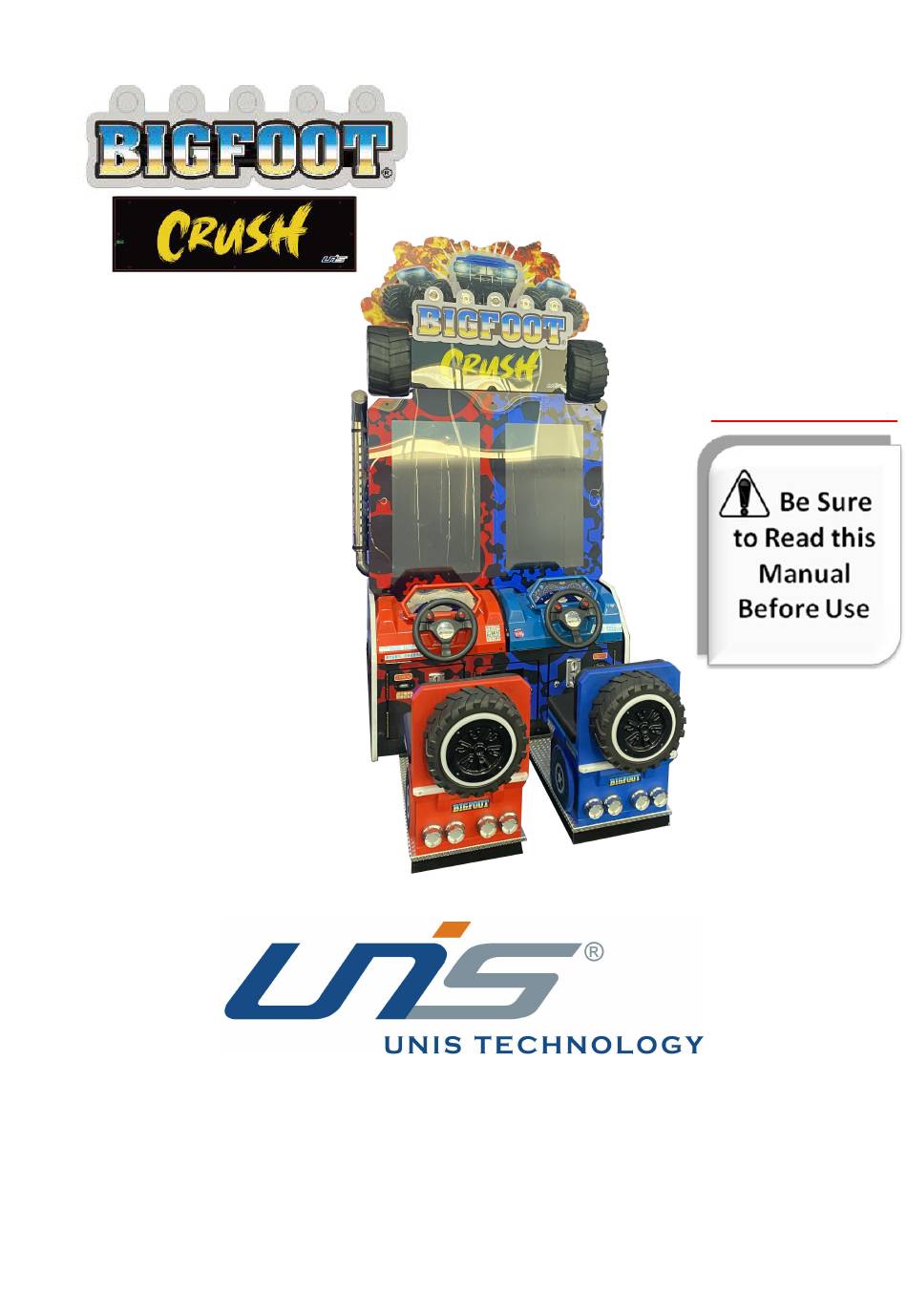

  • Page 1 IMPORTANT Operation Manual...
  • Page 2 Big Foot Crush GMP Manual WE ARE HERE TO ASSIST For parts and service Have Questions? Contact us! UNIS SERVICE CENTER Tel: 972-241-4263 Email: service@unispartsandservice.com www.unispartsandservice.com When contacting Service, you will need the following information and the name of your authorized distributor.

  • Page 3: Table Of Contents

    Big Foot Crush GMP Manual CONTENT IMPORTANT SAFETY INSTRUCTIONS ............... 3 1. SPECIFICATIONS ....................5 2. CONTENTS OF THE ACCESSORY KIT ..............6 3. PART NAME ......................7 4. SET UP & INSTALLATION ..................8 5. HOW TO PLAY ...................... 11 6.

  • Page 4: Important Safety Instructions

    Big Foot Crush GMP Manual Thank you for purchasing Big Foot Crush GMP. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 5 Big Foot Crush GMP Manual Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and surrounding environment from potential damage. This product is an indoor game machine. Do not install outdoors.

  • Page 6: Specifications

    Big Foot Crush GMP Manual 1. SPECIFICATIONS Rated power supply: AC110V 50/60Hz; AC220V 50/60Hz (It is subject to the nameplate on the back of the machine.) Min. Power consumption: 250W Max. Power consumption: 300W Dimension: W48.86×D60.16×H90.55 in W1241 ×D1528 ×H2300 mm Weight：Approximately 507.06 lb/230 kg...

  • Page 7: Contents Of The Accessory Kit

    Big Foot Crush GMP Manual 2. CONTENTS OF THE ACCESSORY KIT Open the package and make sure all the items are included: Following accessories Part No. Code Name Picture Power cord B138-0002-00 2.33.01.010020 3×16AWG Fuse B138-0342-00 2.19.01.000012 Φ5×20mm T5A/250VAC B138-0004-00 4.14.40000360 Manual B138-0005-00 2.53.00171002...

  • Page 8: Part Name

    Big Foot Crush GMP Manual 3. PART NAME Key Components Marquee Assembly Monitor Ticket Dispenser Steering Wheel Coin Mechanism Seat Assembly 11/26/2020...

  • Page 9: Set Up & Installation

    Big Foot Crush GMP Manual 4. SET UP & INSTALLATION NOTICE We do not recommend using power tools as they may cause damage. This product is an indoor game machine. Do not install outdoors.  Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid.
  • Page 10 Big Foot Crush GMP Manual 4.3 Play Zone This machine requires space for playing and for maintenance as shown below. Leave space around the game upon installation: Service area: 20 in Service area Play area NOTICE Your unit must be leveled to operate properly.
  • Page 11 Big Foot Crush GMP Manual 4.5 Machine Installation Step 1 Utilize screw sets to fix the POP assembly to the cabinet. POP assembly Cabinet Cross recessed Name pan head screw SPEC M4×12 Step 2 Align the Car assembly with the cabinet. Connect all cables. Utilize screws to fix the Seat assembly to the cabinet.

  • Page 12: How To Play

    Big Foot Crush GMP Manual 5. HOW TO PLAY 5.1 Insert coins to play. Turn the wheel to select car. Step on pedal to confirm. 5.2 Turn the wheel to select mode. Step on pedal to confirm. 5.3 Turn the wheel to control the car. Step on pedal to go faster.
  • Page 13 Big Foot Crush GMP Manual 5.4 About game: 11/26/2020...

  • Page 14: Game Option

    Big Foot Crush GMP Manual 6. GAME OPTION 6.1 Adjustment button instruction Open the coin door and there is a meter panel. Press Settings button to enter the setting menu. Settings Test Reset 6.2 Setting menu 6.2.1 Main menu 6.2.2 Basic Setting...
  • Page 15 Big Foot Crush GMP Manual 6.2.4 Input Test 6.2.5 Output Test 1P Coin Side Light 2P Coin Top Light 1P Steering Wheel Seat Light 2P Steering Wheel Seat Back Light 1P Accelerator Pedal 1P Ticket Drive 2P Accelerator Pedal 2P Ticket Drive...
  • Page 16 Big Foot Crush GMP Manual 6.2.8 Bookkeeping Player1 Coins Tickets Payout 0.00 Back 6.2.9 Daily Record Date Weekday RunTime Coins Tickets Payout 2014-06-061 Fri 00:01 0.00 Prev. Page Next Page Clear Back 11/26/2020...

  • Page 17: Troubleshooting

    Big Foot Crush GMP Manual 7. TROUBLESHOOTING 7.1 Common Problem Please confirm that all connectors fit tightly. Symptom Possible Cause Recommended action Frame assembly connector is Game will not Check connector. loose. start Frame assembly fault Contact with UNIS Service.
  • Page 18 Big Foot Crush GMP Manual If you see following error signs showing on the display, please try the recommended action. Display Possible Cause Recommended action Check and reconnect the The connection part of the loose part of the PC or IO IO board and PC is loose.
  • Page 19 Big Foot Crush GMP Manual 7.2 System Recovery Operation (NOTE: Do not disconnect power during this process.) 1. Turn off the game. Remove the recovery stick from the machine. (Note: This process may take up to 60 minutes) Insert the recovery stick into the port at the back of the computer.

  • Page 20: Maintenance & Inspection

    Big Foot Crush GMP Manual 8. MAINTENANCE & INSPECTION 8.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Test game before operation each day. 2. Conduct monthly routine checks of game components to ensure good working condition.

  • Page 21: Overall Construction

    Big Foot Crush GMP Manual 9. OVERALL CONSTRUCTION 9.1 General Assembly Part No. Code No. Name Version Qty 1 B138-1101-00 202.4.2003.013 Pipe fixing plate V1.1 2 B138-1102-00 206.4.2003.016 pipe plate V1.1 11/26/2020...
  • Page 22 Big Foot Crush GMP Manual 9.2 Cabinet Assembly Part No. Code No. Name Version Qty 1 B138-0278-00 2.60.00014000 Louver V1.1 2 B138-0271-00 202.4.2003.031 Monitor mounting plate V1.1 3 B138-0279-00 2.60.00007000 Ticket box V1.1 B138-0280-00 202.4.2003.025 Coin outer box V1.1 B138-0281-00 202.4.2003.026 Coin inner box V1.1...
  • Page 23 Big Foot Crush GMP Manual Part No. Code No. Name Version Qty 9 B138-0283-00 202.4.2003.038 Counter plate V1.1 10 B138-0272-00 202.1.1707.041 Pressing plate(S) V1.1 11 B138-0277-00 202.4.2003.024 Moulding plate 1 V1.1 12 B138-0269-00 202.4.2003.023 Light strip plate 1 V1.1 13 B138-0268-00 202.4.2003.022 Moulding plate 2 V1.1...
  • Page 24 Big Foot Crush GMP Manual 9.3 Red Seat Assembly Part No. Code No. Name Version Qty 1 B138-0902-00 206.4.2003.007 Red seat V1.1 2 B138-0903-00 206.4.2003.008 Tyre V1.1 3 B138-0904-00 202.4.2003.033 Tyre light fixing plate V1.1 4 B138-0905-00 206.4.2003.018 Tyre light plate V1.1...
  • Page 25 Big Foot Crush GMP Manual 9.4 Blue Seat Assembly Part No. Code No. Name Version Qty 1 B138-1002-00 206.4.2003.011 Blue seat V1.1 2 B138-0903-00 206.4.2003.008 Tyre V1.1 3 B138-0904-00 202.4.2003.033 Tyre light fixing plate V1.1 4 B138-0905-00 206.4.2003.018 Tyre light plate V1.1...
  • Page 26 Big Foot Crush GMP Manual 9.5 Marquee Assembly Part No. Code No. Name Version Qty 1 B138-0102-00 205.4.2003.006 POP decal V1.1 2 B138-0103-00 205.4.2003.002 Marquee decal V1.1 3 B138-0104-00 205.4.2003.005 LOGO decal V1.1 4 B138-0105-00 206.4.2003.001 L Tyre plastic V1.1 5 B138-0106-00 205.4.2003.004...
  • Page 27 Big Foot Crush GMP Manual 9.6 Red Control Panel Assembly Part No. Code No. Name Version Qty 1 B138-0702-00 206.4.2003.003 Red ctrl panel plastic V1.1 2 B138-0703-00 206.4.2003.004 Red milometer plastic V1.1 3 B138-0704-00 205.4.2003.003 Control panel L decal V1.1 4 B138-0705-00 202.4.2003.027...
  • Page 28 Big Foot Crush GMP Manual Part No. Code No. Name Version Qty B138-0710-00 202.4.13.17B.010 Vibration mounting base plate V1.1 B138-0711-00 201.06.000175 Deep groove bearing V1.1 B138-0712-00 202.4.13.17B.011 Vibration mounting plate V1.1 B138-0711-00 201.06.000175 Deep groove bearing V1.1 3 B138-0713-00 202.4.2003.012 Rotating shaft V1.1...
  • Page 29 Big Foot Crush GMP Manual 9.7 Blue Control Panel Assembly Part No. Code No. Name Version Qty 1 B138-0802-00 206.4.2003.005 Blue ctrl panel plastic V1.1 2 B138-0803-00 206.4.2003.006 Blue milometer plastic V1.1 3 B138-0804-00 205.4.2003.007 Control panel R decal V1.1 4 B138-0705-00 202.4.2003.027...
  • Page 30 Big Foot Crush GMP Manual Part No. Code No. Name Version Qty B138-0710-00 202.4.13.17B.010 Vibration mounting base plate V1.1 B138-0711-00 201.06.000175 Deep groove bearing V1.1 B138-0712-00 202.4.13.17B.011 Vibration mounting plate V1.1 B138-0711-00 201.06.000175 Deep groove bearing V1.1 3 B138-0713-00 202.4.2003.012 Rotating shaft V1.1...
  • Page 31 Big Foot Crush GMP Manual 9.8 R Pipe Assembly Part No. Code No. Name Version Qty 1 B138-0502-00 202.4.2003.009 Upper pipe V1.1 2 B138-0503-00 202.4.2003.035 Pipe connect plate V1.1 3 B138-0504-00 206.4.2003.017 Pipe light plastic V1.1 4 B138-0505-00 202.4.2003.010 Middle pipe V1.1...
  • Page 32 Big Foot Crush GMP Manual 9.9 L Pipe Assembly Part No. Code No. Name Version Qty 1 B138-0502-00 202.4.2003.009 Upper pipe V1.1 2 B138-0503-00 202.4.2003.035 Pipe connect plate V1.1 3 B138-0504-00 206.4.2003.017 Pipe light plastic V1.1 4 B138-0505-00 202.4.2003.010 Middle pipe V1.1...
  • Page 33 Big Foot Crush GMP Manual 9.10 Cabinet Wooden Assembly Part No. Code No. Name Version Qty 1 B138-0207-00 203.4.2003.007 L side bottom board V1.1 2 B138-0210-00 203.4.2003.008 L side upper board V1.1 3 B138-0213-00 203.4.2003.009 Monitor board V1.1 4 B138-0217-00 203.4.2003.010 R side upper board V1.1 5 B138-0220-00 203.4.2003.011 R side bottom board V1.1...
  • Page 34 Big Foot Crush GMP Manual Part No. Code No. Name Version Qty B138-0229-00 203.4.2003.014 DBV mounting board V1.1 B138-0231-00 2.53.00171001 171A lock V1.1 B138-0232-00 203.4.2003.015 L coin door V1.1 B138-0294-00 2.53.00172001 171B lock V1.1 11 B138-0235-00 203.4.2003.016 Back bottom base board V1.1 12 B138-0237-00 203.4.2003.017...
  • Page 35 Big Foot Crush GMP Manual 9.11 Decals 11/26/2020...
  • Page 36 Big Foot Crush GMP Manual Part No. Code No. Name Version Qty 1 B138-0106-00 205.4.2003.004 LOGO light plate decal V1.1 2 B138-0202-00 205.4.2003.001 Display decal V1.1 3 B138-0298-00 205.4.2003.008 Coin mechanism assembly decal V1.1 4 B138-0973-00 205.4.2003.012 Red seat L decal V1.1...
  • Page 37 Big Foot Crush GMP Manual 11/26/2020...
  • Page 38 Big Foot Crush GMP Manual Part No. Code No. Name Version Qty 1 B138-0321-00 2.56.00.000001 Coin counter decal V1.1 2 B138-0322-00 2.56.00.000002 Ticket counter decal V1.1 3 B138-0325-00 2.56.00.000009 Service decal V1.1 4 B138-0324-00 2.56.00.000006 Reset decal V1.1 5 B138-0326-00 2.56.00.000092 Settings decal V1.1...
  • Page 39 Big Foot Crush GMP Manual 9.12 Electrical Components Part No. Code No. Name Version 1 B138-0147-00 2.20.02.015019 White light strip V1.1 47.24in (1.2m) 2 B138-0130-00 2.20.04.000041 Spotlight V1.1 3 B138-0129-00 2.20.02.020015 SK9822 light strip V1.1 16.68in×2 (0.5m×2) 4 B138-0345-00 2.28.01.000085 Speaker V1.1...
  • Page 40 Big Foot Crush GMP Manual Part No. Code No. Name Version Qty 1 B138-0394-00 297.9.2004001B Main board V1.1 1×2 2 B138-0750-00 2.25.01000030 V1.1 1×2 3 B138-0380-00 297.9.0700002 Ticket convert board V1.1 1×2 4 B138-0388-00 2.31.00000005 Ticket dispenser V1.1 1×2 Part No.
  • Page 41 Big Foot Crush GMP Manual Part No. Code No. Name Version Qty B138-0331-00 2.28.03.010011 Amplifier board V1.1 1×2 B138-0332-00 2.33.05.000004 Audio cable V1.1 1×2 B138-0348-00 297.9.0300003 U3 mainboard V1.2 B138-0395-00 297.9.0300004 U3-MCU board V1.2 B138-0394-00 297.9.2004001B Main board V1.1 1×2 B138-0404-00 2.33.02.000014...
  • Page 42 Big Foot Crush GMP Manual Part No. Code No. Name Version Qty 1 B138-0338-00 2.28.07.000003 Audio isolator V1.1 1×2 2 B138-0406-00 2.30.00000005 Counter V1.1 2×2 B138-0333-00 2.24.02.010002 Reset button V1.1 1×2 B138-0334-00 2.24.02.030002 Settings button V1.1 1×2 B138-0335-00 2.24.02.050001 Test button V1.1 1×2...

  • Page 43: Wiring Diagram

    Big Foot Crush GMP Manual 10. WIRING DIAGRAM Android board adapter 11/26/2020...
