UNIS Elite Basketball GMP C-598 Operation Manual

Hide thumbs Also See for Elite Basketball GMP C-598:
Table of Contents

Advertisement

Quick Links

Download this manual
IMPORTANT
Operation Manual

Advertisement

Table of Contents
loading

Related Manuals for UNIS Elite Basketball GMP C-598

Summary of Contents for UNIS Elite Basketball GMP C-598

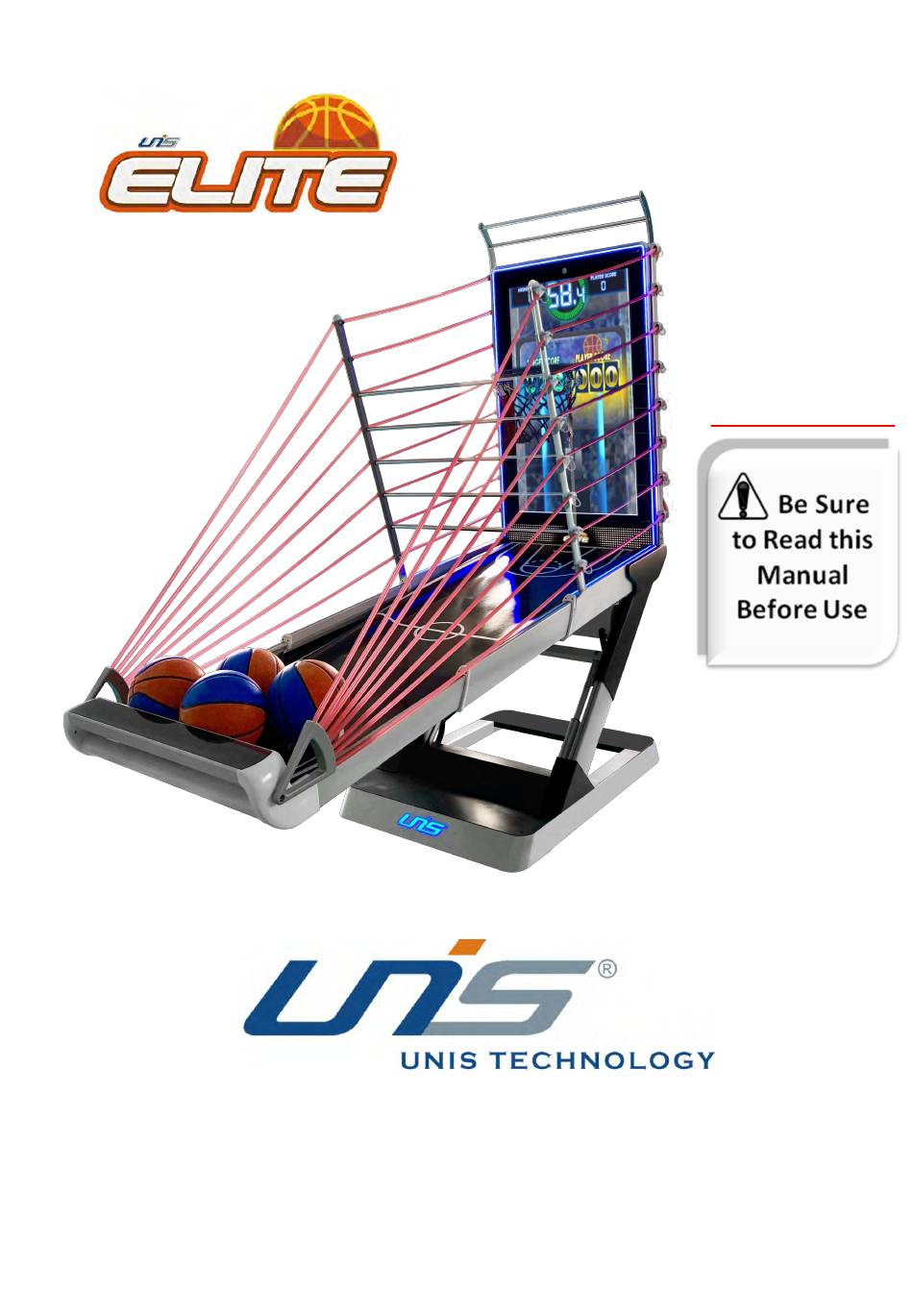

  • Page 1 IMPORTANT Operation Manual...
  • Page 2 Basketball Elite GMP Manual WE ARE HERE TO ASSIST For parts and service Have Questions? Contact us! UNIS SERVICE CENTER Tel: 972-241-4263 Email:service@unispartsandservice.com www.unispartsandservice.com When contacting Service, you will need the following information and the name of your authorized distributor.

  • Page 3: Table Of Contents

    Basketball Elite GMP Manual CONTENT IMPORTANT SAFETY INSTRUCTIONS ............... 3 1. SPECIFICATIONS ....................5 2.CONTENTS OF THE ACCESSORY KIT ..............7 3. PART NAME ......................8 4. SET UP & INSTALLATION ..................9 5. HOW TO PLAY ...................... 17 6. GAME OPTION ..................... 21 7.

  • Page 4: Important Safety Instructions

    Basketball Elite GMP Manual Thank you for purchasing Basketball Elite GMP. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 5 Basketball Elite GMP Manual High Voltage and Shock Hazard: High voltage can cause electric shock. Turn off/unplug power before servicing. High Temperature Hazard: This part may cause scalding. Do not touch. Surface may be hot. No Touching Hazard: This part may be hot or can cause electric shock. Do not touch.

  • Page 6: Specifications

    Basketball Elite GMP Manual 1. SPECIFICATIONS Rated power supply: AC110V 50/60Hz; AC220V 50/60Hz Min. Power consumption: 180W Max. Power consumption: 270W Dimension: W31.97×D96.85×H97.6 in W812 ×D2460 ×H2480 mm Weight：Approximately 396.83 lb/ 180 kg Part No: B137 Model No: C-598 NOTICE: After turning off the game, please wait at least 1 minute before restarting again.
  • Page 7 Basketball Elite GMP Manual Packing Size:W30.7×D55×H34.65 in W780 ×D1396 ×H880 mm Note: Game specifications are subject to change without notice. You can help protect the environment! Please remember to respect the local regulations: hand in the non-working electrical equipments to an appropriate waste disposal center.

  • Page 8: Contents Of The Accessory Kit

    Basketball Elite GMP Manual 2.CONTENTS OF THE ACCESSORY KIT Open the package and make sure all the items are included: Part No. Code Name SPEC Picture 3×16AWG 1 B137-801-000 2.33.01.010020 Power cord 1.8M Φ5×20mm 2 B137-422-000 2.19.01.000012 Fuse T5A 250VAC 3 B137-443-000 4.10.000023 Basketball...

  • Page 9: Part Name

    Basketball Elite GMP Manual 3. PART NAME Key Components Camera Monitor Hoop Ball Track Ball Rope Touch Screen/ Control Panel Base Assembly Control Panel: Enter Next Prev 12/7/2020...

  • Page 10: Set Up & Installation

    Basketball Elite GMP Manual 4. SET UP & INSTALLATION NOTICE We do not recommend using power tools as they may cause damage. This product is an indoor game machine. Do not install outdoors.  Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid. ...
  • Page 11 Basketball Elite GMP Manual 4.3 Play Zone This machine requires space for playing and for maintenance as shown below. Leave space around the game upon installation: Service area: 20 in Service area Play area NOTICE Your unit must be leveled to operate properly. 12/7/2020...
  • Page 12 Basketball Elite GMP Manual 4.4Machine Installation Step 1 Utilize Allen wrench to tighten 4 screws to fasten the Top baffle to the Monitor Assembly. Monitor Assembly Name Top baffle Hexagon socket flat Name round head screw Spec. M6X12 Top baffle Step 2 Lift the Monitor to the vertical position as shown below.
  • Page 13 Basketball Elite GMP Manual Step 3 Install Hoop. Utilize Allen wrench to tighten 4 screws. Hexagon socket flat Name round head screw Spec. M6X12 Hoop Screw Step 4 Loosen 2 quick screws to extend the Ball track plate. Tighten the screw back after extending the Ball track.
  • Page 14 Basketball Elite GMP Manual Step 5 Utilize Allen wrench to tighten 4 screws to fix the Ball guard assembly to the Ball track inside. Hexagon socket flat Name round head screw Spec. M8X25 Ball guard assembly Ball track Step 6 Utilize Allen wrench to tighten screws to secure the Triangle plate and Rope back plate.
  • Page 15 Basketball Elite GMP Manual Step 7 Locate the Ball track bottom side. Utilize Handle nut to adjust Ball track plastic. Ball track plastic Handle nut Step 8 Power on the machine. Select game and press to enter the game. Note: This process should be carried out every time after power on the machine. Prev Enter Next...
  • Page 16 Basketball Elite GMP Manual 4.5 Network Linking Instruction Note: Before process this step, machine need to install Antenna and update system. Please refer to Appendix 1. Step 1 For IOS user, please download “Exergames” APP on App Store. For Android user, please download this app to your phone at the link below: http://us.elite.shiyugame.com/views/Exergames.apk .
  • Page 17 Basketball Elite GMP Manual 4.6 Game Update Instruction 1. Long press button for 10 seconds to enter Game settings, select “Exit Game” to enter Game list. 2. Select Game management icon. Press Password “8888” to confirm. Password: 8888 3. Select and press to update. 12/7/2020...

  • Page 18: How To Play

    Basketball Elite GMP Manual 5. HOW TO PLAY Notice: This machine has three game modes: Game Mode, Fitness Mode and Match Mode. Game Mode appears when machine version is set to “Offline”; Fitness Mode and Match Mode appear when machine version is set to “Online”;...
  • Page 19 Basketball Elite GMP Manual 1. Touch button to start and choose a mode. 2. Game Mode has 4 rounds. Each round requires the player to shoot the balls in a limited time to reach the target score and pass the stage. 2.1 Round 1: Shoot balls in limited time to reach the target score to pass the stage.
  • Page 20 Basketball Elite GMP Manual 2.4 Round 4: There is a scoring area with different points. When you field the goal, you get the point in the scoring area where the basketball in the monitor is on. 2.5 Ranking List shows the player’s local games ranking, challenge stage and score. 3.
  • Page 21 Basketball Elite GMP Manual 3.2 In the Endless Challenge, player can shoot the ball without any time limit. Hold stop the game. 3.3 The game records the shots, real-time movement status, etc, and finally summarizes the player's physical test result. 4.

  • Page 22: Game Option

    Basketball Elite GMP Manual 6. GAME OPTION Locate Control panel. Long press button for 10 seconds to enter Game settings. Next Enter Prev Options Status Description Select offline to play Game mode; Select Online to play Version Offline/Online Fitness and Match mode, need to connect network.

  • Page 23: Troubleshooting

    Basketball Elite GMP Manual 7. TROUBLESHOOTING 7.1 Common Problem Please confirm that all connectors fit tightly. Symptom Possible Cause Recommended action Low volume Raise the volume. Connector loose. Check connector. Speaker fault. Check speaker. No sound Reconnect the audio cable or change Audio cable problem.

  • Page 24: Maintenance & Inspection

    Basketball Elite GMP Manual 7.2 System Recovery Operation (NOTE: Do not disconnect power during this process.) 1. Turn off the game. Remove the recovery stick from the holder. (Note: This process may take up to 30s) 2. Turn game on. Insert the recovery stick into the port of the Mainboard. Note: Don't insert the recovery stick into your Mainboard while is powering on the machine.
  • Page 25 Basketball Elite GMP Manual 8.3 Rope Replacement Instruction 1. Remove Triangle plate screws. Remove the top and the bottom side rope nut of the Rope back plate. Remove all the rope out. Screw 2. Place a new rope through to the Rope back plate bottom side. 3.
  • Page 26 Basketball Elite GMP Manual 5. Utilize Plastic ball to secure Rope. Pull the Rope as picture shown to fasten the rope. Rope Plastic ball 8.4 Machine Cleaning Instruction 1. Turn off the machine. Utilize non-woven fabric with distilled water to clean the monitor,control panel and ball track plastic.

  • Page 27: Overall Construction

    Basketball Elite GMP Manual 9. OVERALL CONSTRUCTION 9.1 Base Assembly Part No. Code No. Name Version Qty 1 B137-120-001 202.1.2003.015 Front cover plate 2 B137-119-001 202.1.2003.014A LOGO plate 3 B137-190-000 206.1.2003.002 LOGO light plate 4 B137-121-000 202.1.2003.016 Middle cover plate 5 B137-163-001 202.1.2003.058 Base metal plate 6 B137-432-000 2.51.00.010001...
  • Page 28 Basketball Elite GMP Manual Part No. Code No. Name Version Qty 11 B137-151-001 202.1.2003.046A Rocket switch plate 12 B137-164-001 202.1.2003.059A R base plate 13 B137-166-001 202.1.2003.061A Middle base plate 14 B137-118-000 202.1.2003.013 R pin connect plate 15 B137-437-000 2.51.05.040012 Push rod 16 B137-193-002 206.1.2003.005 L cover 17 B137-125-003 202.1.2003.020...
  • Page 29 Basketball Elite GMP Manual Part No. Code No. Name Version Qty 36 B137-167-001 202.1.2003.062A L base plate 37 B137-115-000 202.1.2003.010 L base connect plate 38 B137-117-000 202.1.2003.012 L pin connect plate 39 B137-187-000 203.1.2003.003 Light strip support plate 40 B137-189-002 203.1.2003.005 Middle support plate 9.2 Hoop&Monitor Assembly 12/7/2020...
  • Page 30 Basketball Elite GMP Manual Part No. Code No. Name Version 1 B137-110-003 202.1.2003.005 Hoop 2 B137-109-002 202.1.2003.004 Hoop plate 3 B137-105-000 2.60.00071001 Shakeproof screw 4 B137-111-003 202.1.2003.006A Sensor plate 5 B137-108-001 202.1.2003.003 Hoop bracket 6 B137-107-000 202.1.2003.002 Hoop fixing plate 7 B137-182-002 202.1.2003.077 Sensor cable tube 8 B137-106-001 202.1.2003.001...
  • Page 31 Basketball Elite GMP Manual Part No. Code No. Name Version Qty 26 B137-157-003 202.1.2003.052 Monitor frame top plate 27 B137-147-001 202.1.2003.042A Camera plate 28 B137-144-001 202.1.2003.039A Shakeproof screw plate 29 B137-145-001 202.1.2003.040A Buckle 30 B137-405-000 2.11.07.040029 Camera 31 B137-139-001 202.1.2003.034A Top frame plate 32 B137-161-000 202.1.2003.056 M6 T type plate...
  • Page 32 Basketball Elite GMP Manual 9.3 Ball Track Assembly Part No. Code No. Name Version Qty 1 B137-134-002 202.1.2003.029A Ball track front cover plate 2 B137-132-002 202.1.2003.027A Ball track front plate 3 B137-133-002 202.1.2003.028A Ball track pressing plate 4 B137-196-000 206.1.2003.008 Control panel R inner plate 5 B137-130-002 202.1.2003.025 Control panel R connect plate 6 B137-168-000 202.1.2003.063 T type plate...
  • Page 33 Basketball Elite GMP Manual Part No. Code No. Name Version 13 B137-207-000 206.1.2003.019 R track protective plate(L) 14 B137-434-000 201.01.009004 Handle screw(adjust) 15 B137-161-000 202.1.2003.056 M6 T type plate 16 B137-433-001 201.01.009003 Handle screw 17 B137-199-000 206.1.2003.011 R track protective plate(S) 18 B137-137-002 202.1.2003.032 Ball track back plate 19 B137-210-000 206.1.2003.022...
  • Page 34 Basketball Elite GMP Manual Part No. Code No. Name Version Qty 38 B137-208-000 206.1.2003.020 L track protective plate(L) 39 B137-181-000 202.1.2003.076 Block ball plate 40 B137-180-000 202.1.2003.075 Rope back plate 41 B137-135-000 202.1.2003.030 Ball track connect plate(M) 1.1 12/7/2020...
  • Page 35 Basketball Elite GMP Manual 9.4 Decal Part No. Code No. Name Version Qty 1 B137-712-000 205.1.2003.001 Monitor decal 2 B137-714-001 205.1.2003.003/1 LOGO decal 3 B137-713-000 205.1.2003.002 Ball track plastic 1.1 4 B137-719-000 205.1.2003.008 Wiring decal 1.1 1set Part No. Code No. Name Version Qty 1 B137-724-000 205.1.2003.013...
  • Page 36 Basketball Elite GMP Manual 12/7/2020...
  • Page 37 Basketball Elite GMP Manual Part No. Code No. Name Version Qty 1 B137-702-000 2.56.00.000036 High voltage label(s) 2 B137-710-000 2.56.00.000097 Network label 3 B137-701-000 2.56.00.000016 Power supply label 4 B137-708-000 2.56.00.000080 Fuse label(T5A/125V) 5 B137-707-000 2.56.00.000074 Fuse label(T5A/250V) 6 B137-705-000 2.56.00.000071 110V decal 7 B137-706-000 2.56.00.000072 220V decal...
  • Page 38 Basketball Elite GMP Manual 9.5 Electrical Component Part No. Code No. Name Version 1 B137-405-000 2.11.07.040029 Camera B137-417-000 2.28.01.000005 Speaker B137-412-000 2.33.05.000010 Audio cable 3 B137-431-000 2.65.03.000286 Chain 4 B137-428-000 2.20.02.015017 BG5050B light strip 7.87in(200mm) 5 B137-404-000 297.9.1911001 Touch button 6 B137-427-000 2.20.02.018004 Light strip(blue) 133.85in(3400mm)
  • Page 39 Basketball Elite GMP Manual Part No. Code No. Name Version Qty 1 B137-409-000 2.16.02.000115 Power supply(12V) 2 B137-421-000 2.17.14.000148D Fuse board(green holder) 1.1 3 B137-403-000 297.9.0300007A U6 mainboard B137-406-000 4.13.00000007 Recovery stick B137-102-000 2.60.00064000 Recovery stick plate 5 B137-401-001 297.9.2004001B Mainboard 6 B137-101-000 2.60.00042000A Wiring box...

  • Page 40: Wiring Diagram

    Basketball Elite GMP Manual 10. WIRING DIAGRAM 12/7/2020...
  • Page 41 Basketball Elite GMP Manual APPENDIX 1 Wi-Fi Antenna Installation Instruction Before processing the following steps, assure you have the following kits. Antenna Connector (5.13.06000012) (2.33.02.030016) 1. Power off the machine. Remove the holder. 2. Route the Connector to the Monitor back side through the hole. Connect Connector to the Mainboard as shown below.
  • Page 42 Basketball Elite GMP Manual 3. Connect Connector to the Antenna. Place Antenna to the Ball track bottom side plate. Antenna Antenna Antenna 12/7/2020...
  • Page 43 Basketball Elite GMP Manual System Update &Recovery Instruction(With New Recovery stick) Note: This process may take up to 5 minutes. 1. Power off the machine. Remove the holder. 2. Turn machine on. Insert the Recovery stick into the port of the Mainboard. Note: Don't insert the Recovery stick into Mainboard while is powering on the machine.
  • Page 44 Basketball Elite GMP Manual 4. The machine will restart automatically and start to update. (NOTE: Do not disconnect power during this process.) 5. Once system update is finished and this screen appear, please restart the machine. Remove the Recovery stick from the Mainboard. 6.
  • Page 45 Basketball Elite GMP Manual FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
