Summary of Contents for UNIS BEAT THE GOALIE

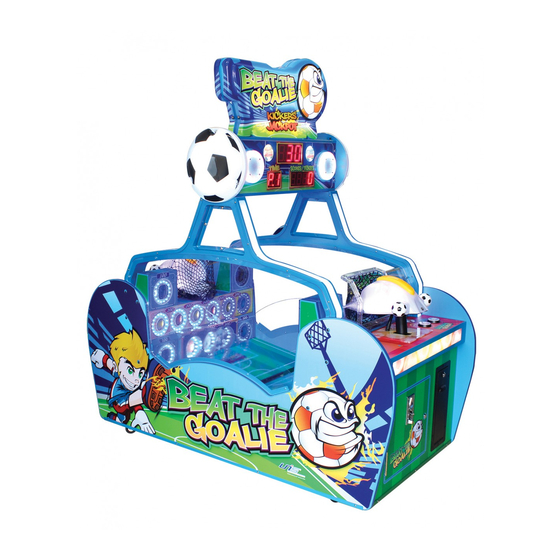

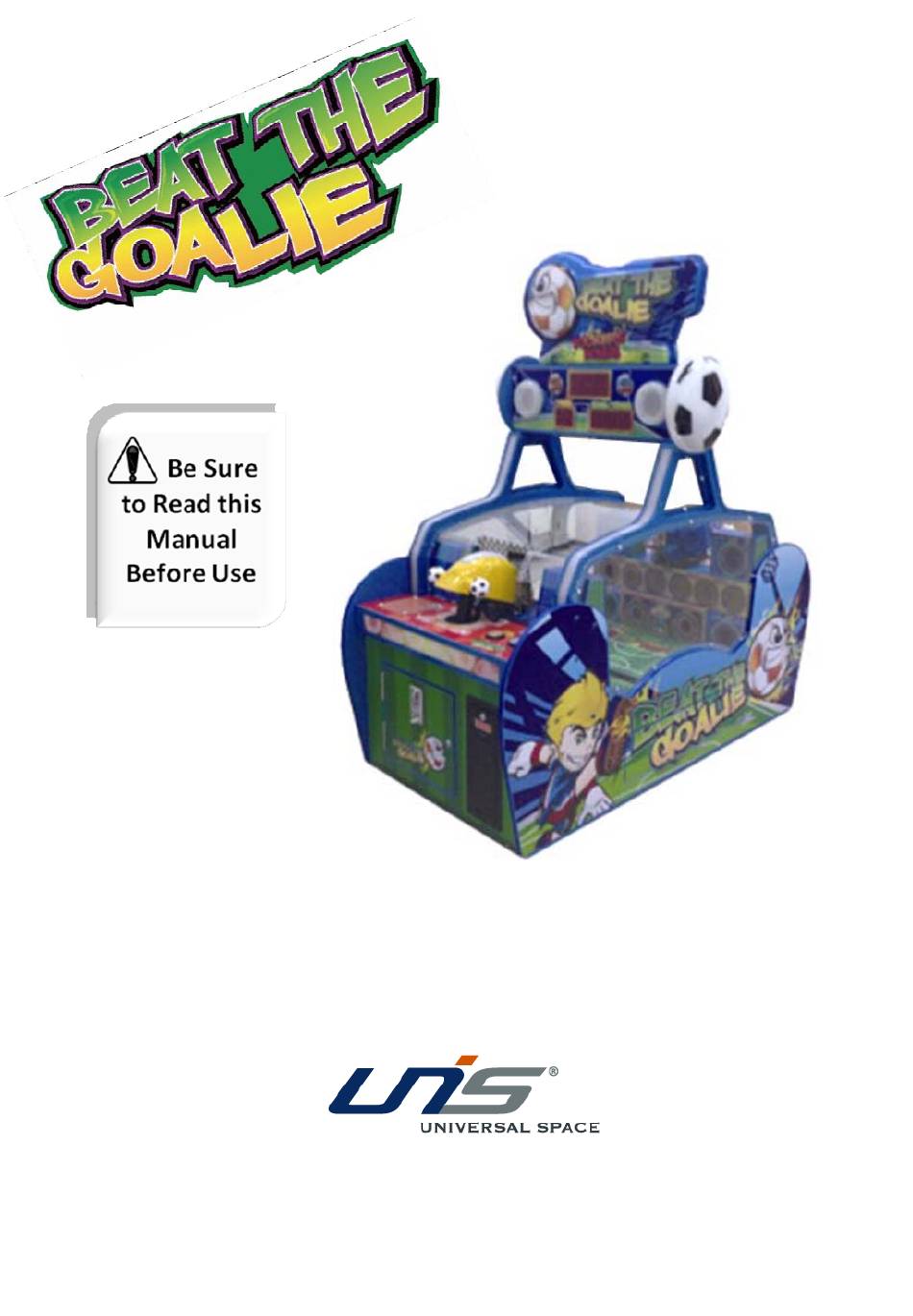

  • Page 1 Operation Manual www.universal-space.com...

  • Page 2: Table Of Contents

                                                                                     ...

  • Page 3: Important Safety Instructions

    Beat the goalie Rev1.0 Thank you for purchasing BEAT THE GOALIE. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 4                                                                                  ...

  • Page 5: Specifications

    Beat the goalie Rev1.0 1. SPECIFICATIONS Rated power supply: AC110V 50/60Hz Min. Power consumption: 100W Max. Power consumption：170W Dimensions： W1760×D950×H1895 (mm) Weight： Approximately 205kgs NOTICE: After turning off the game, please wait at least 1 minute before restarting again. Note: Game parameters are subject to change without notice.

  • Page 6: Package Contents

                                                                                     ...

  • Page 7: Part Name

    Beat the goalie Rev1.0 3. PART NAME Marquee Speaker Score hole Button Goalie plexi. Coin mech. Tik. dispenser  ...

  • Page 8: Set Up & Installation

                                                                                     ...
  • Page 9 Beat the goalie Rev1.0 4.2 Level Adjustment Install this machine on a flat surface. Adjust levers to lift casters off the ground to level the game If the game is installed on an unsuitable floor, it could cause game malfunction.
  • Page 10                                                                                  ...

  • Page 11: How To Play

    Beat the goalie Rev1.0 5. HOW TO PLAY Step 1: Insert coin(s). Step 2: Select game mode. Single player: No double Bonus. Player battle: Double Bonus  ...
  • Page 12                                                                                  ...
  • Page 13 Beat the goalie Rev1.0 6. GAME OPTIONS Item Content Coins per game Free Play time 120s Demo 180s music 240s Memory   Content Item 3000 3500 4000 Bonus 4500 Score 5000 6000 7000 9000 Continue to play Ticket error All attendant...
  • Page 14                                                                                  ...
  • Page 15 Beat the goalie Rev1.0     Input Content Input Content Input Content Input Content Input Content 1# Ball 2# Single I1 1# hole 1 1# hole 9 2# hole 7 sensor select btn 1# Ticket 2# Double I2 1# hole 2 I10 1# hole 10 I18...
  • Page 16                                                                                  ...

  • Page 17: Error Message And Recovery

    Beat the goalie Rev1.0 7. ERROR MESSAGE AND RECOVERY 7.1 Problem Analysis and Solution *Please confirm whether every connector connected tightly. Problem Cause Countermeasures Please check power supply suitable for the Power is not supplied. machine or not. Machine no...

  • Page 18: Maintenance & Inspection

                                                                                     ...

  • Page 19: Overall Construction

    Beat the goalie Rev1.0 9. OVERALL CONSTRUCTION 9.1 Mechanical Part 9.1.1 Assembly 1                                                      ...
  • Page 20                                                                                  ...
  • Page 21 Beat the goalie Rev1.0 9.1.2 Assembly 2                                                     Part No. Code Name Spec. B121-104-000 20211410078...
  • Page 22                                                                                  ...
  • Page 23 Beat the goalie Rev1.0 9.1.4 Assembly 4 Part No. Code Name Spec. B121-710-000 20511410010 Up score board decal B121-713-000 20511410013 Target score plexi. B121-712-000 20511410012 L down score plexi. decal B121-185-000 20211410063 Middle score base plate Q235 B121-184-000 20211410062 Down score base plate...
  • Page 24                                                                                  ...
  • Page 25 Beat the goalie Rev1.0 9.1.6 Assembly 6  ...
  • Page 26                                                                                  ...
  • Page 27 Beat the goalie Rev1.0 9.1.7 Assembly 7 Spec. Part No. Code Name B121-457-000 26504000111 Push ball synchronous belt B121-134-000 20211410022 Driver wheel Aluminium alloy B121-133-000 20211410021 Driven wheel Aluminium alloy B121-131-000 29911410009 Catch ball disk Welding B121-135-000 20211410023 Ball tube A...
  • Page 28                                                                                  ...
  • Page 29 Beat the goalie Rev1.0 9.2 Electrical Part                                                                  ...
  • Page 30                                                                                  ...
  • Page 31 Beat the goalie Rev1.0                                                                        ...
  • Page 32                                                                                  ...
  • Page 33 Beat the goalie Rev1.0 9.3 Decal Part                                                   Part No. Code Name B121-705-000 20511410005 L marquee...
  • Page 34                                                                                  ...
  • Page 35 Beat the goalie Rev1.0 Wiring diagram ZQJNH-PX-01  ...
  • Page 36                                                                                  ...
  • Page 37 Have Questions? Contact us! www.universal-space.com International Support Center USA Support Center Tel: +1-905-477-2823 Tel: 972-241-4263 Fax: +1-905-477-2660 Fax: 214-919-4918 Email: service@universal-space.com Email:tsnelling@unisusasupportcenter.com (Contact: Clement Yau) (Contact: Tim Snelling)
