CDB4272
3. CDB .EXE USER'S GUIDE
427X
3.1

Main Window

The main window of the CDB4272 Graphical User Interface allows the user to view and
change the configuration of the CS4272 and on-board configuration logic.
The Board Setup box contains all the controls necessary to manage clock and data routing
and formats. To apply changes to the board, the "Send Board Setup" button must be pressed
after making changes within the Board Setup box.
The CS4271/2 Setup box allows configuration of the internal registers of the CS4272. Chang-
2
es made within this box will be reflected immediately. When in I C mode, the "Update" button
will read the registers of the CS4272 and update the CS4271/2 Setup box to match.

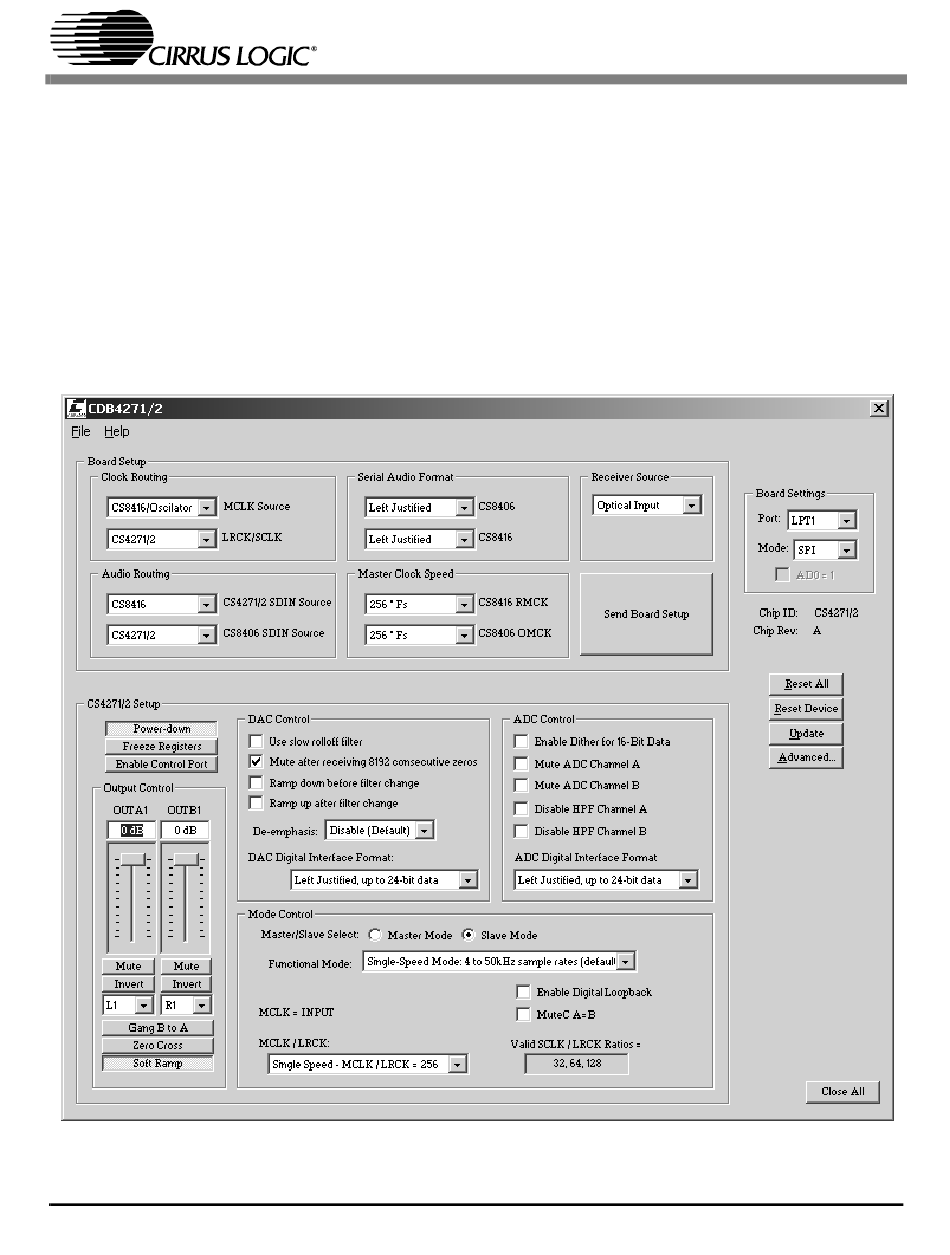

Figure 2. Main Window

Clicking the "Advanced..." button will launch a graphical register map of the CS4272.
13
