Chore-Time Endura 56555-1 Series Installation And Operator's Manual page 16

Installation

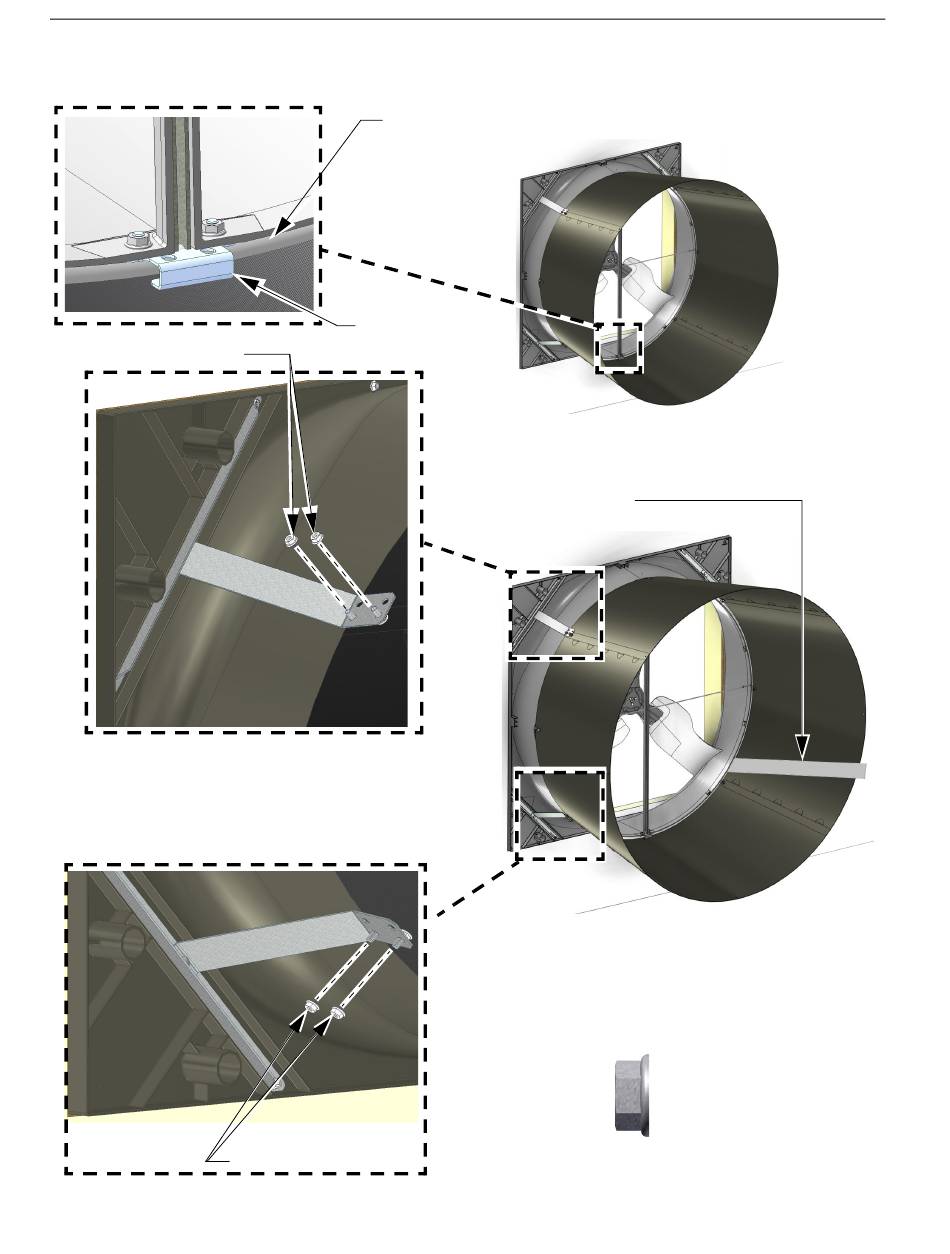

Attach the cone to the Shroud as shown below.
5/16 Flg. Nut (46764)
Use the Bolts in the Cone to attach the Cone to
the Cone Brackets. Use the Bottom set of holes
in the Cone Brackets.
16
Slip the Orifice Frame behind the Bottom Pivot Plate.
Bottom Pivot
Plate
5/16 Flg. Nut (46764)
57" Assembled & Unassembled Direct Drive Endura® Fan
If necessary, slip a thin piece of metal between
the Shroud and Cone and work it around the
Cone to get it on.
(46764) 5/16 Flg. Nut
MV2491B
