How to set up the hardware

Important:
Before you begin, please check the insert card that comes with the SensorTile.box blister pack. If it doesn't show a procedure
for battery connection similar to the steps below, then your device is supplied with the battery already connected to the board.
In this case, you only need to connect the device via USB to wake it up the first time.
If the insert card has a similar procedure to the steps below, your device is supplied with the battery disconnected and you
should follow this procedure to connect the battery and wake the device up.
Step 1. Remove the SensorTile.box contents from its package.
Step 2. Unscrew the shroud cover.
You should have the following items:
–
–
Step 3. Slide the male battery connector vertically into the female connector on the board.
You will hear a light click when the connector is attached correctly.
Step 4. Re-position the circuit with the battery below it and the close the shroud with one of the following types
of lid:
–
–
Step 5. If necessary, charge the battery via a USB cable.
The blinking of the red LED indicates the battery charging status.
UM2580 - Rev 5
An evaluation board in a plastic shroud
A LiPo battery

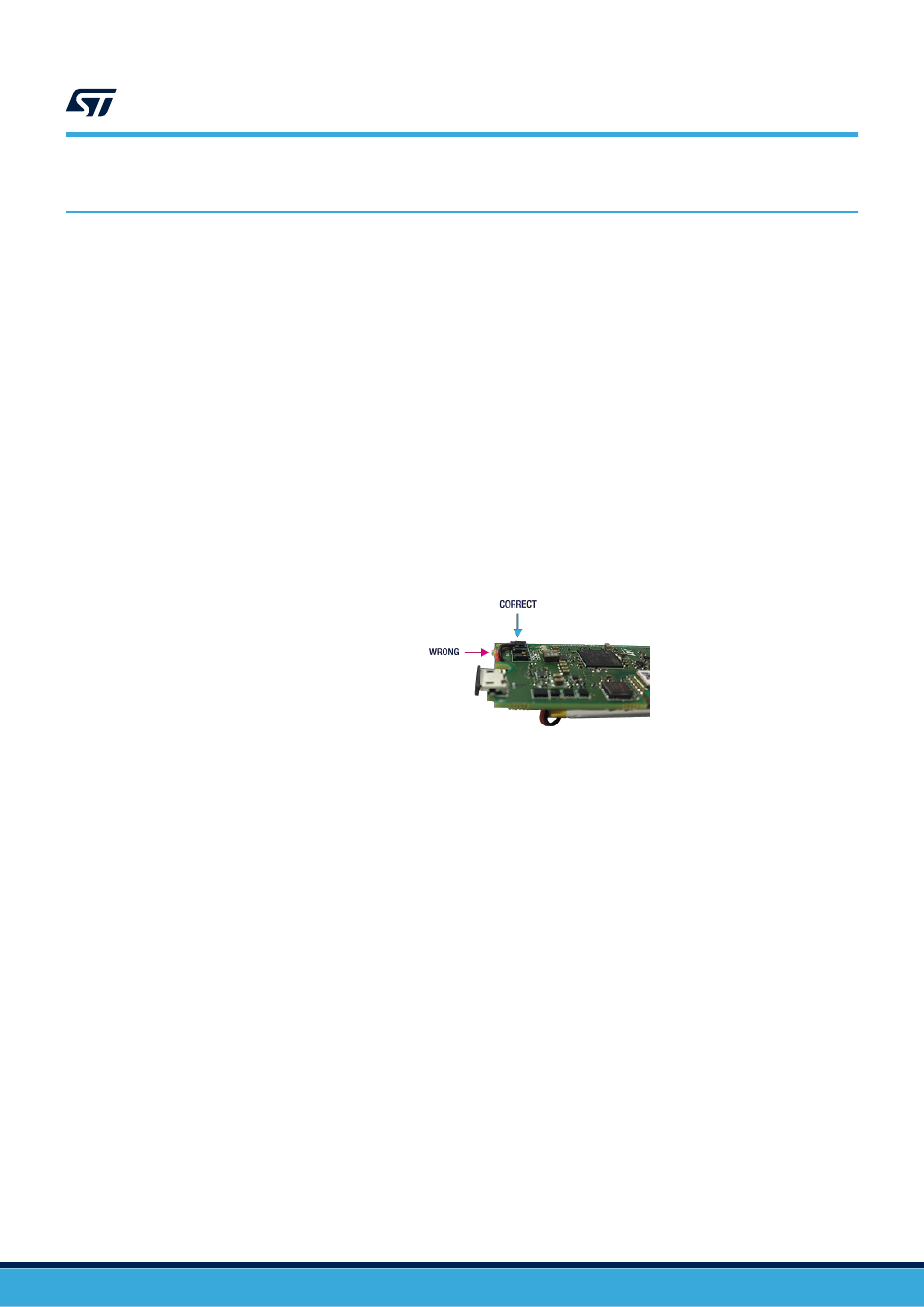

Figure 2.
with flanges
without flanges
STEVAL-MKSBOX1V1 battery connection
UM2580
How to set up the hardware
